ADJ's Hydro IP Tester is a mobile service tool specifically designed to assess the integrity of compatible IP-rated lighting fixtures, including ADJ's Hydro series fixtures.

View on ADJ site

Overview

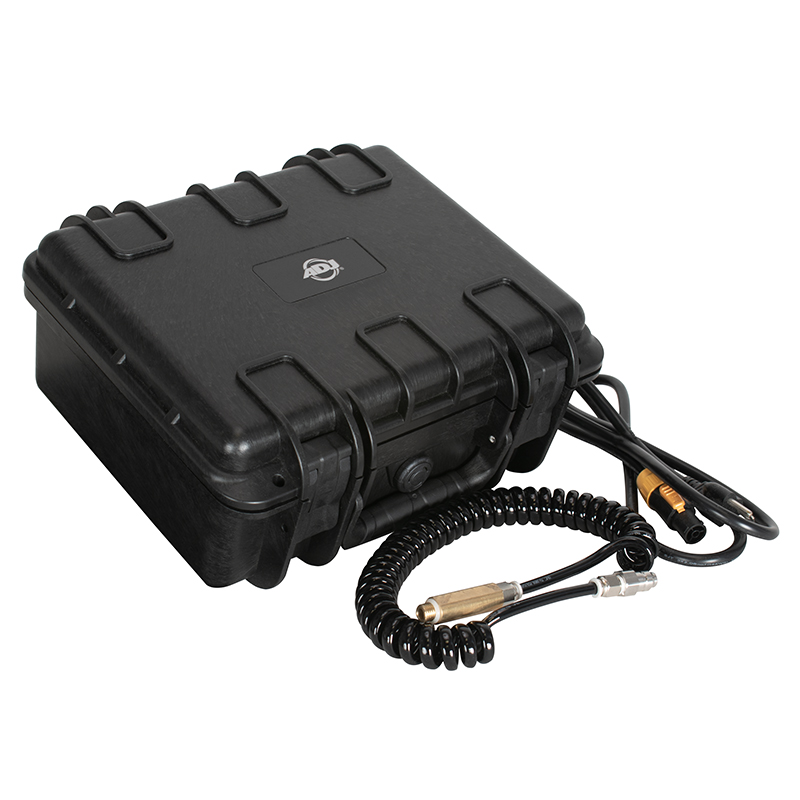

ADJ's Hydro IP Tester is a mobile service tool specifically designed to assess the integrity of compatible IP-rated lighting fixtures, including ADJ's Hydro series fixtures. This versatile device is capable of both vacuuming and detecting pressure leaks, making it ideal for use after a fixture has been opened for tasks such as lamp replacement, gobo replacement, or regular maintenance. The Hydro IP Tester boasts several impressive features. It comes in a durable flight case that is easy to transport. The user-friendly interface features a 6-button LCD control menu display, allowing for effortless navigation. Progress bars on the display indicate the remaining test time, ensuring efficient testing. The Micro SD card slot provides a convenient means to update the testers software. Included with the Hydro IP Tester are a 3-5 ft (0.9-1.5m) coiled air hose with a quick-connect fitting, a threaded M12 brass nozzle with a push-to-connect fitting, two M12 x 1.5 nylon bolts, a 6ft (1.8m) USB cable, a 5ft (1.5m) IP65 Locking Power Cable, a Micro SD card, and a durable, easy-to-carry case.

Specifications

Features:

  • Mobile IP Fixture Vacuum and Pressure Tester
  • Compatible with any IP Fixture such as ADJ's Hydro Series
  • Preloaded ADJ's IP Rated Lighting Fixture Test Presets
  • Manual and Auto Testing Modes
  • Easy to navigate LCD Control Menu Display
  • Micro SD Card Slot for updating Hydro IP Tester Device
  • Easy To Carry Rugged Case

Control & Connections:

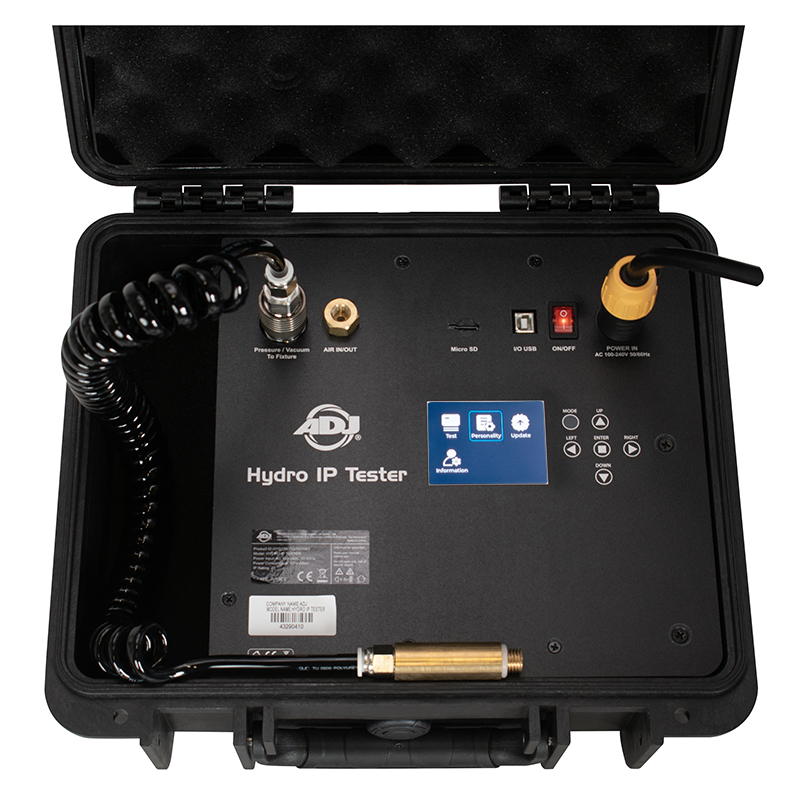

  • LCD Control Menu Display
  • Air In/Out Vent
  • Quick-Release Air Hose Fitting
  • Micro SD Card Slot
  • USB B Port
  • IP65 Locking Power In

Dimensions & Weight:

  • Length: 419.1mm
  • Width: 165.1mm
  • Vertical Height: 362mm
  • Weight: 7.0kg

Electrical:

  • AC 100-240V - 50/60Hz
  • 40W Max Power Consumption
