ADJ Mirage Par H IP — image 1
ADJ

Mirage Par H IP

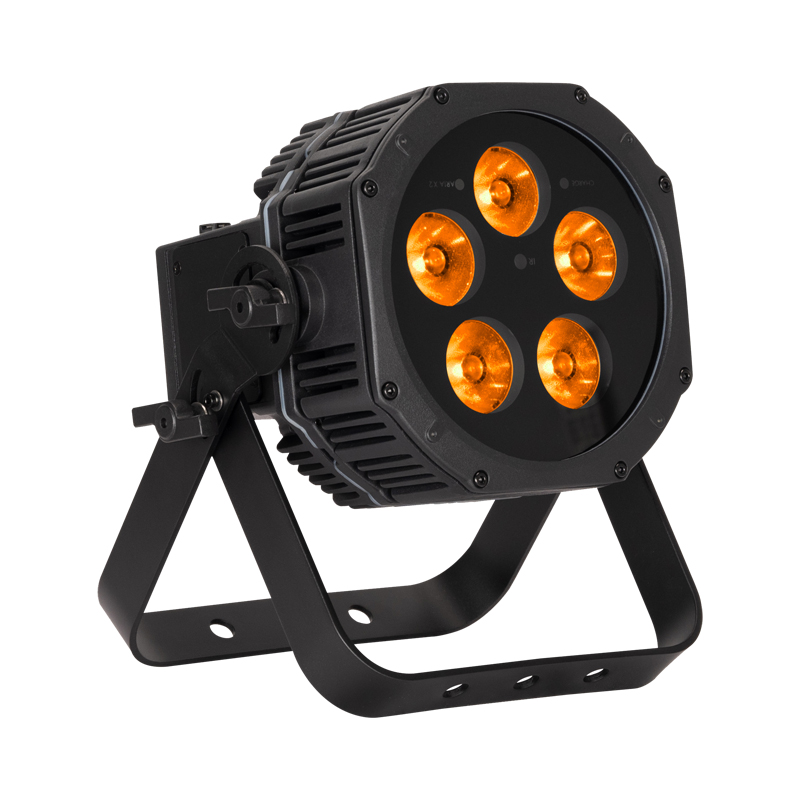

The Mirage Par H IP LED fixture is a versatile, high-performance lighting solution, perfect for events, installations, and stage productions.

View on ADJ site

Overview

The Mirage Par H IP LED fixture is a versatile, high-performance lighting solution, perfect for events, installations, and stage productions. Equipped with five 20W Hex Color RGBAL+UV LEDs, it delivers a dynamic range of color, including lime and UV for unique lighting effects. With an adjustable white color temperature from 2,300K to 9,900K, the Mirage Par H IP allows access to massive gamut of colors. This light can be powered via wall outlet or its rechargeable lithium-ion battery, providing user selected 5 to 20 hours of operation. Control options are expansive, including DMX512, Aria X2 wireless system for over the air firmware/software updates, Bluetooth, RDM and an IR remote. With a robust IP65-rated housing, it is weather-resistant, making it ideal for outdoor or indoor use. Advanced features include variable refresh rates (900Hz to 25K), six dimming modes, four dimming curves, built-in programs, and electronic strobing and full dimming, giving users complete control over intensity and effects. The Mirage Par H IP is both compact and rugged, ensuring easy setup, striking and transport. This versatile LED Par is designed for lighting professionals who need reliability, color versatility, adaptable power options and all-weather protection in one durable package.

Video

Specifications

Features:

  • 5 Pixel, Hex Color LED (RGBAL+UV) LED Par
  • Battery or Wall Powered
  • Battery operation can be selected by the user for durations ranging from 5 to 20 hours
  • Built-In Programs

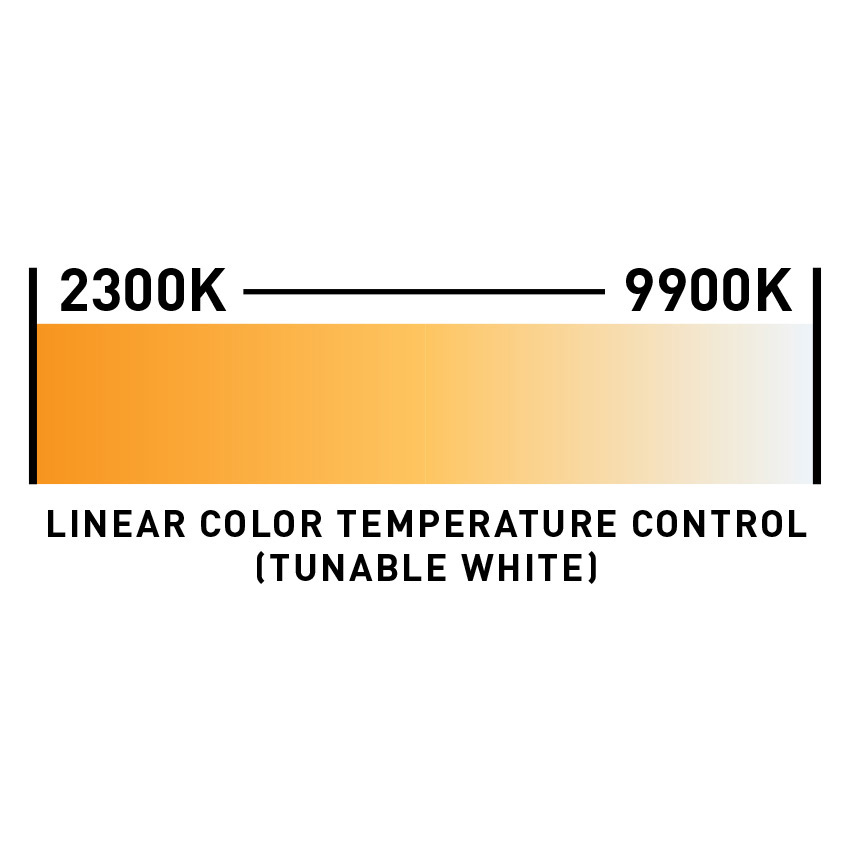

  • Variable White Color Temperature Control (2,300K ~ 9,900K)
  • User Selectable LED Refresh Rates (900Hz ~ 25K)
  • 6 User Selectable Dim Modes
  • 4 User Selectable Dim Curves
  • Electronic Strobe (0.3Hz ~ 11Hz)
  • Electronic Dimming

Source:

  • (5) 20W Hex Color RGBAL+UV LED's
  • 50,000 Hour Average Life*
  • *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Optical:

  • 2,300K ~ 9,900K White Color Temperature Range
  • 17° Beam Angle

Physical:

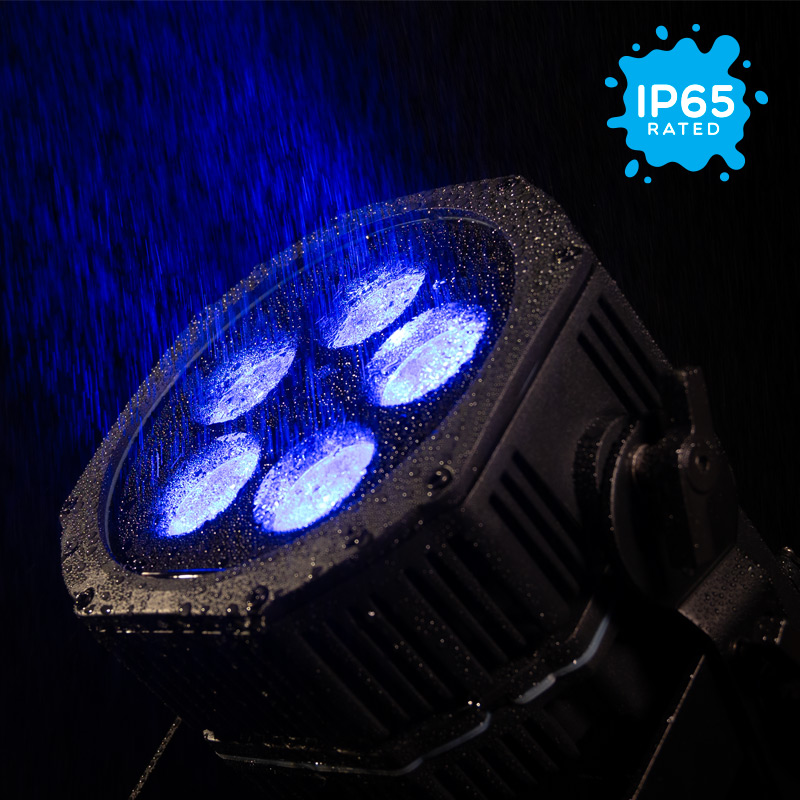

  • IP65 Housing

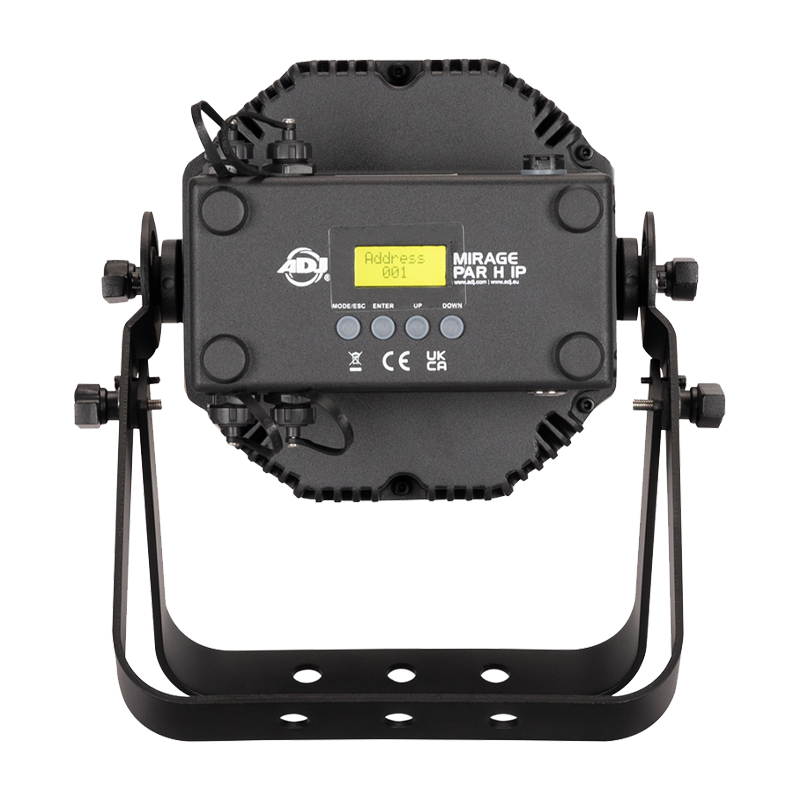

  • Digital display

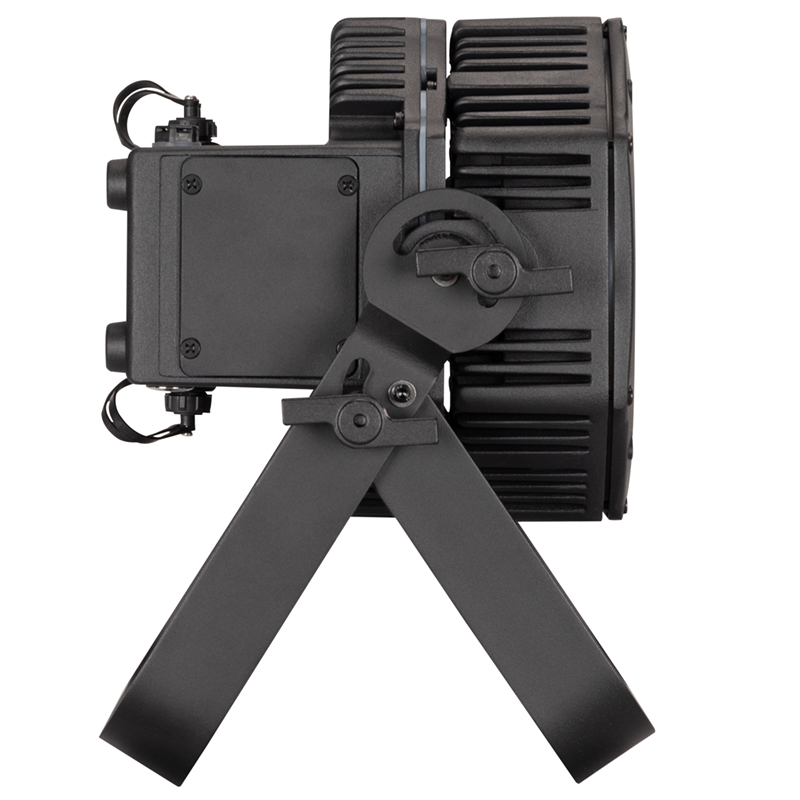

  • Adjustable, hanging / kick stand bracket

Control:

  • DMX512 and RDM Compatible
  • Aria X2 Wireless Management / DMX System

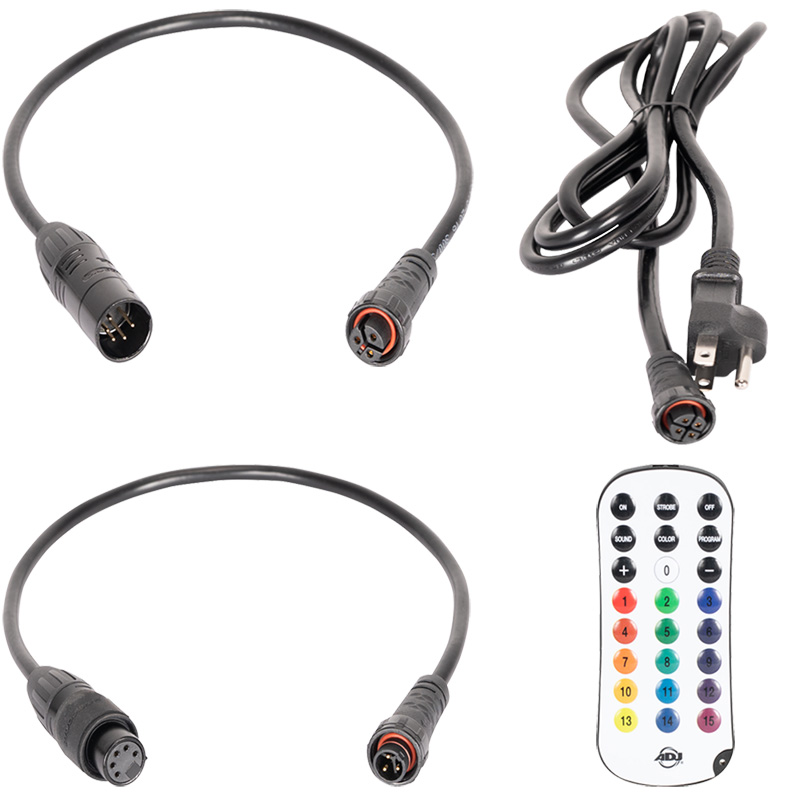

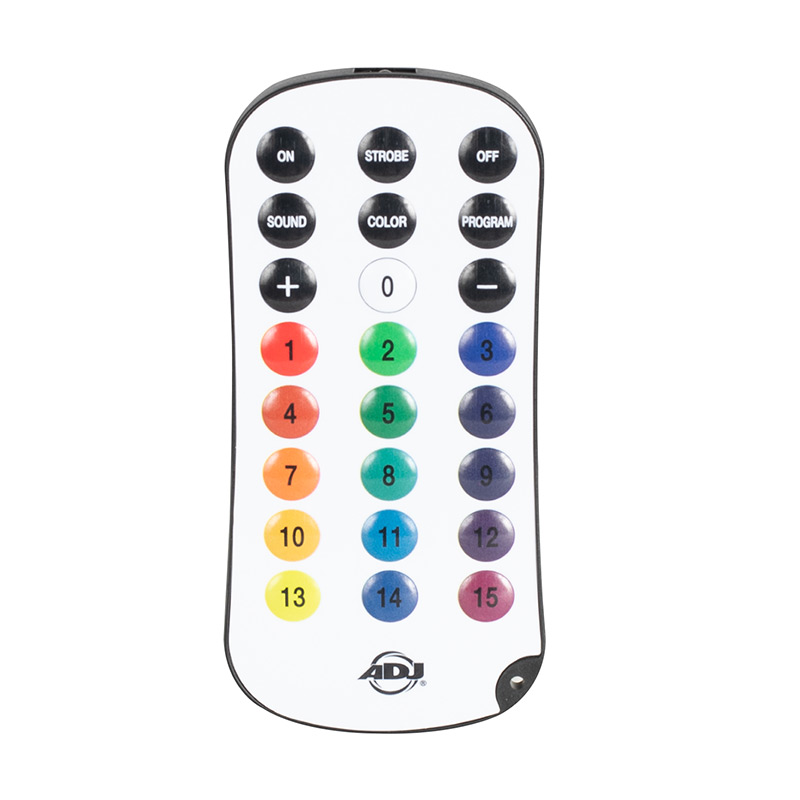

  • IR (Includes UCIR24 wireless remote)
  • (6) DMX Channel Modes (5, 6, 9A, 9B, 15 & 17 Channel modes)
  • On-board Manual Control Mode
  • Primary / Secondary Mode

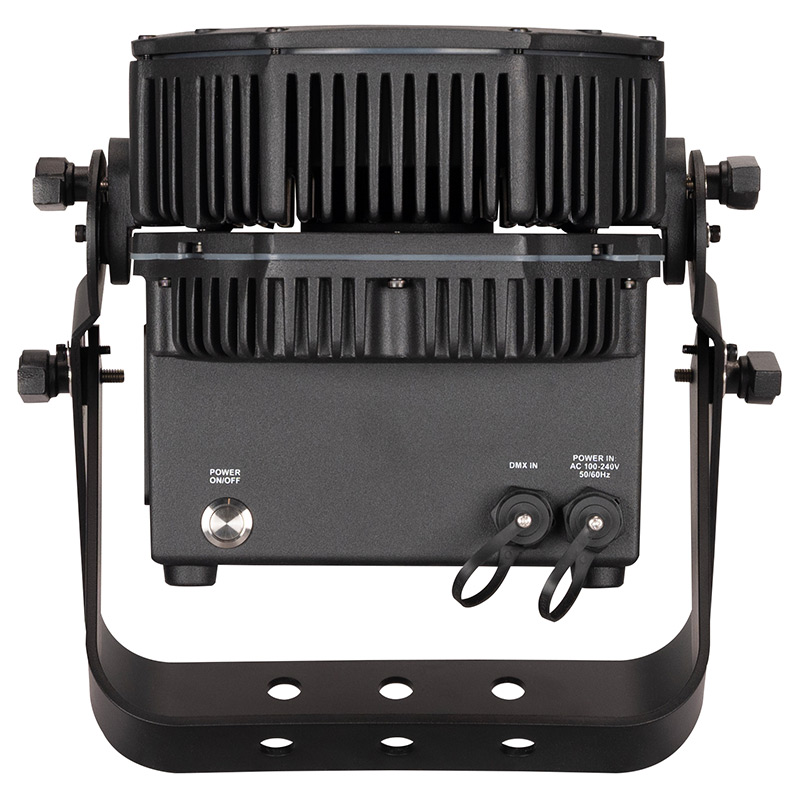

Connections:

  • 4-pin proprietary Power In/Out connections
  • 3-pin proprietary IP65 DMX In/Out connections

Dimensions & Weight:

  • Dimensions (LxWxH): 282mm x 269mm x 191mm
  • Weight: 5.4 kg

Power:

  • AC100-240V/50Hz-60Hz Input
  • 60W Power Consumption
  • Link 28 pieces @ 230VAC

Battery:

  • Rechargeable Lithium ion
  • Battery Capacity: 6,600mAh
  • Battery Voltage: 22.2V
  • Charge Time: 5 Hours (To Full)
  • Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged
  • Battery Cycles: 500

Thermal:

  • Ambient Operational Temperature: -20°C to 45°C
  • Storage Temperature: -30°C to 45°C

Certifications & IP Rating:

  • IP65
