ADJ Mirage Q6 Pak Black — image 1
ADJ

Mirage Q6 Pak Black

The ADJ Lighting Mirage Q6 Pak Black is an all-in-one event up lighting system with six (6) IP65 rated, for outdoor or indoor use, battery powered fixtures and a durable flight…

View on ADJ site

Overview

The ADJ Lighting Mirage Q6 Pak Black is an all-in-one event up lighting system with six (6) IP65 rated, for outdoor or indoor use, battery powered fixtures and a durable flight case with an on-board battery charging solution. Each Mirage Q6 IP Black fixture is powered by four (4) 10W RGBA LEDs that produce a 11-degree beam angle. The fixture is IP65 rated and is waterproof; suitable for temporary use outdoors with protection against the elements (rain, snow, dust and sand). Aria X2 Wireless Management System allows for the fixtures to communicate with a lighting controller up to 700m away. Ideal for wall washing, Mirage Q6 IP Black fixtures are all fitted with an integral carry handle and built-in feet which mean they can simply be dropped in place and are ready to go. They also feature a built-in kickstand which allows the beam to be easily angled inwards towards a wall if required. This creates a more intense wash and minimizes light spill onto the ceiling above. Each fixture has an alarm system with on/off controls. If someone picks up the fixture with the alarm system on, the fixture will make a beeping sound and strobe in red. The robust battery will operate up to 40 hours on a single color (20 hours changing colors). The battery charge time is 7 hours.

Specifications

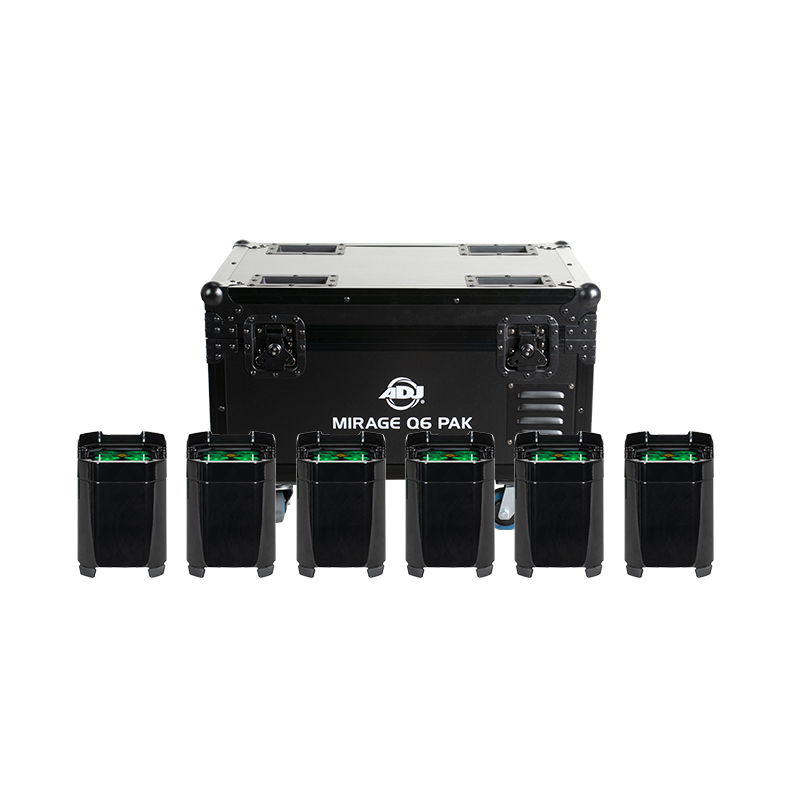

Mirage Q6 Pak includes:

  • (6) MIRAGE Q6 IP Black Fixtures

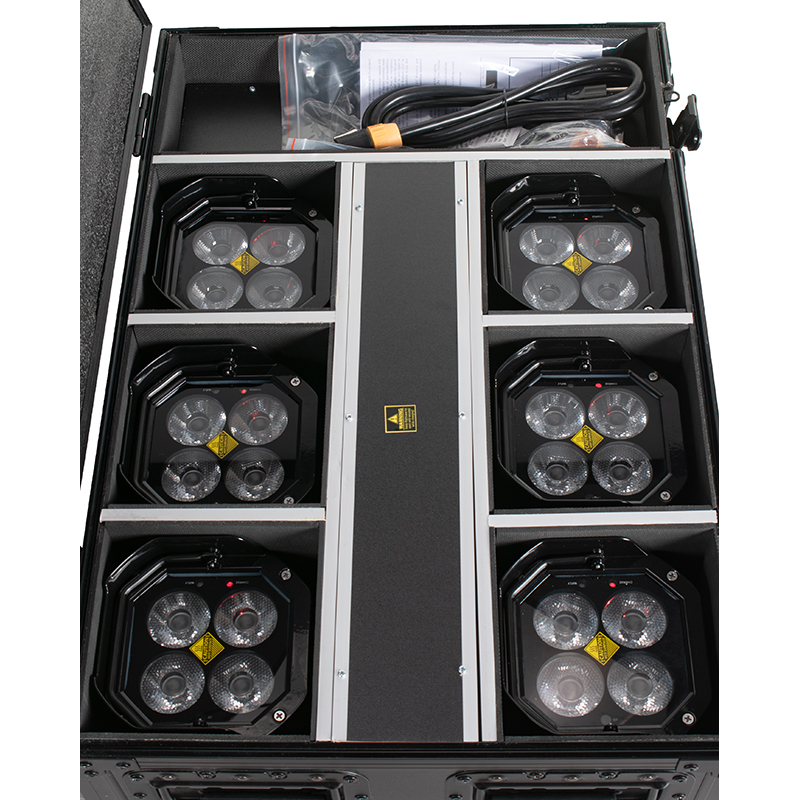

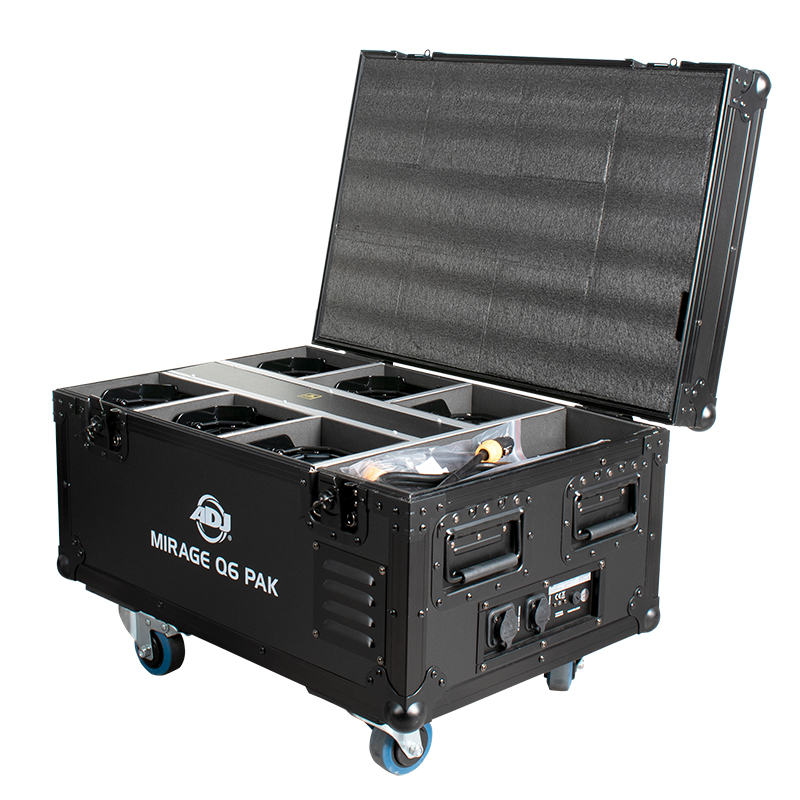

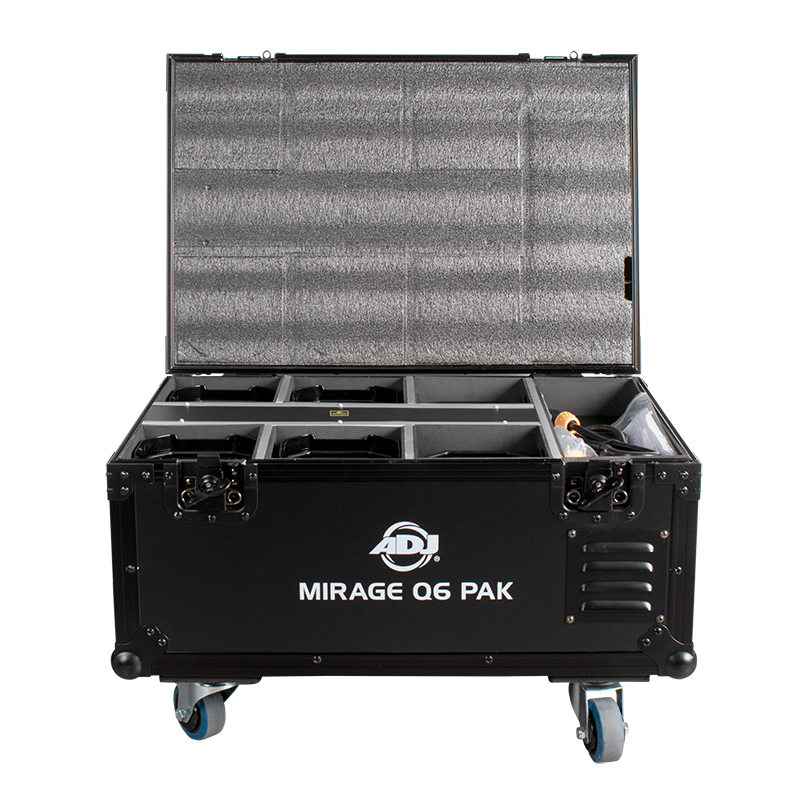

  • (1) MIRAGE Q6 FC Flight Case
  • (6) MIRAGE Q6 IPCB Charging bases and power supplies
  • (1) UC-IR Wireless Infrared Controller
  • (1) IP65 Locking Power Cable

Mirage Q6 Pak Features:

  • Houses / Transports and Charges (6) MIRAGE Q6 IP™ BLACK fixtures

Pak Electrical & Thermal:

  • Power Input: AC100VAC~240VAC, 50/60Hz
  • IP65 Power Locking Input and Output
  • Max Power Consumption: 400 Watts
  • Power Draw: 4A
  • Charge status indicator
  • 14°F to 113°F (-10°C to 45°C)

Source:

  • 4 x 10-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)
  • 50,000 Hour Average Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometrics:

  • LUX: 9903 @ 2M; 2303 @ 4M

Optics:

  • 11-degree beam angle

Control & Connections:

  • Control protocol: Aria X2 Wireless Management System
  • 11 DMX Channel modes: 4, 6, 7, 8, 9A, 9B, 10, 11, 12, 15 or 18 channels
  • Remote control: Aria X2 BLE App and UC-IR24 (Included)
  • 5 Operation modes: RGBA Dimmer Mode; Auto Run Mode (13 programs, & 1 color/fade combo mode); Static Color mode; and Aria X2 Wireless Management System
  • Contact Charging system. 6x Charging bases and power supplies included in flight case

Features:

  • IP65 Outdoor Rated
  • Built-in kickstand to angle fixture when sitting on the floor
  • 4-touch button OLED display on rear panel
  • Built-in Aria X2 Wireless Management System allows for the fixtures to communicate with a lighting controller up to 760M away
  • Aria X2 BLE App (Compatible with iPhone and iPad)
  • Battery Transceiver
  • 64 built-in Color Macros

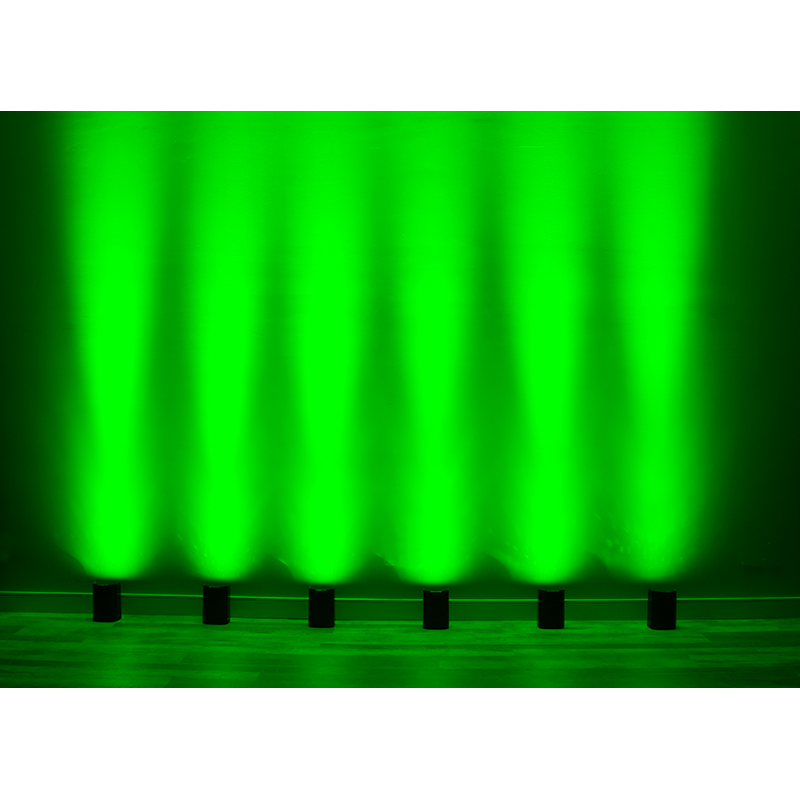

  • Variable RGBA color mixing offers a smooth, seemingly unlimited color palette - Great for Wall Washing!
  • LED pulse and strobe effect (0.2Hz-11Hz)
  • Flicker Free Operation
  • Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves
  • Run all night – No duty cycle
  • Energy Save Mode

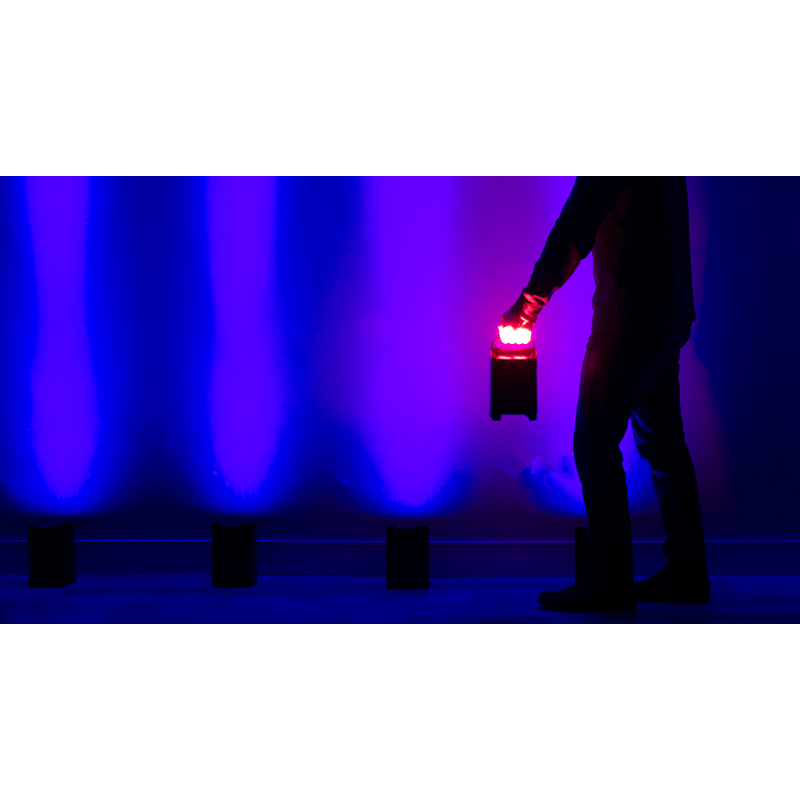

  • Built-in alarm system with On/Off
  • Battery charge indicator on each fixture
  • Die-cast aluminum housing

Battery:

  • Battery Type: Fixed lithium battery
  • Battery Energy: 162.8WH (Watt Hours)
  • Battery Weight: 0.84 kg.
  • Battery Voltage: 14.8V
  • Battery Capacity: 11000mAh (Typical Capacity)
  • Total Lithium Ion Cells: 20 pieces
  • Battery Wrap Material: PVC sleeving + highland barley paper
  • Battery Charge Time: 7 Hours
  • Battery Life: 14 hours (When color changing in Battery Saver Mode 14); 40 hours (When set to a single color in Battery Saver Mode 14) Battery Saver Mode 14 is available in software V1.03>

Dimensions & Weight:

  • Length: 143.2mm
  • Width: 143.2mm
  • Vertical Height: 211mm
  • Weight: 4.01kg
