RDM XS8
The ADJ Lighting RDM XS8 is a 19-inch rack mount, 8-way DMX and RDM data splitter.
View on ADJ siteOverview

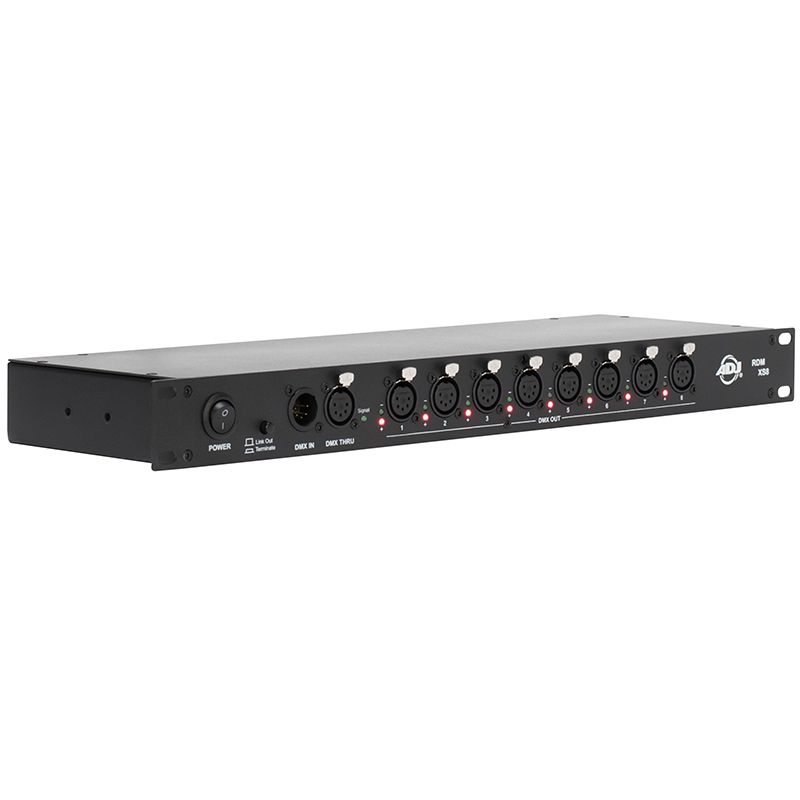

The ADJ Lighting RDM XS8 is a 19-inch rack mount, 8-way DMX and RDM data splitter. With one 5-pin input, one 5-pin thru and eight 5-pin outputs, the RDM XS8 makes running DMX cables easier and more efficient. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient installation into a 19-inch rack mount cabinet. Its slim 1U configuration includes 1x 5-pin XLR input, 1x 5-pin XLR thru, 8x 5-pin XLR outputs, plus a Link Out Termination Switch and a DMX/RDM Protocol Switch.
Video
Specifications
Protocols:
- DMX512
- RDM
Physical:
- 19 inch Rack Mount (1 rack space)
- 1x 5-pin XLR Input
- 1x 5-pin XLR Thru
- 8x 5-pin XLR Outputs
- Link Out Termination Switch
- DMX / RDM Protocol Switch
Dimensions & Weight:
- Length: 152.4mm
- Width: 482mm
- Height: 44mm
- Weight: 2.21kg
Electrical:
- AC Input: 100-230V 50/60Hz
- Power Consumption: 3.3W @ 230V
- Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
