Saber Spot RGBW
The Saber Spot RGBW is a compact Pinspot with smooth RGBW color mixing from one 15W 4-in-1 Quad LED, and features DMX-512, flicker-free operation, 64 built-in color macros,…
View on ADJ siteOverview

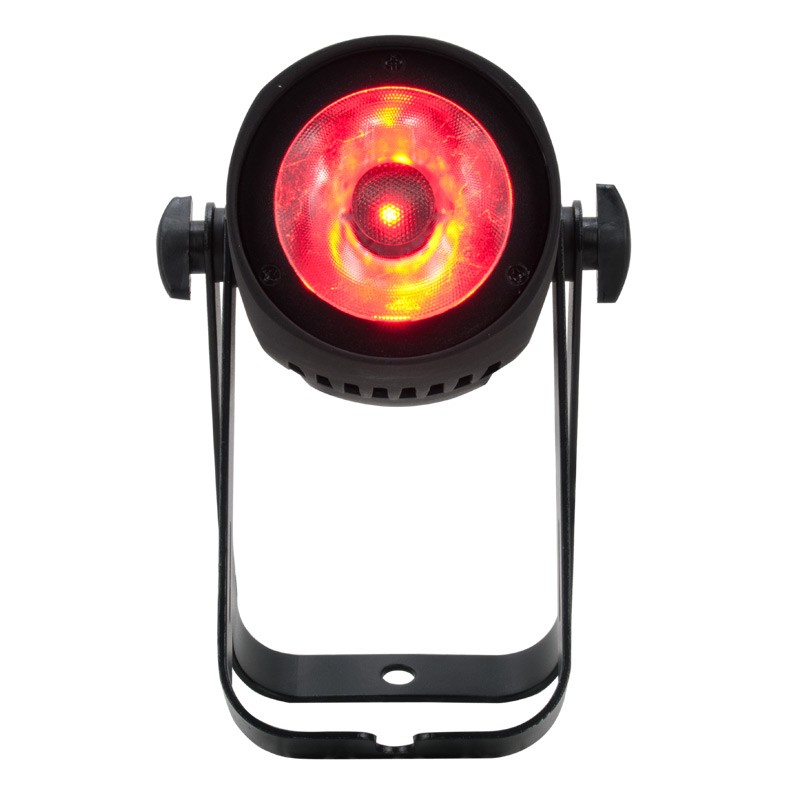

The Saber Spot RGBW is a compact Pinspot with smooth RGBW color mixing from one 15W 4-in-1 Quad LED, and features DMX-512, flicker-free operation, 64 built-in color macros, strobing, electronic dimming and has a 4-Button DMX display system on the rear panel. Its built-in ACL lens produces a razor sharp 4-degree beam angle. Included are 2 additional fresnel lenses of 10 & 45 degres The Saber Spot RGBW has a scissor bracket system that allows the fixture to be hung or set on the ground, and is ideal for performance stages, installations, table spotting, lighting retail stores.
Video
Specifications
Source
- Source: RGBW 4-in-1 QUAD-LED
- Individual LED wattage : 15W
- Average LED lifetime: approx. 10,000hrs
- Flicker-free operation for film and television
Optics
- Beam angle: 4 degree
- 2 additional fresnel lenses included (10° & 45°)
Control
- 3 Operational modes: Show Mode, Manual Mode and DMX-512 Mode
- 12 DMX Channel modes: 3 (HSI), 4, 4A(HSI+), 5, 6, 6A, 8, 8A, 9(HSI Max), 11 or 12 channels
- 16bit Dimming
- 5 Dim Curves: Standard/Stage/TV/Architectural/Theatre
- Strobe & pulse effects
- LCD display with 4-button control
Color
- RGBW Color Mixing
- 64 Color Macros
Construction
- Metal Black Housing
- Scissor bracket system allows fixture to be hung or set on the ground
Electrical
- Multi-voltage operation: 100-240V, 47/63Hz
- Power Draw: 14W max
Connections
- 3-pin XLR In/Out pigtails
- Locking Power In/Out, Locking Power cable included
