Seetronic-SAC3FCB
Seetronic SAC3FCB is a professional 3-core power-out cable connector designed for reliable indoor power distribution in lighting, audio, and entertainment systems.
View on ADJ siteOverview

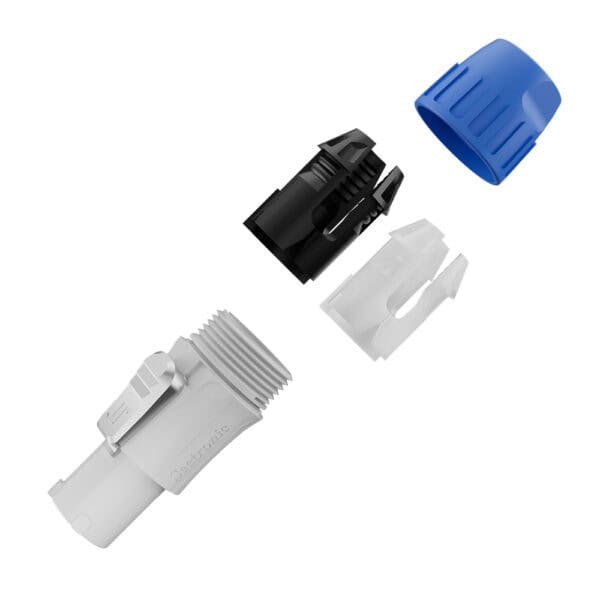

Seetronic SAC3FCB is a professional 3-core power-out cable connector designed for reliable indoor power distribution in lighting, audio, and entertainment systems. Featuring contacts for line, neutral, and protective earth, it ensures stable power transmission for demanding professional applications. Rated up to 20A @ 250V AC, the SAC3FCB features a fast and secure latch-lock system to prevent accidental disconnection. Designed for cables with an outer diameter of 8-12 mm, it includes screw-type terminals for secure installation and is compatible with SAC3MCB plugs and SAC3MPB sockets. Ideal for touring racks, stage equipment, and professional power distribution setups.
Specifications
Electrical Parameters
- Number of contacts: 2 + PE
- Rated current: 20 A
- Rated voltage: 250 V AC
- Contact resistance: ≤ 5 mΩ
- Dielectric strength: 4000 V DC
- Insulation resistance: > 1000 MΩ
Mechanical Parameters
- Service life: > 1000 mating cycles
- Cable size: 2.5 mm²

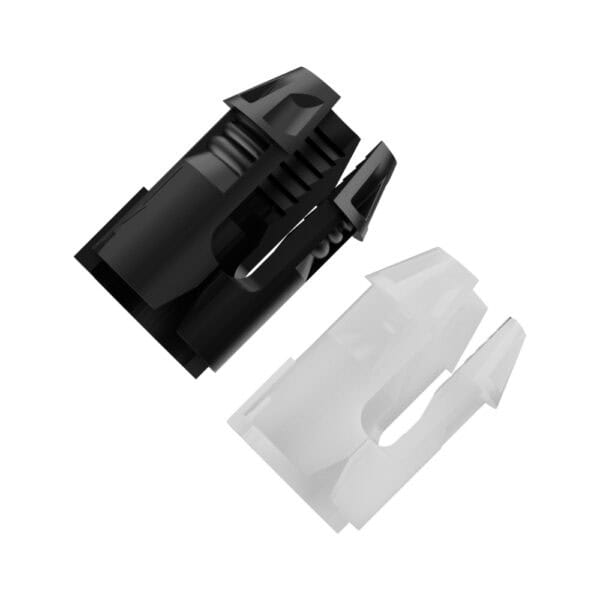

- Cable O.D. (white strain relief): 8–11 mm
- Cable O.D. (black strain relief): 11–12 mm
- Type of terminals: Screw type terminals
