Seetronic-SAC3MPB

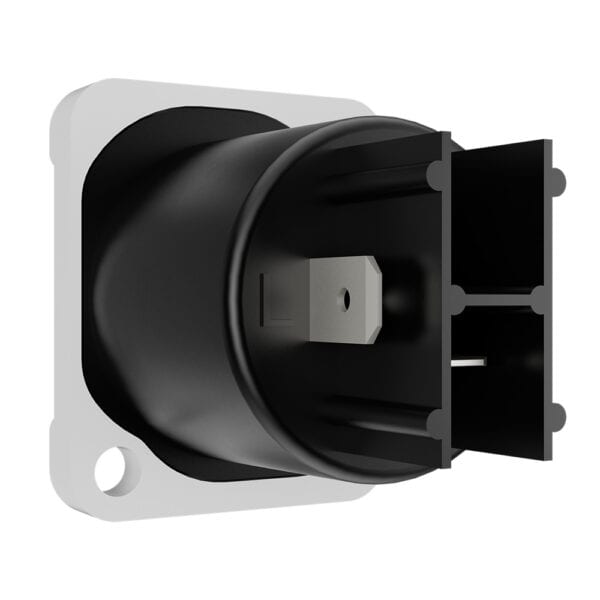

Seetronic SAC3MPB is a professional 3-core power device AC socket connector designed for safe and reliable power distribution in lighting, audio, and entertainment systems.
View on ADJ siteOverview
Seetronic SAC3MPB is a professional 3-core power device AC socket connector designed for safe and reliable power distribution in lighting, audio, and entertainment systems. Featuring contacts for line, neutral, and protective earth, this connector provides secure AC power connections for demanding professional environments. Rated up to 20A @ 250V AC, the SAC3MPB features a quick and secure locking system to prevent accidental disconnection. Built with a durable polyamide housing and silver-plated copper alloy contacts, it ensures stable performance and long service life, making it ideal for touring productions, stage installations, and professional power distribution applications.
Specifications
Electrical Parameters
- Number of contacts: 2 + PE
- Rated current: 20 A
- Rated voltage: 250 V AC
- Contact resistance: ≤ 5 mΩ
- Dielectric strength: 4000 V DC
- Insulation resistance: > 1000 MΩ
Mechanical Parameters
- Service life: > 1000 mating cycles
- Cable size: 2.5 mm²
