Seetronic-SAC3MPX

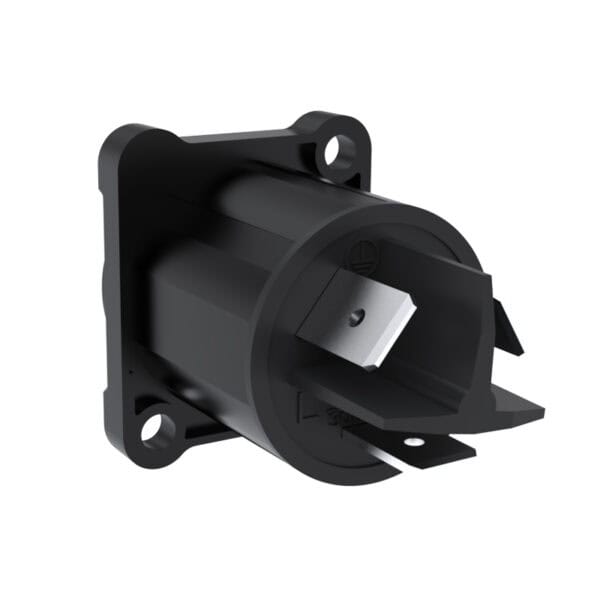

Seetronic SAC3MPX is a professional IP65-rated power socket designed for reliable outdoor power connections in demanding entertainment and installation environments.
View on ADJ siteOverview
Seetronic SAC3MPX is a professional IP65-rated power socket designed for reliable outdoor power connections in demanding entertainment and installation environments. Featuring a lockable 3-core design with line, neutral, and protective earth contacts, it ensures secure and stable power distribution for lighting, staging, and production equipment. Built with a durable PA housing and silver-plated copper alloy contacts, the SAC3MPX delivers dependable performance in challenging conditions. Rated up to 16A @ 250V AC (TÜV) and 20A @ 300V AC (UL), it is ideal for touring, stage productions, and permanent installations where robust, weather-resistant power connectivity is essential.
Specifications
Electrical Parameters
- Number of contacts: 2 + PE
- Rated current: 16 A (TÜV RH) / 20 A (UL)
- Rated voltage: 250 V AC (TÜV RH) / 300 V AC (UL)
- Contact resistance: ≤ 5 mΩ
- Dielectric strength: 4000 V DC (1600 V/min AC UL)
- Insulation resistance: > 1000 MΩ
Mechanical Parameters
- Service life: > 1000 mating cycles
- Cable size: 2.5 mm² / 12 AWG
