Seetronic-SE8MC-1-30-LOD
Seetronic SE8MC-1-30-LOD is a professional RJ45 cable carrier connector designed to protect standard Ethernet connections in demanding commercial and entertainment environments.
View on ADJ siteOverview

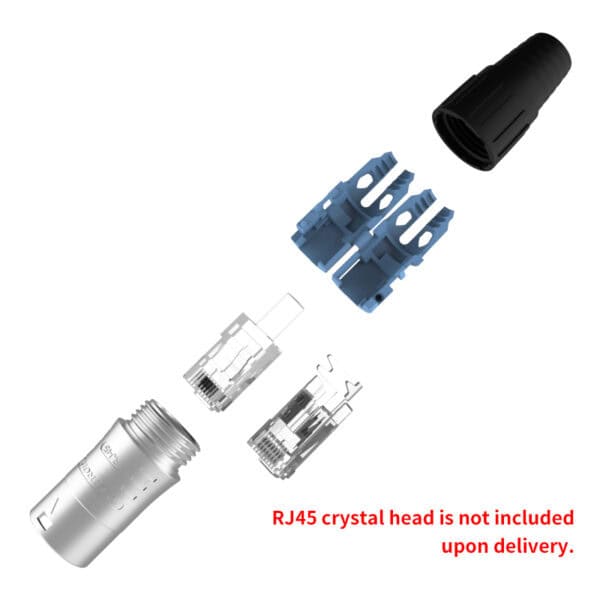

Seetronic SE8MC-1-30-LOD is a professional RJ45 cable carrier connector designed to protect standard Ethernet connections in demanding commercial and entertainment environments. Featuring a durable die-cast zinc housing with chrome plating, it ensures secure and reliable network connectivity while providing excellent protection for RJ45 plugs used in lighting, audio, and data distribution systems. Compatible with cables with an outer diameter of 7.5-9 mm, the SE8MC-1-30-LOD supports both standard RJ45 plugs and versions with dovetail clips. Its robust cable clamp design provides additional strain relief and long-term durability, making it ideal for touring, installation, and other professional networking applications where dependable Ethernet connections are essential.
Specifications
Connections:
- Connection Type: RJ45
- Connection Gender: Male
Mechanical:
- Cable OD: 7.5-9mm
- Insertion Force: ≤ 20 N
- Withdrawal Force: ≤ 20 N
- Service Life: > 1000 mating cycles
- Locking Device: Latch Lock
Material:
- Boot: PA
- Housing: Zinc Alloy
- Housing Plating: Chrome Plating (Cr)
