Tannoy CMS 503ICT LP
SKU 0301-AAY
Tannoy ceiling loudspeaker for background music and paging in commercial spaces. Available in Dubai from Pure Minds Trading.
View on Tannoy siteOverview
CMS 3.0 CMS 503ICT LP

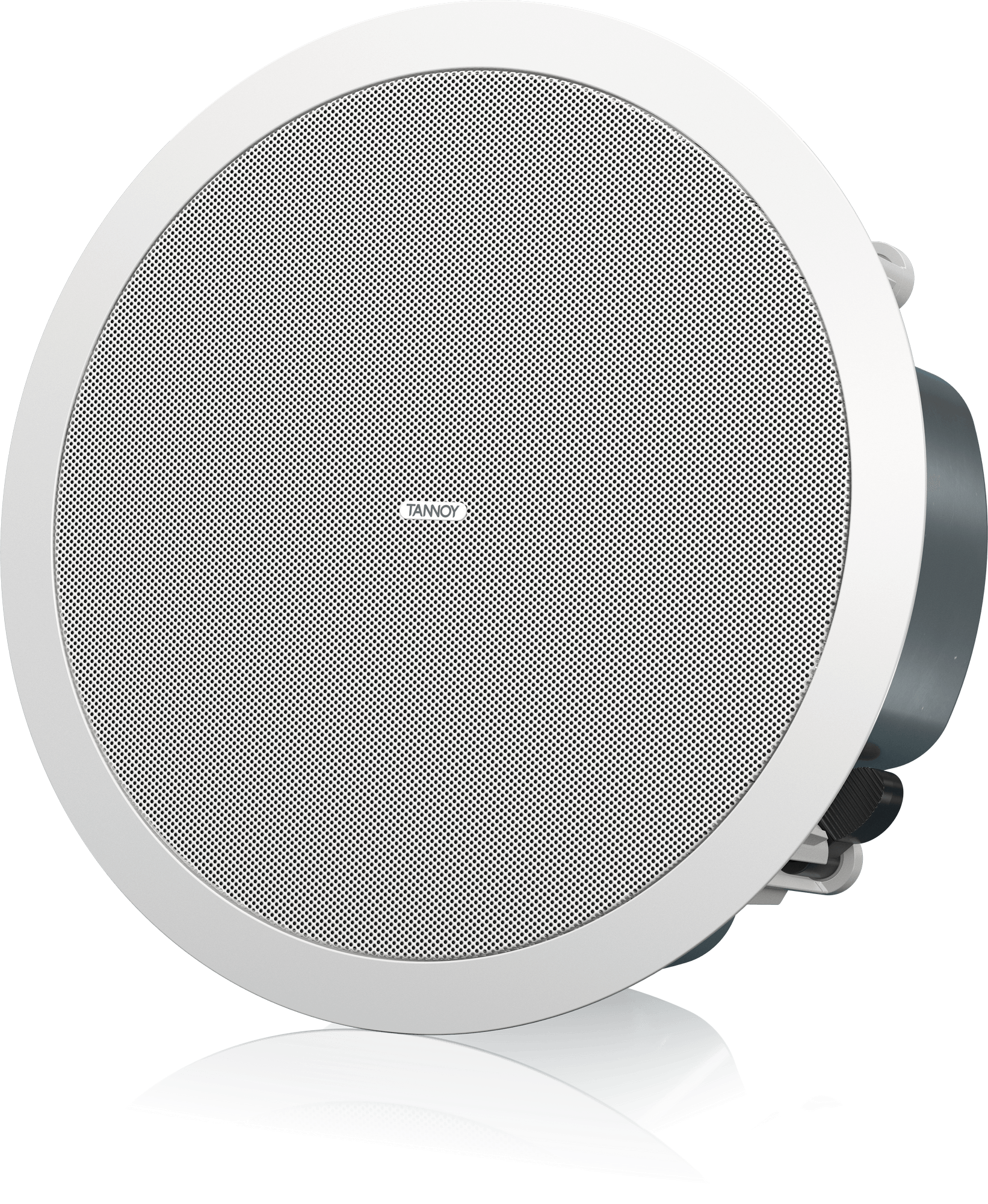

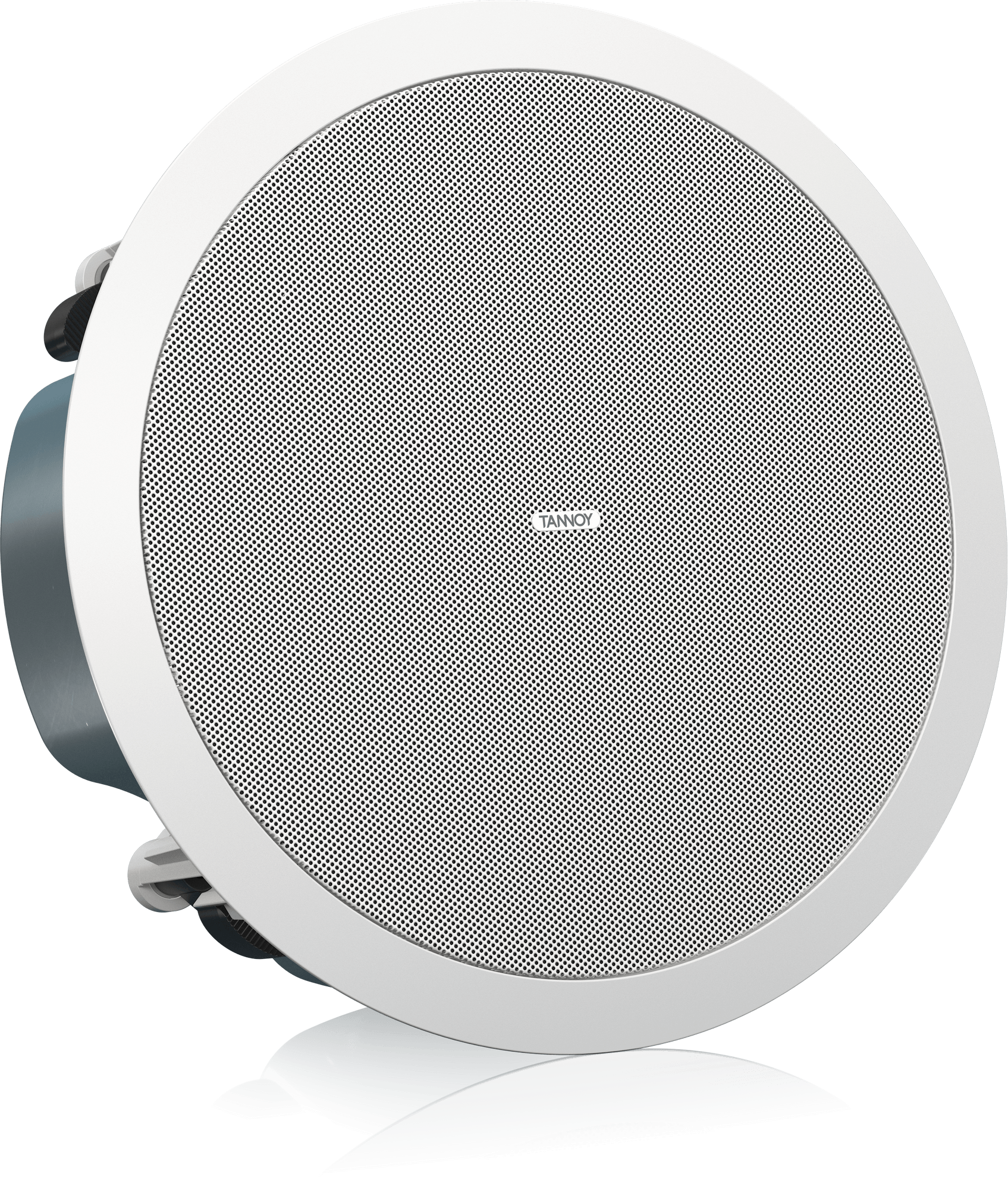

The CMS 503ICT LP is a full bandwidth 200-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 5" ICT (Inductive Coupling Technology) point source driver with extended frequency range, the UL certified CMS 503ICT LP delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability – and are ideal for constant-usage applications.
Optimised for Installation

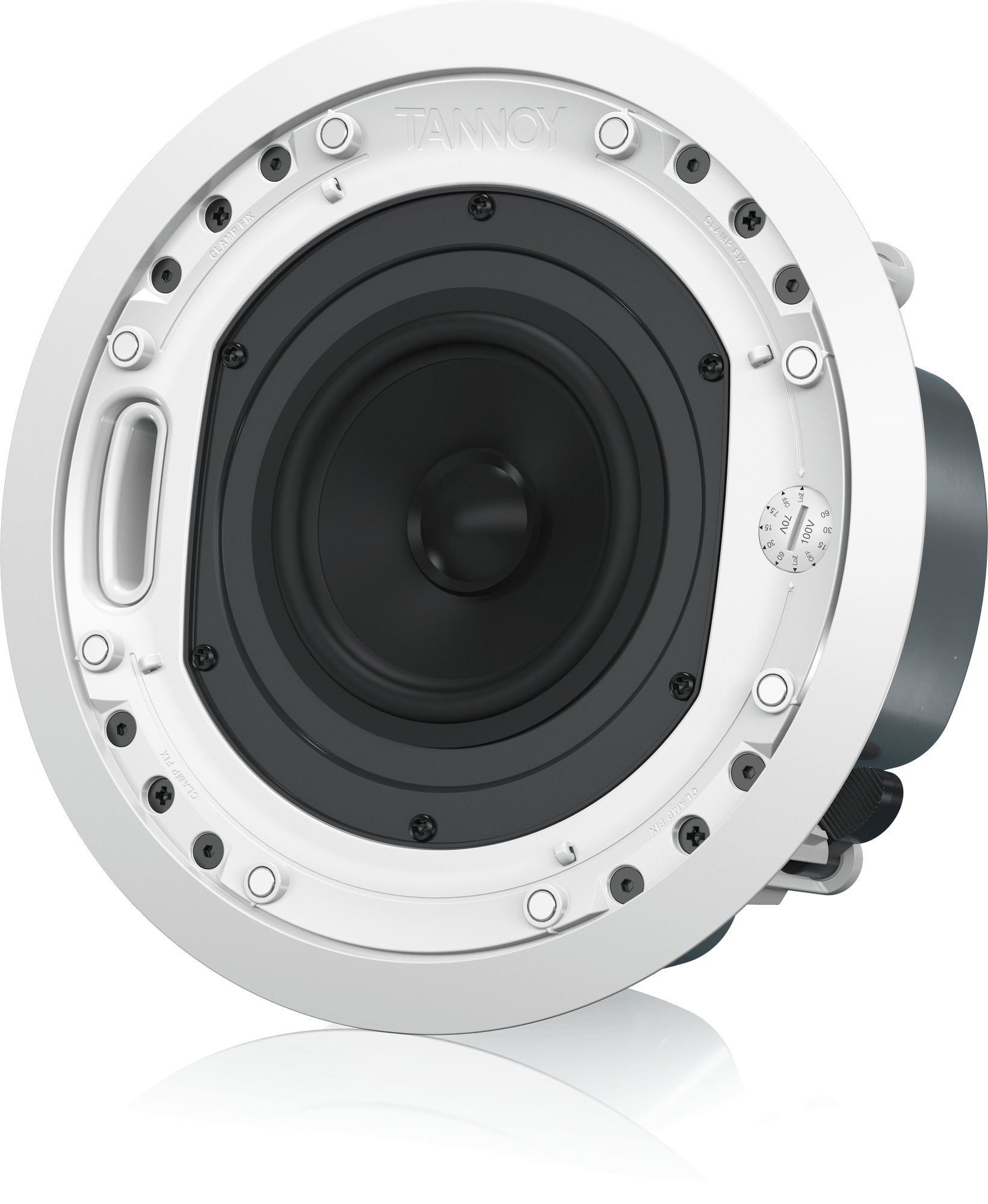

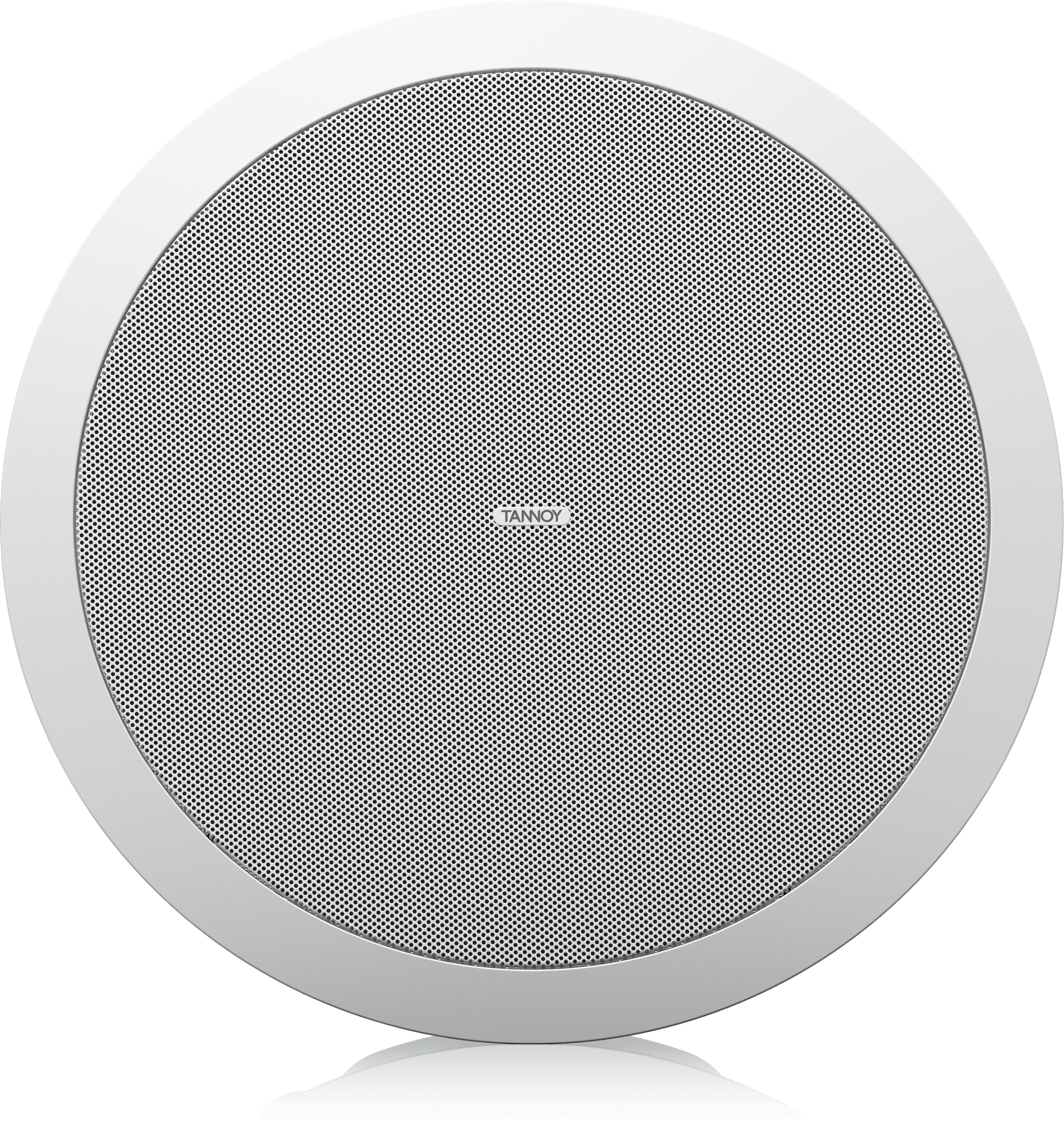

Specifically designed with a 4 way self-aligning clamp system for fast, simple and cost effective installation, CMS 503ICT LP features an ultra-shallow back can for applications where cavity space is limited, and a removable locking screw terminal connector with loop-thru functionality. A low-insertion loss 30 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes, and plaster (mud) ring are available separately.
LAB GRUPPEN Ready
The CMS 503ICT LP is finished in semi matt white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.8:
Specifications
Frequency response (-3 dB) <sup>(1)</sup>
- 88 Hz - 50 kHz
Frequency range (-10 dB) <sup>(1)</sup>
- 77 Hz - 54 kHz
System sensitivity (1 W @ 1 m) <sup>(2)</sup>
- 89 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle
- 90 degrees conical
Average
- 50 W
- 106 dB
Programme
- 100 W
Peak
- 200 W
- 112 dB
Recommended Amplifier Power
- 100 W @ 16 Ohms
Nominal Impedance (Lo, Z)
- 16 Ohms
70 V
- 30 W (165 O) / 15 W (330 O) / 7.5 W (660 O) / 3.75 W (1320 O) / OFF & low impedance operation
100 V
- 30 W (330 O) / 15 W (660 O) / 7.5 W (1320 O) / OFF & low impedance operation
Low Frequency
- 1 x 130 mm (5.0") mineral loaded polypropylene
