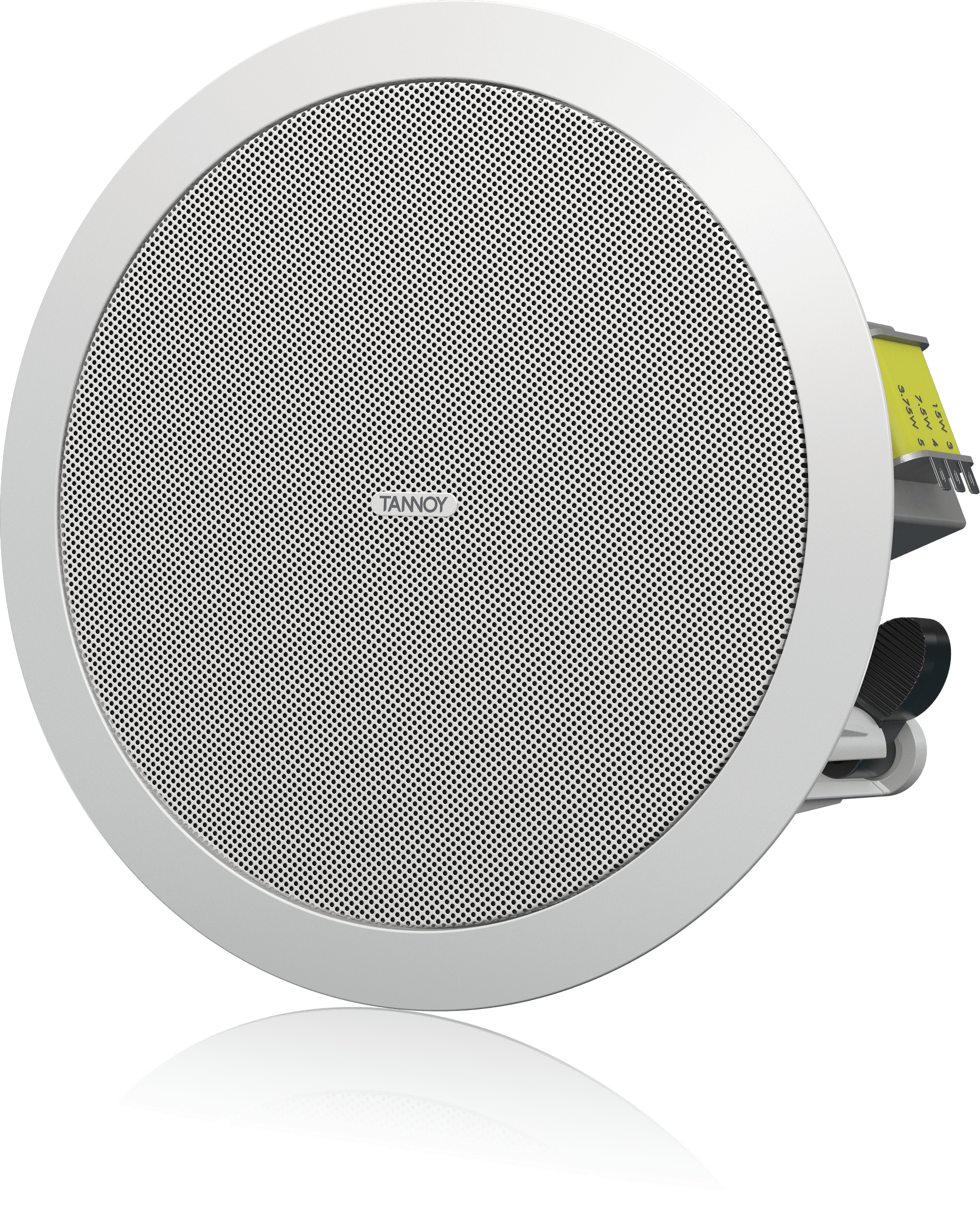

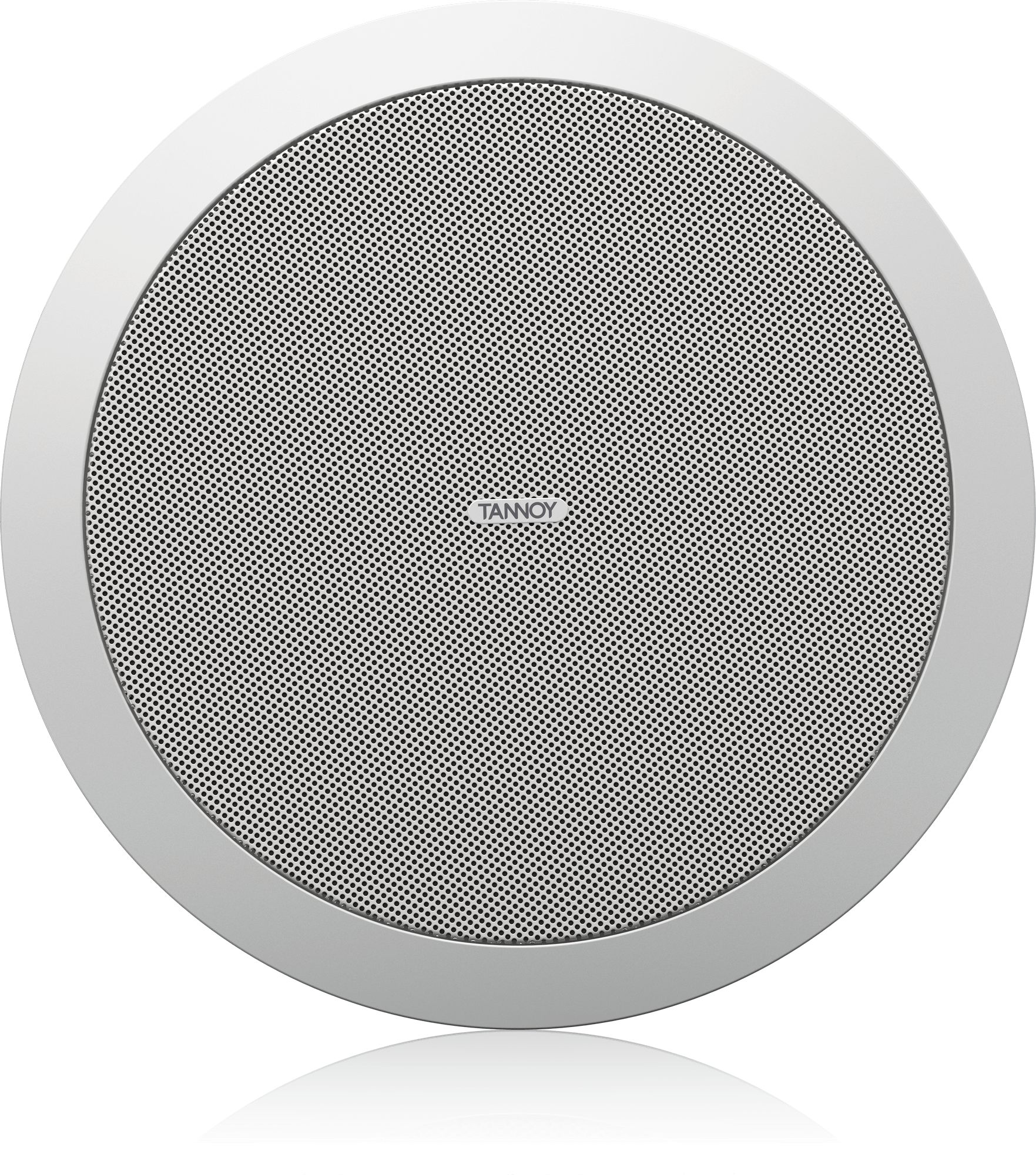

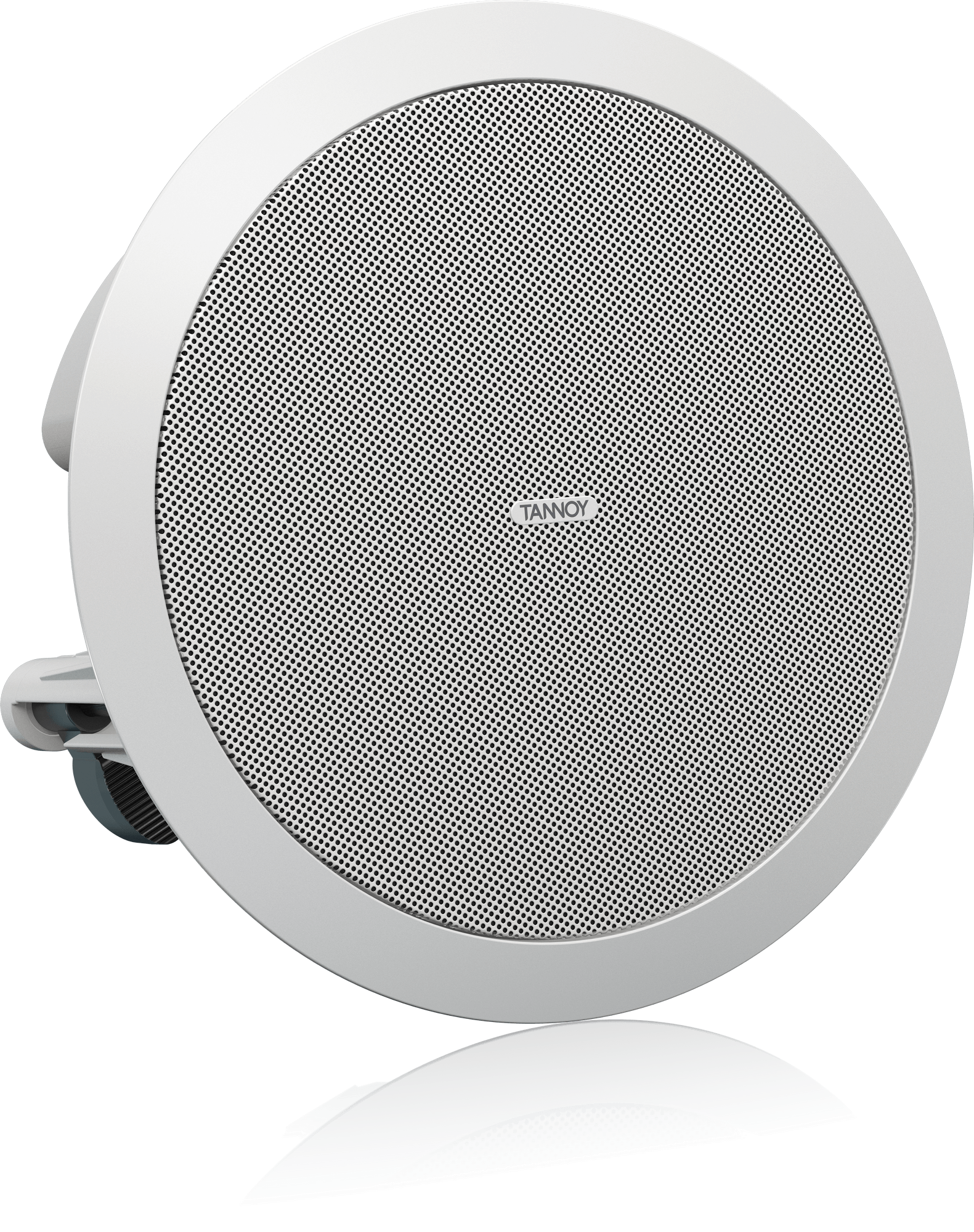

Tannoy CMS 503ICT PI
SKU 0301-AAX
Tannoy ceiling loudspeaker for background music and paging in commercial spaces. Available in Dubai from Pure Minds Trading.
View on Tannoy siteOverview
CMS 3.0 CMS 503ICT PI
The CMS 503ICT PI is a wide bandwidth 200-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 5" ICT (Inductive Coupling Technology) point source driver with extended frequency range, the UL certified CMS 503ICT PI delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability – and are ideal for constant-usage applications.
Optimised for Installation

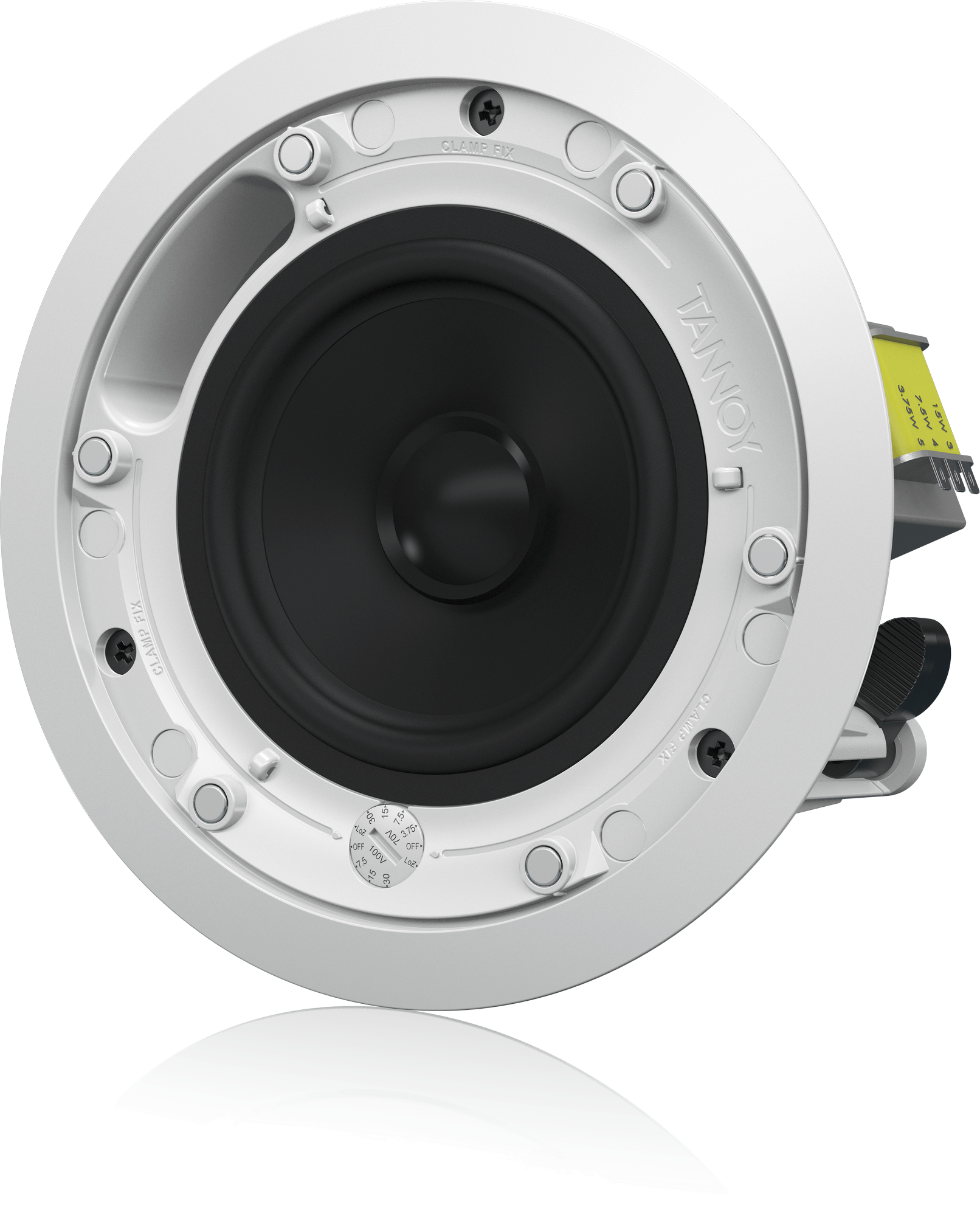

Specifically designed with a self-aligning 3 way clamp system for fast, simple and cost effective installation, CMS 503ICT PI also features extra clamp extension to accommodate thicker ceiling panels, and a locking design that prevents over-tightening. A low-insertion loss 30 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes, back can, and plaster (mud) ring are available separately.
LAB GRUPPEN Ready
The CMS 503DC PI is finished in semi matt white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.8:
Specifications
Frequency range (-10 dB) <sup>(1)</sup>
- 71 Hz - 24 kHz PI Backcan
System sensitivity (1 W @ 1 m) <sup>(2)</sup>
- 89 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle
- 90 degrees conical
Coverage Angle (1 kHz to 6 kHz)
- 105 degrees
Directivity Factor (Q)
- 5.6 averaged 1 kHz to 6 kHz
Directivity Index (DI)
- 7.0 averaged 1 kHz to 6 kHz
Recommended Amplifier Power
- 100 W @ 16 Ohms
Nominal Impedance (Lo, Z)
- 16 Ohms
Crossover
- 7 kHz inductively coupled
Low Frequency
- 130 mm (5.00") mineral loaded polypropylene
High Frequency
- ICT aluminium dome
Safety Features
- Safety ring located at rear of enclosure for load bearing safety bond
Clamping Design
- Security toggle clamp Min / Max clamping range 9.5 mm (0.37") / 60 mm (2.36") Recommended clamp torque: 1.5 Nm
Backcan Options
- Complete with fi xed backcan
