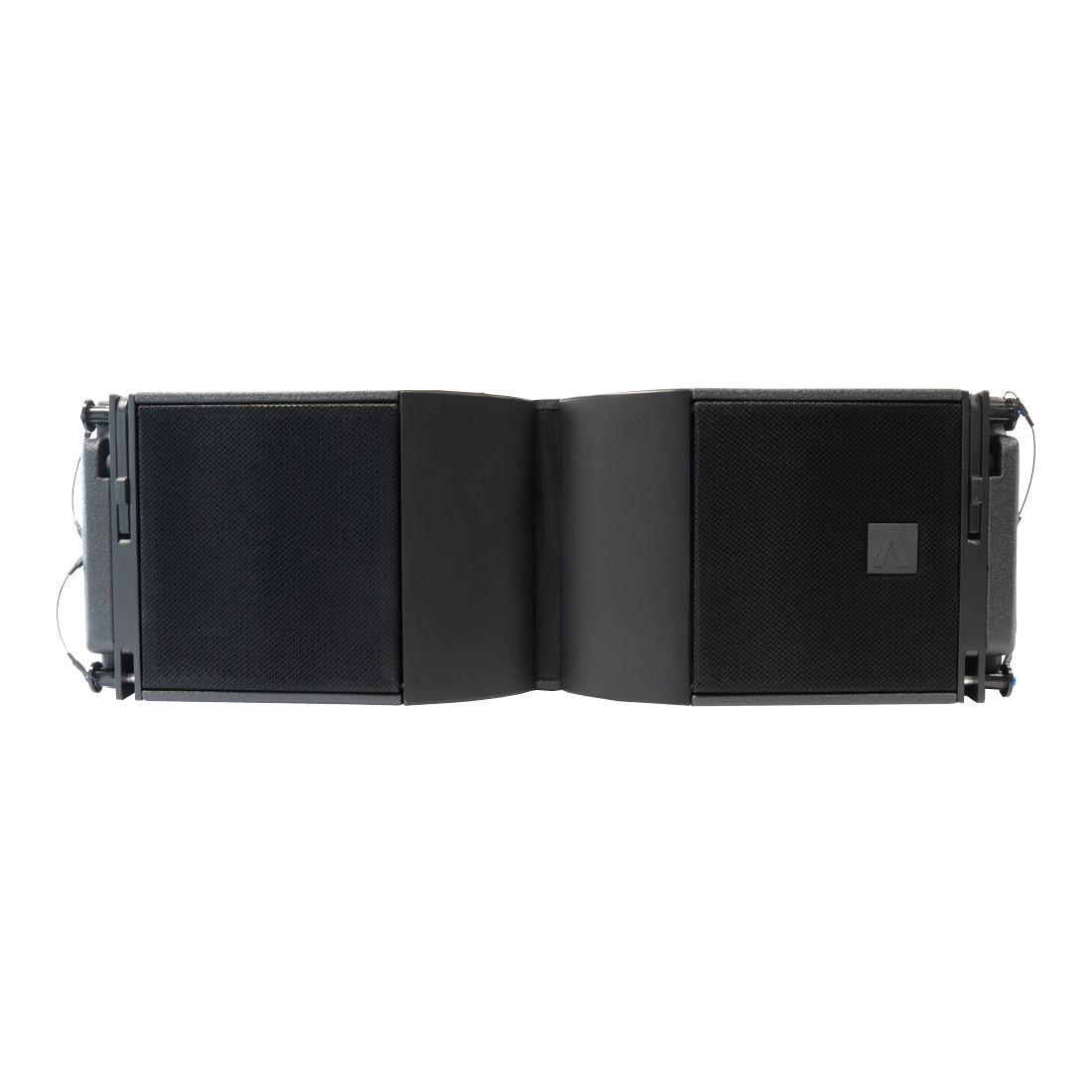

Akro ATL328 Top
Akro ATL328 Top
Couldn't load pickup availability
The Avante Tour series ATL328 is a professional 3-way active small-format line array engineered for medium to large events and pairs nicely with the Avante ATS218 subwoofer.
• Speaker Type: 3-Way Active, 2x8" Line Array Module, Milan certified
• Frequency Response: 70 - 20,000 Hz
• Max SPL: One Unit 127 dB
• MF/HF: Coaxial 4" (MF) + 2.55" (HF) - Neodymium on custom waveguide
• LF: 2 x 8" (2.5" voicecoil) - Neodymium
• Crossover Frequencies: 600 Hz / 3.5 kHz
• Horizontal Directivity: 110°
• Vertical Directivity: Depends on array size and configuration
• Channels: 3 Channels, 1 LF, 1 MF, 1 HF
• Power: 600 W RMS, 1200 W Program, 1800 W Peak
• Cooling: Convection, Internal Fan
• Power Supply: Auto switching 100V~ - 240V~, 50-60Hz
• Protection: Thermal, DC Offset, Output Short
• DSP: 64-bit Multimode with Milan
• Sample Rate: 96 kHz
• Limiter: Multiband compressor, Peak Limiter
• Processing (filters): FIR Linear Phase & 10-band IIR
• Signal In/Out (analogue): 3-pin XLR
• Power Socket: IP65 Locking Power In/Out
• Network: Locking RJ45 In/Out for control and Milan

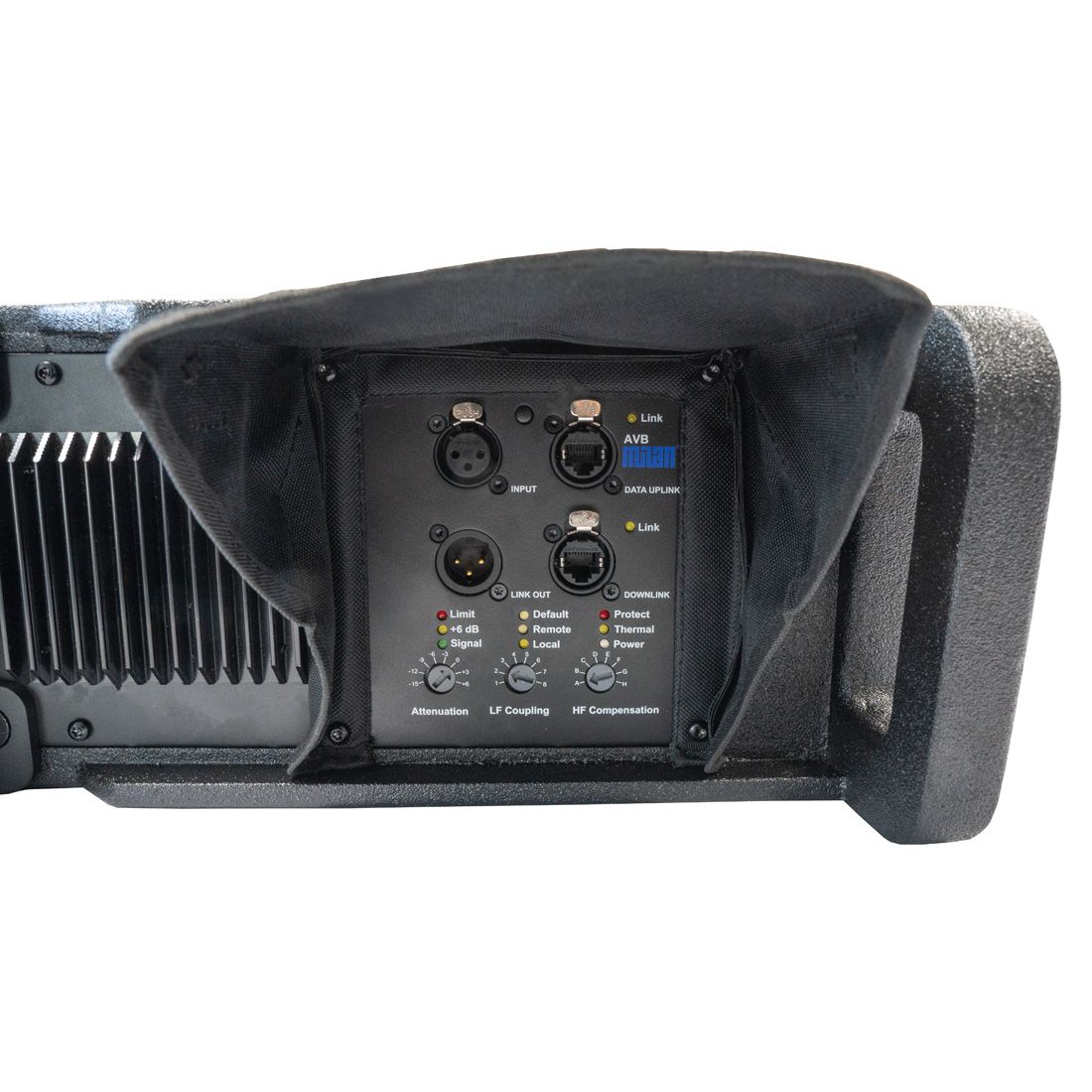

• Controls: 1 x Input Attenuation (-15dB - +6dB), 1 x LF Coupling (8 Presets), 1 x HF Compensation (8 Presets), 1 x System Test and Reset Button
• Special Features: Frontal LED Identification System, Inclinometer
• Housing: Multiplex Plywood - Polyurea painting
• Housing Design: Trapezoidal
• Handles: 4 x Handles (1 on each side, 2 on back)
• Rain Cover: Included, fixed
• Rigging Points: 3 points rigging hardware
• Dimensions (WxHxD): 760 x 230 x 465 mm
• Weight: 28.6 kg
• ATC328 - Transport Cart for up to 5 x ATL328
• CVR328 - Protective cover for 4 x ATL328
• AFB328 - Array Flybar/Ground Stack base
• ASB328 - Stabilizer Bars for ATC328 (2-piece set)
