Avante Audio
Akro ATL328 Top

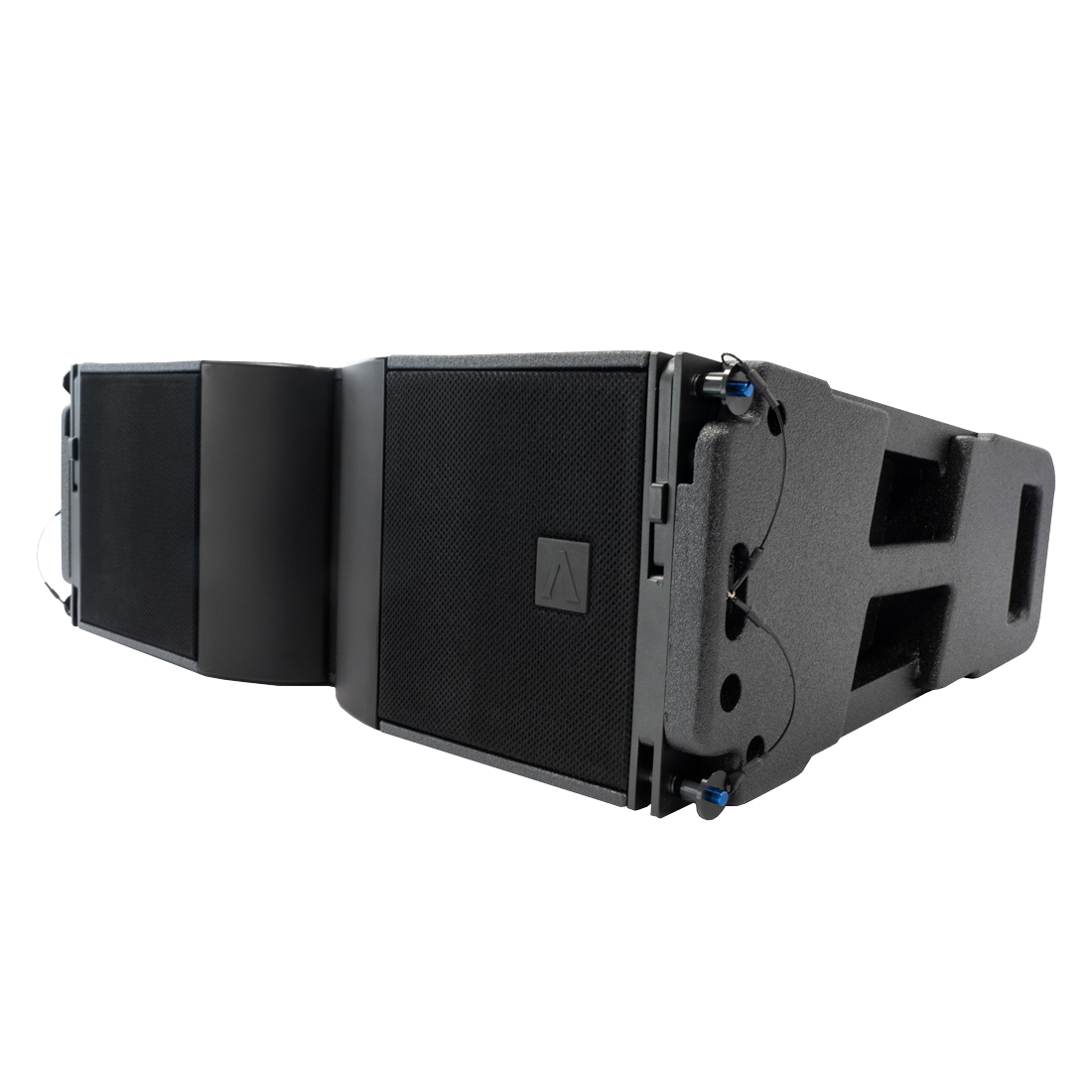

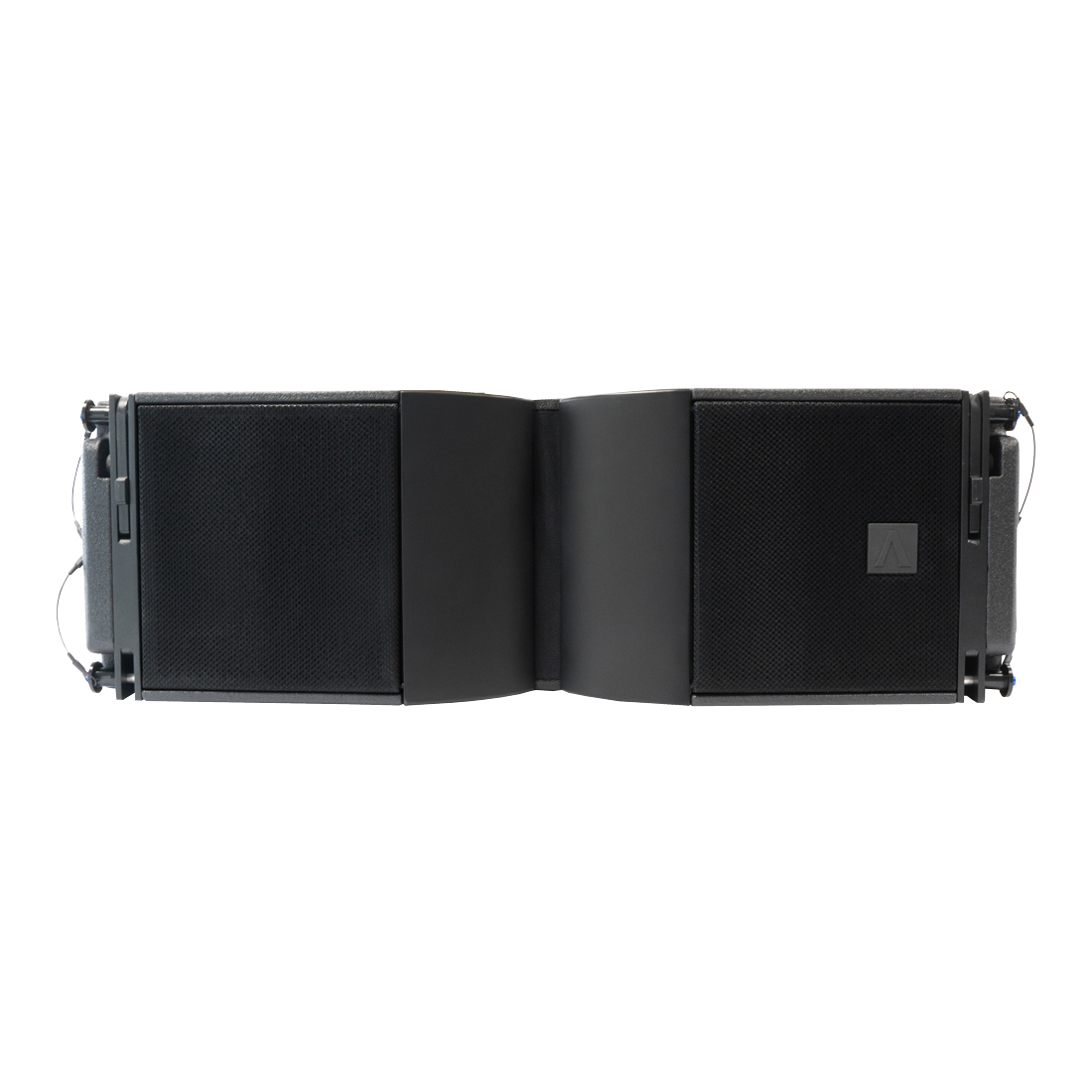

The Avante Tour series ATL328 is a professional 3-way active small-format line array engineered for medium to large events and pairs nicely with the Avante ATS218 subwoofer.
View on Avante Audio siteOverview
The Avante Tour series ATL328 is a professional 3-way active small-format line array engineered for medium to large events and pairs nicely with the Avante ATS218 subwoofer.
Specifications
Technical Data
- Speaker type: 3-way active dual 8-inch line array module, Milan certified
Acoustical Data
- Frequency response: 70 - 20,000 Hz
- Max. SPL: 127 dB (single unit)
- MF/HF: 4-inch MF + 2.55-inch HF neodymium drivers on custom waveguide
- LF: 2 x 8-inch neodymium woofers with 2.5-inch voice coils
- Crossover frequencies: 600 Hz / 3.5 kHz
- Horizontal directivity: 110°
- Vertical directivity: 10°
Amplifier
- Channels: 3 channels (1 LF, 1 MF, 1 HF)
- Power: 600 W RMS / 1200 W program / 1800 W peak
- Cooling: Convection with internal fan
- Power supply: Auto-switching AC 100-240 V, 50/60 Hz
- Protection: Thermal, DC offset, output short circuit
Processor
- DSP: 64-bit multimode processor with Milan
- Sample rate: 96 kHz
- Limiter: Multiband compressor and peak limiter
- Processing filters: FIR linear phase and 10-band IIR

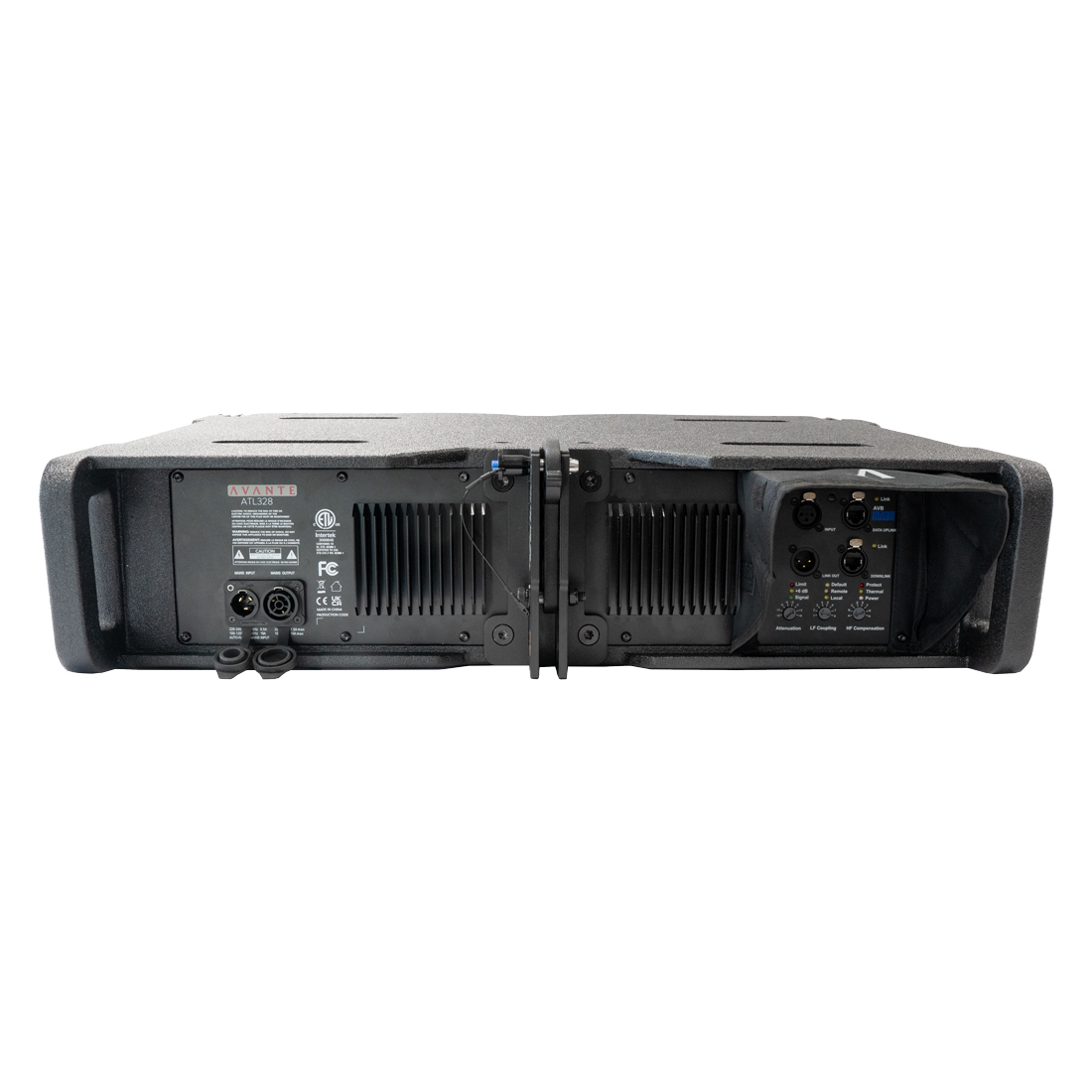

Input / Output
- Analog signal input/output: 3-pin XLR
- Power connection: IP65 locking power input/output
- Network: Locking RJ45 input/output for control and Milan

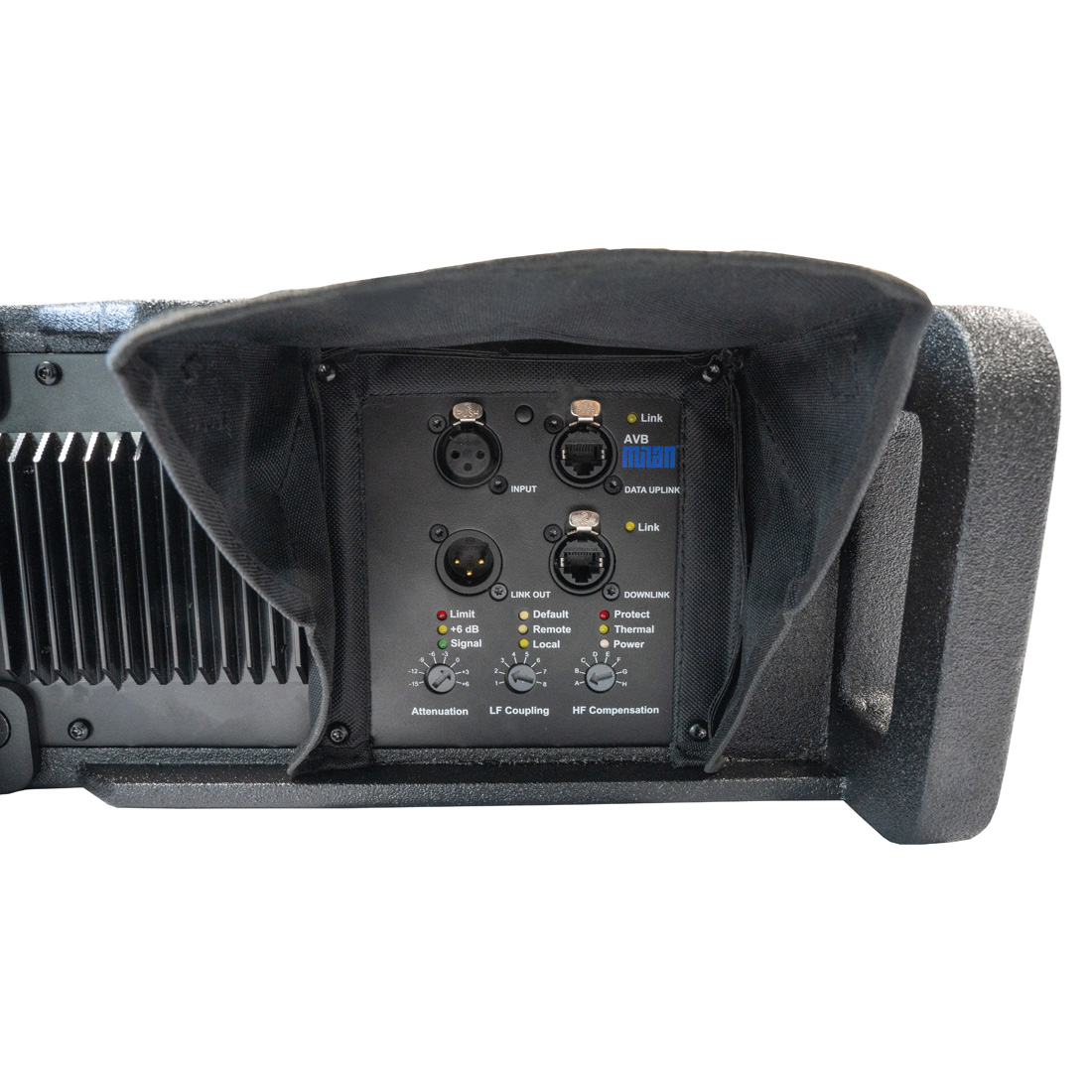

- Controls: Input attenuation (-15 dB to +6 dB), LF coupling (8 presets), HF compensation (8 presets), system test and reset button
- Special features: Frontal LED identification system, inclinometer
Power Linking / Draw
- Power linking: Up to 6 speaker cabinets @ 208 V / 20 A
- Power draw (1/8 power): 2.6 A / 198 W
Remote Control
- Full system control and monitoring via AKRO Command software
- Compatible with macOS and Windows (32-bit / 64-bit)
Construction
- Housing: Multiplex plywood with Polyurea coating
- Housing design: Trapezoidal
- Handles: 4 integrated handles (1 per side, 2 on rear)
- Rain cover: Included and permanently attached

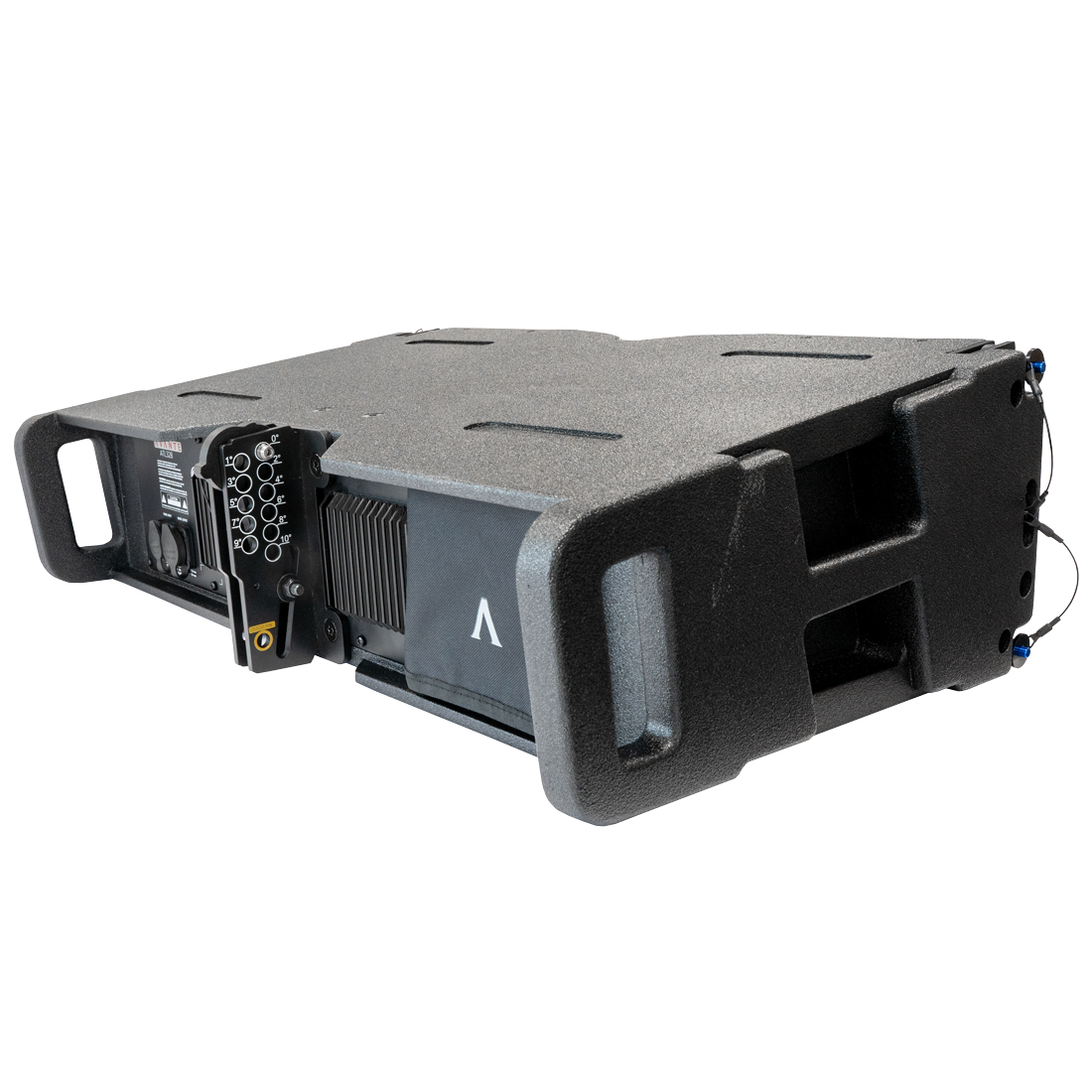

- Rigging: Integrated 3-point rigging hardware
Dimensions / Weight
- Dimensions (W x H x D): 760 x 230 x 465 mm
- Weight: 28.6 kg
