Akro ATS218 Sub
The Avante Tour series ATS218 is a high-output dual 18-inch active subwoofer engineered for medium to the largest events and pairs nicely with the Avante ATL328 line array.
View on Avante Audio siteOverview
The Avante Tour series ATS218 is a high-output dual 18-inch active subwoofer engineered for medium to the largest events and pairs nicely with the Avante ATL328 line array.
Specifications
Technical Data
- Speaker type: 1-way active dual 18-inch subwoofer, Milan certified
Acoustical Data
- Frequency response: 35 - 200 Hz
- Max. SPL: 132 dB
- LF: 2 x 18-inch ferrite woofers with 4-inch voice coils
Amplifier
- Amplifier power: 1200 W RMS / 2400 W program / 4800 W peak
- Cooling: Convection with internal fan
- Power supply: Auto-switching AC 100-240 V, 50/60 Hz
- Protection: Thermal, DC offset, output short circuit
Processor
- Controller: 64-bit multimode processor with Milan
- AD/DA converter: 96 kHz
- Limiter: Multiband compressor and peak limiter
- Processing filters: 10-band IIR

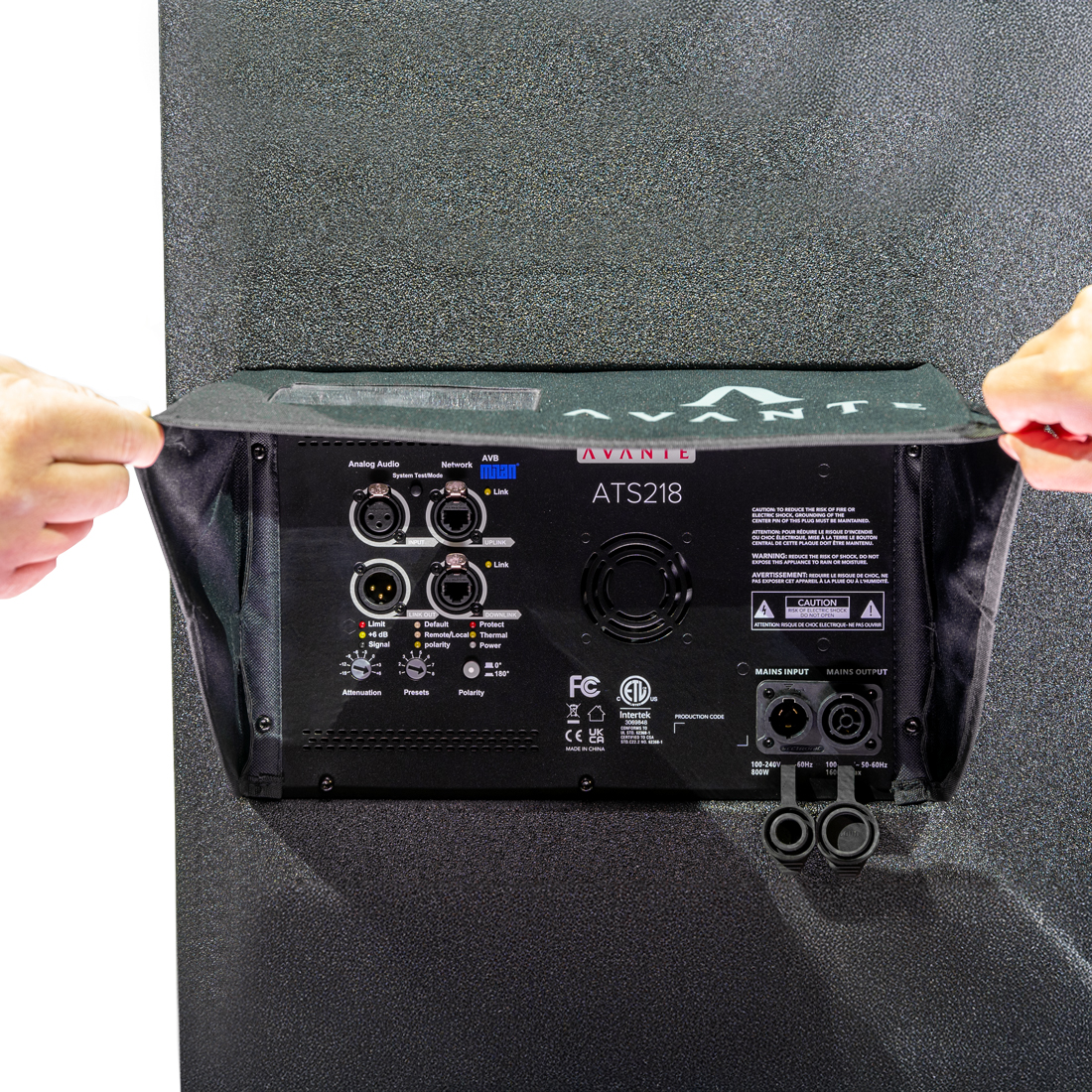

Input / Output
- Analog signal input/output: 3-pin XLR
- Power connection: IP65 locking power input/output
- Network: Locking RJ45 input/output for control and Milan
- Controls: Input attenuation (-15 dB to +6 dB), system test and reset button
- Special features: Frontal LED identification system
Power Draw (1/8 Power)
- Current draw: 3.7 A
- Power consumption: 428 W
Remote Control
- Full system control and monitoring via AKRO Command software
- Compatible with macOS and Windows (32-bit / 64-bit)
Construction
- Housing: Multiplex plywood with Polyurea coating
- Handles: 4 integrated handles (2 per side)
- Rain cover: Included and permanently attached
- Rigging points: Fixation holes for AFB328 flybar attachment
- Dimensions (L x W x H): 1219 x 575 x 575 mm
- Weight: 79 kg
