Avante Audio
AVANTE A18S
The Avante A18S, part of the Achromic Series from Avante Audio, is an active Subwooofer that offers powerful output, detailed audio clarity, built-in DSP and sleek exterior design.
View on Avante Audio siteOverview
The Avante A18S, part of the Achromic Series from Avante Audio, is an active Subwooofer that offers powerful output, detailed audio clarity, built-in DSP and sleek exterior design. Created for musicians, bands, houses of worship, audio production companies and rental houses, the Achromic Series speakers are equally suited to permanent installation as they are to one-off and touring productions.
Specifications
Speaker
- 18-inch, active Subwoofer
- Driver Information: 18” Woofer w/3” Voice Coil.
- Output (Peak SPL @1M): 127dB
Coverage
- Nominal Coverage: Omni-Direction, Cardioid
- Frequency Range (-10db): 35Hz-150Hz
Construction

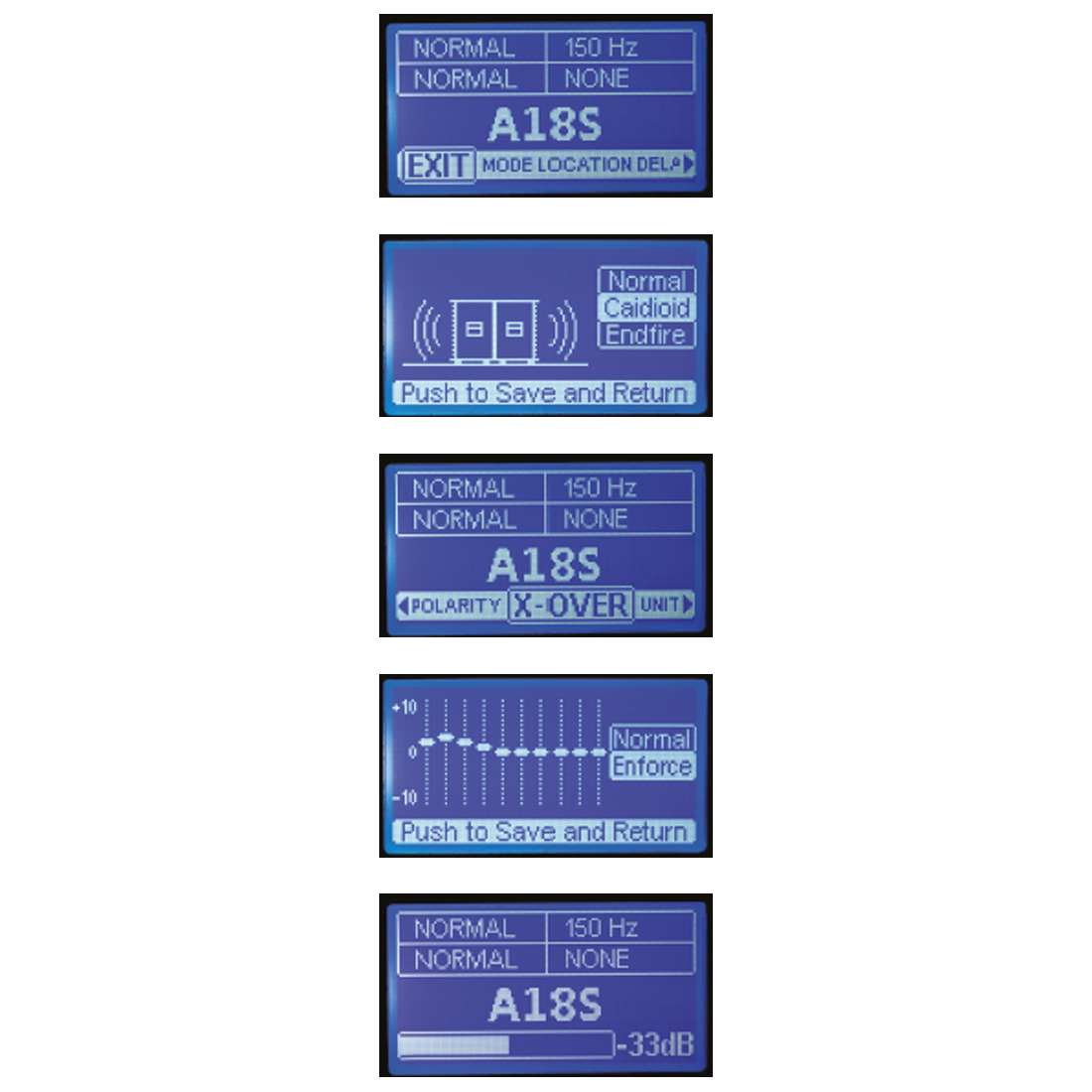

- Built-In DSP : LCD screen with EQ and multiple presets
- Normal, Cardioid and End-Fire Setups
- Enclosure: 15mm Plywood
- Grill: 1.5 mm steel
- Handles: 1 handle on each side
- Fly Points: None
- Pole Mounting: Ground Stack

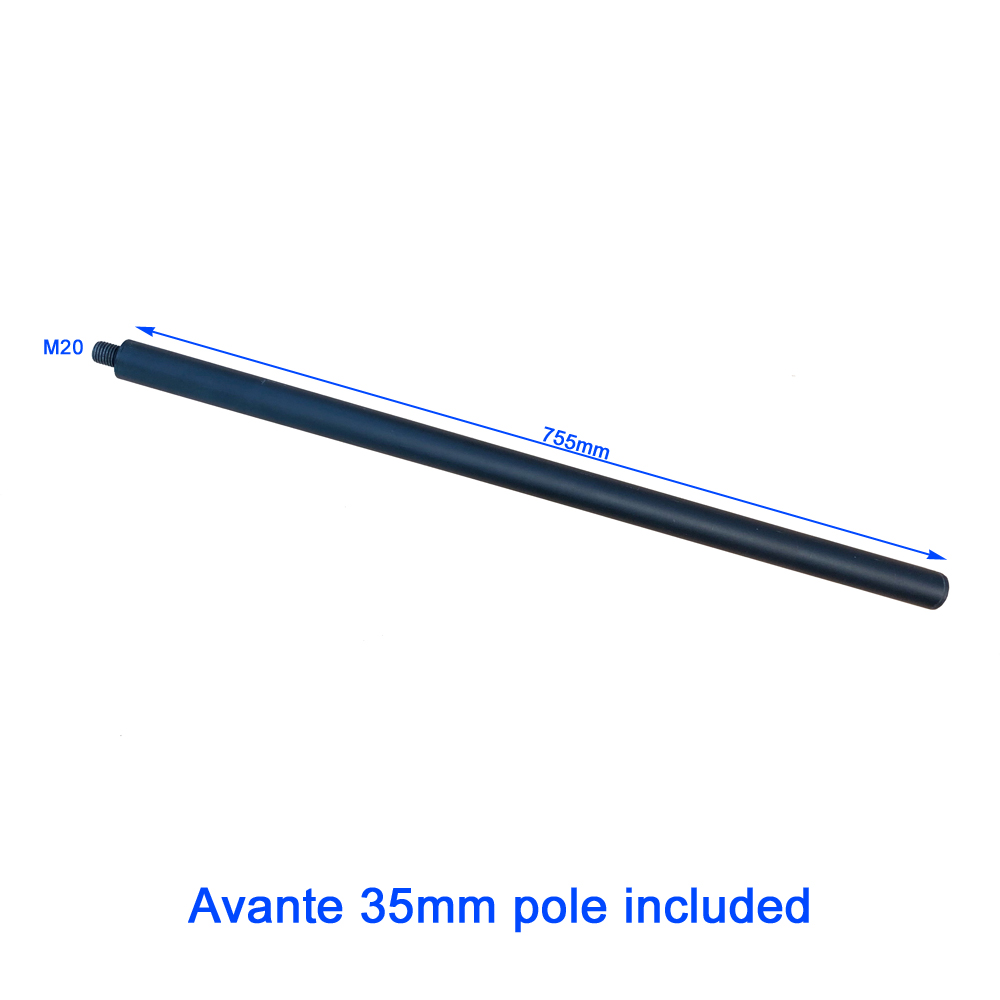

- Threaded M20 Standard 35mm Speaker Pole included
Amplification
- Amplifier Power : 1600 W Dynamic
- 1x 500W RMS Class D

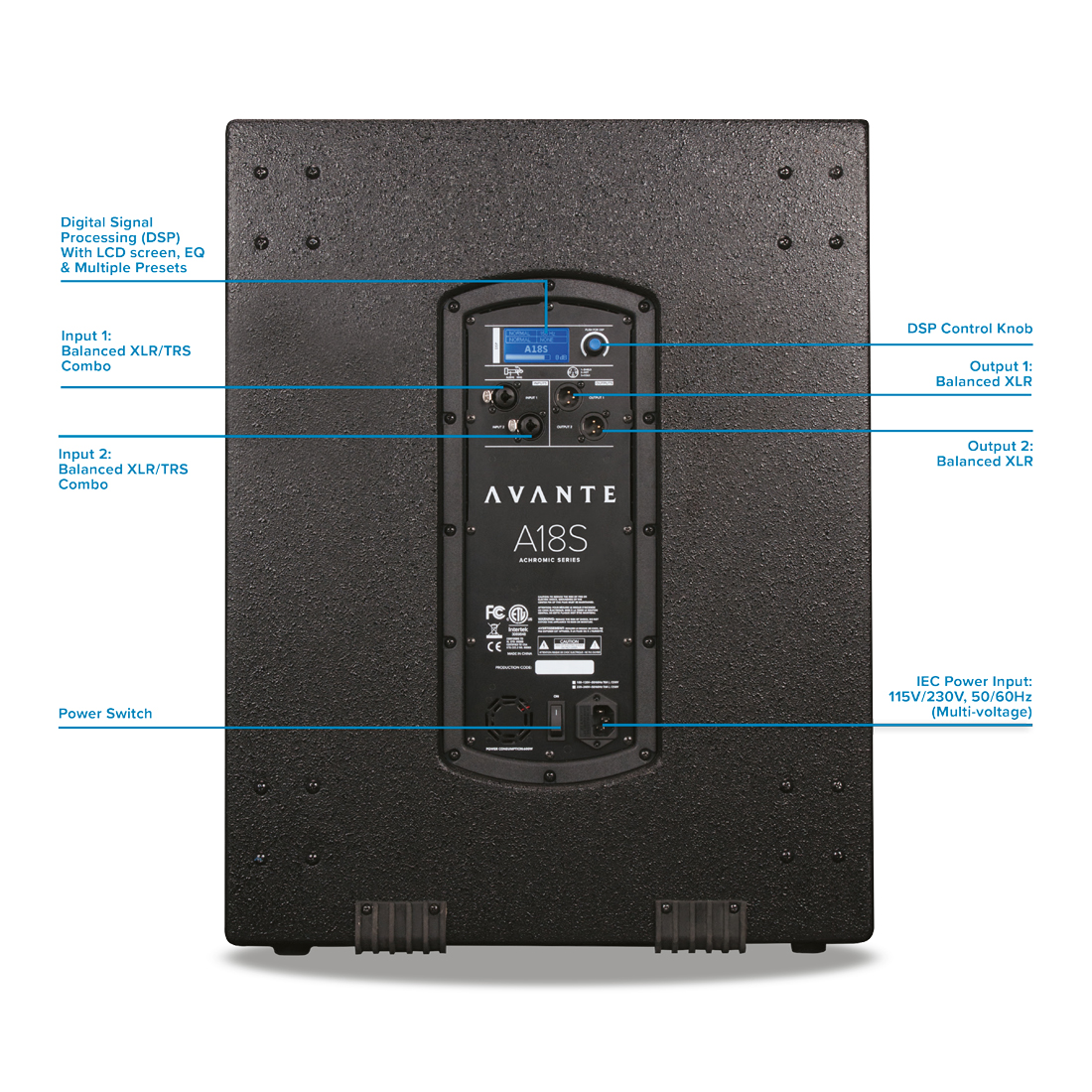

Connections
- 2 x Balanced female XLR/Jack 6.3mm combo Input
- 2 x Balanced XLR Output
- IEC Power In
Electrical
- Power Input: 120V/60Hz or 230V/50Hz
- Power Draw: 600W
