Encore DBX
Encore DBX is a versatile and powerful effect fixture designed for creating striking visuals at any event.
View on ADJ siteOverview

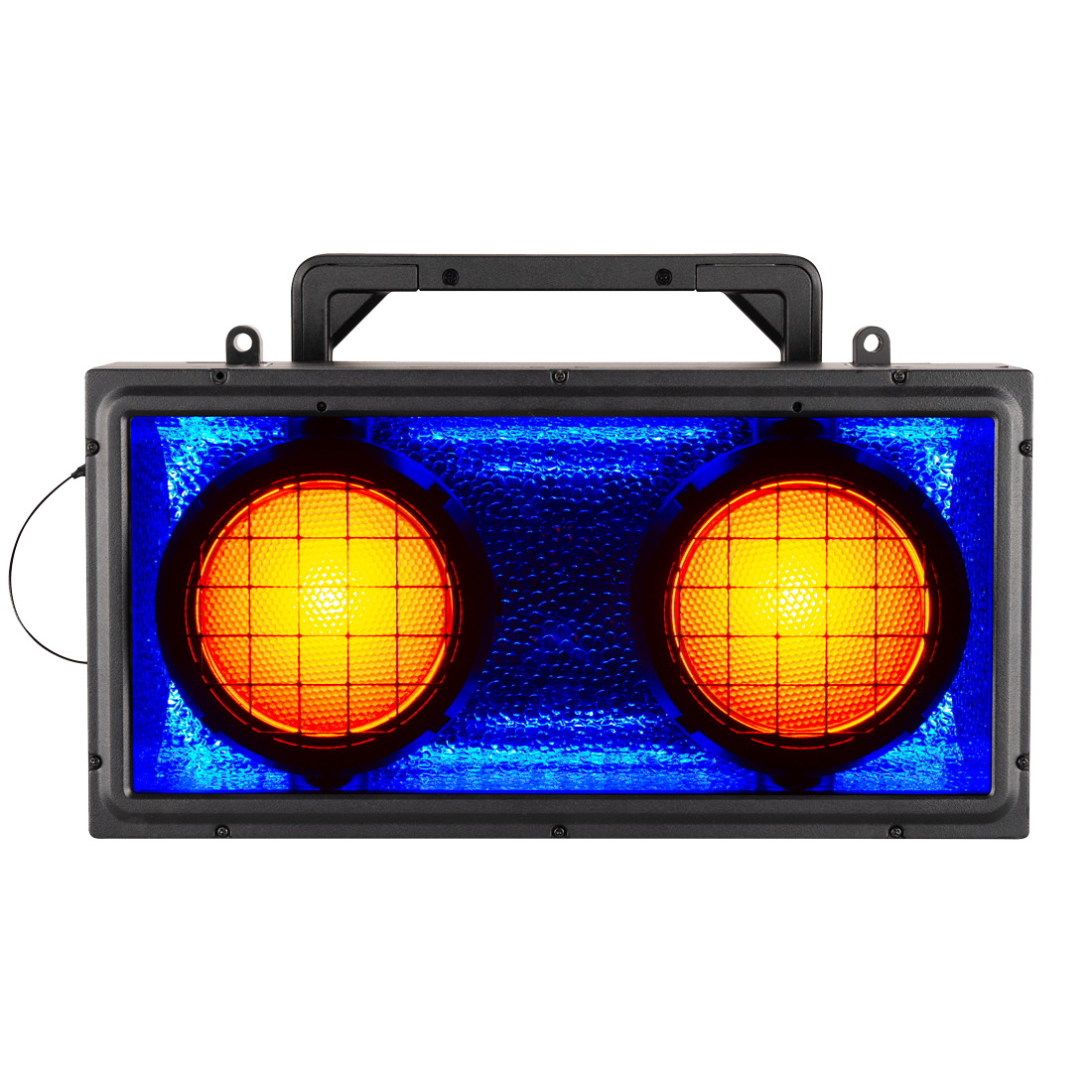

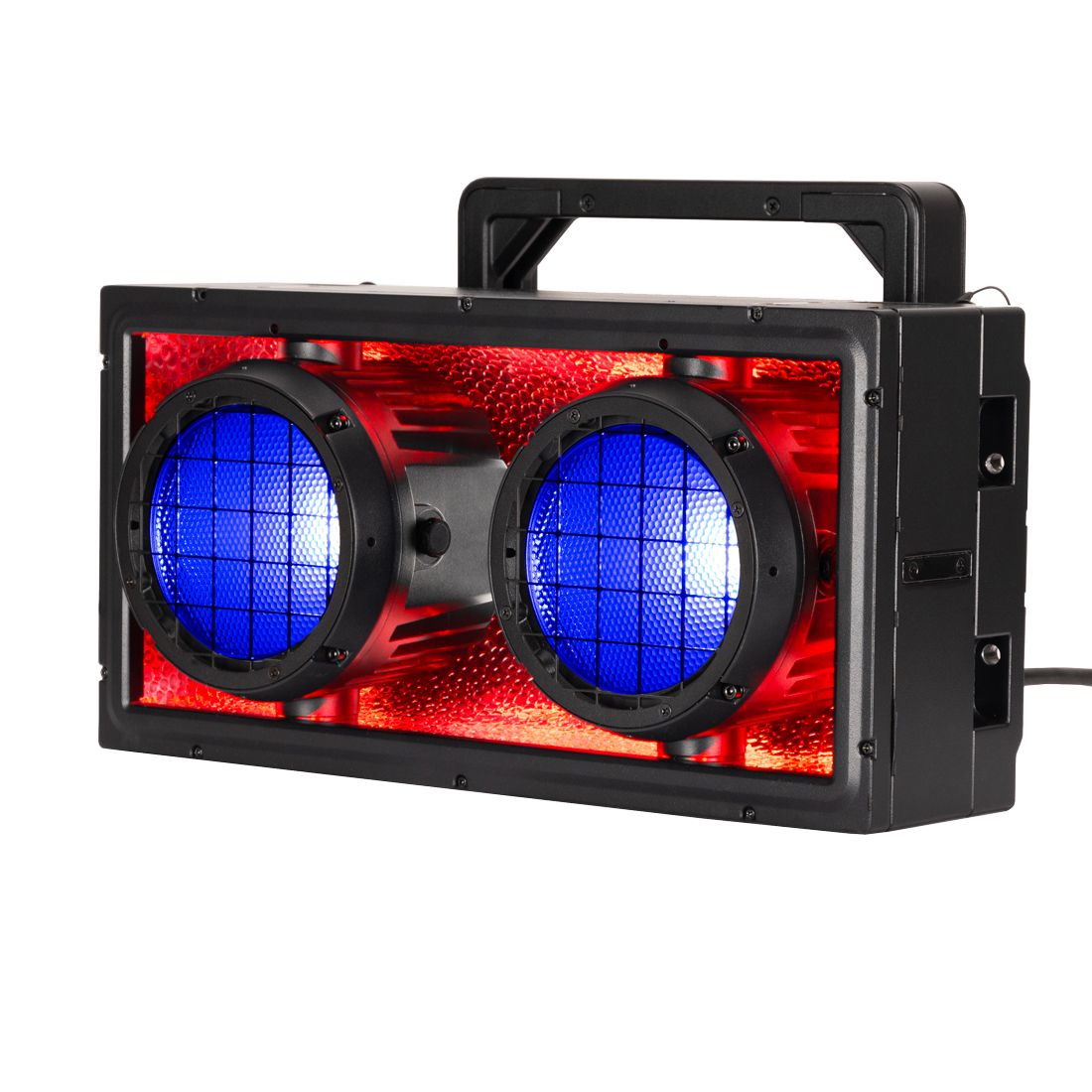

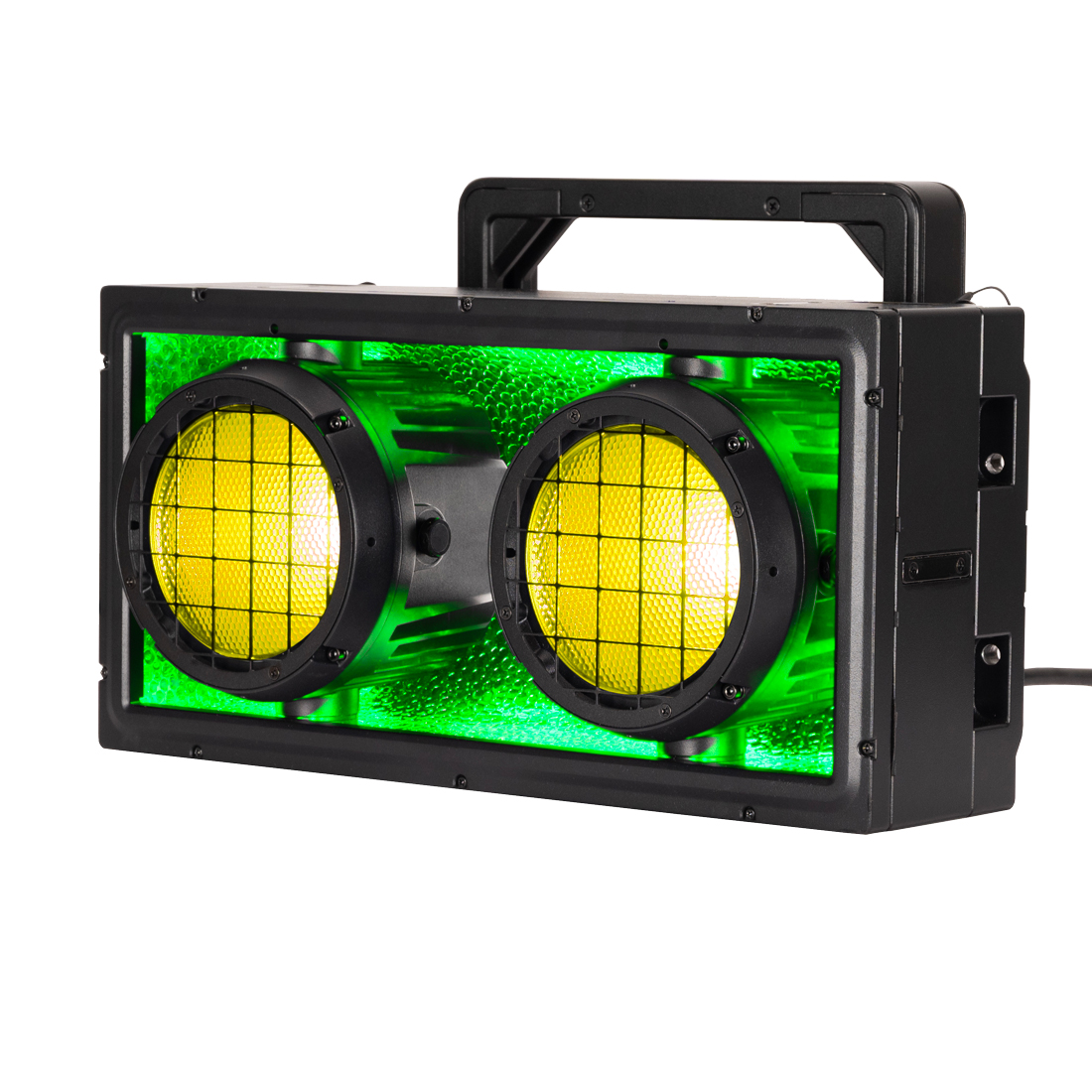

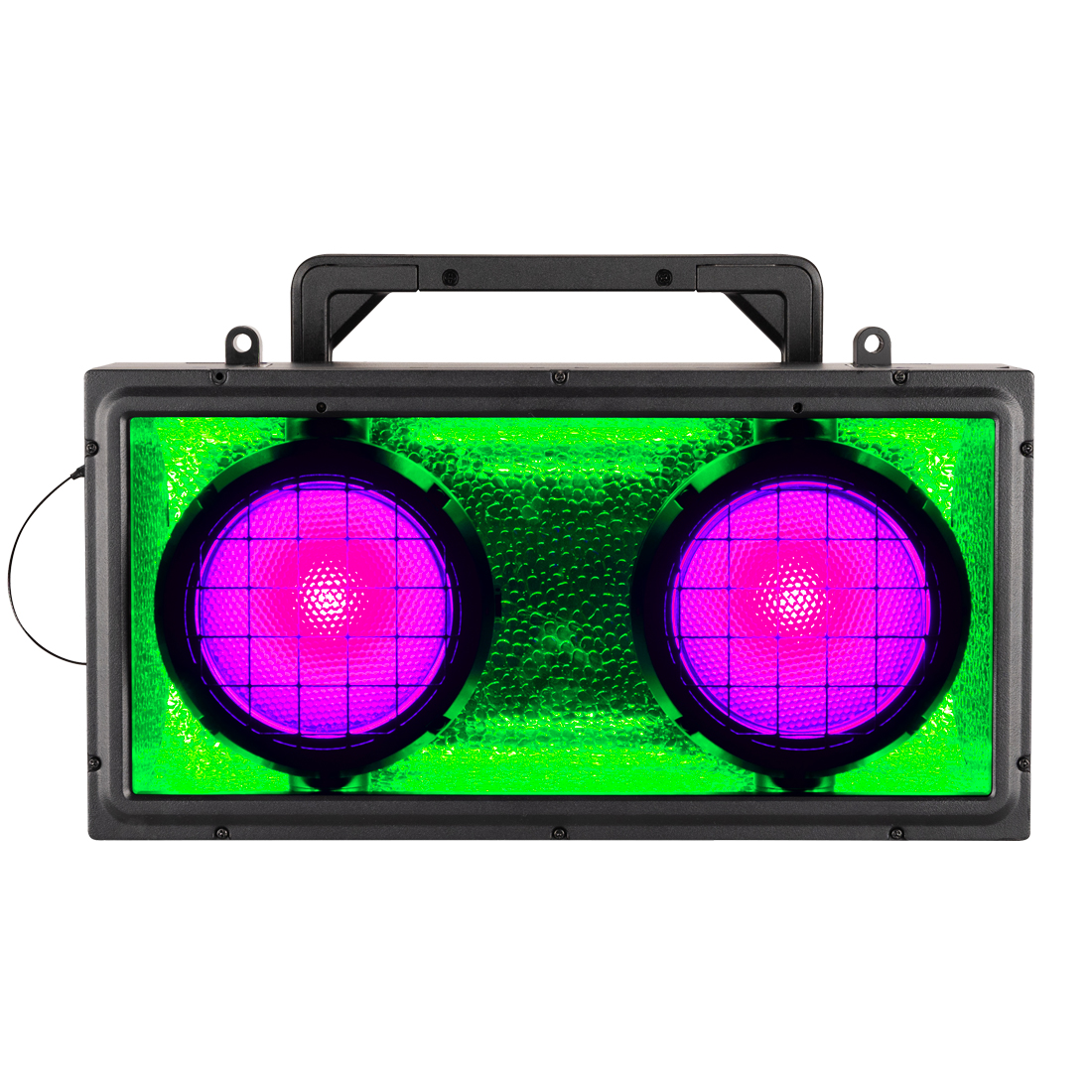

Encore DBX is a versatile and powerful effect fixture designed for creating striking visuals at any event. Featuring a 5-color LED dual-lens blinder/strobe and vibrant RGB background LEDs, it delivers dynamic lighting effects and intense audience interaction. Powered by two 150W RGBAW LEDs and backed by a high-output RGB reflector, the Encore DBX offers a total lumen output of 11,400+, producing rich colors and sharp contrast.
With features like individually controllable cells, built-in programs, and variable white color temperature (2700K–6500K), the Encore DBX provides exceptional creative flexibility. It includes selectable dimming modes, electronic strobe, and refresh rates (900Hz–25K) for smooth, flicker-free operation. The fixture is built to last with a rugged IP65-rated housing, making it suitable for both indoor and outdoor use. Control options include DMX512, Aria X2 Wireless Management, and Bluetooth, offering seamless integration into any lighting setup. The Encore DBX is the perfect solution for immersive lighting effects on stage productions, theatres and corporate events.

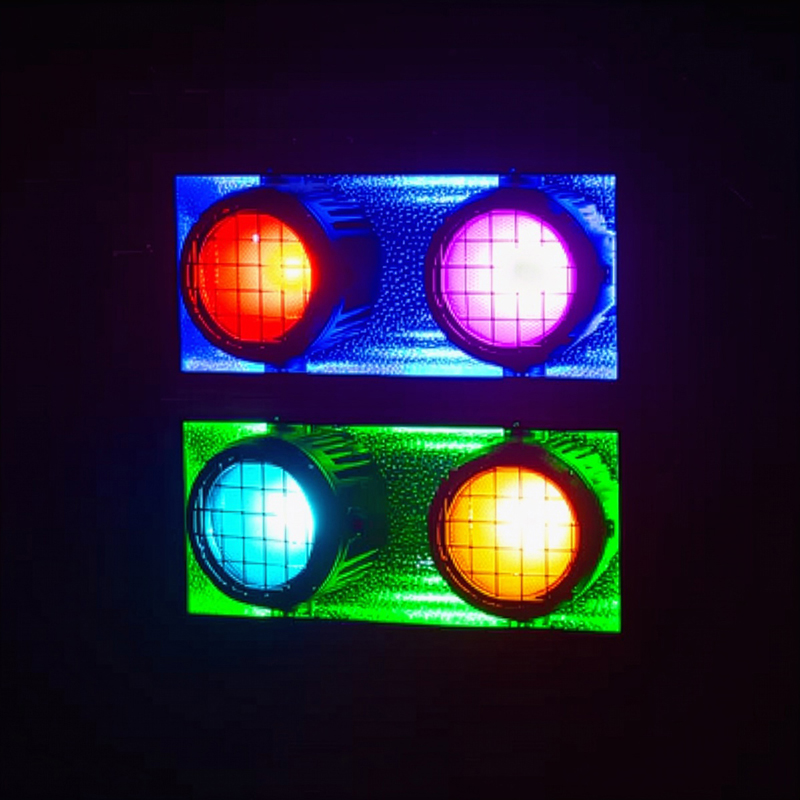

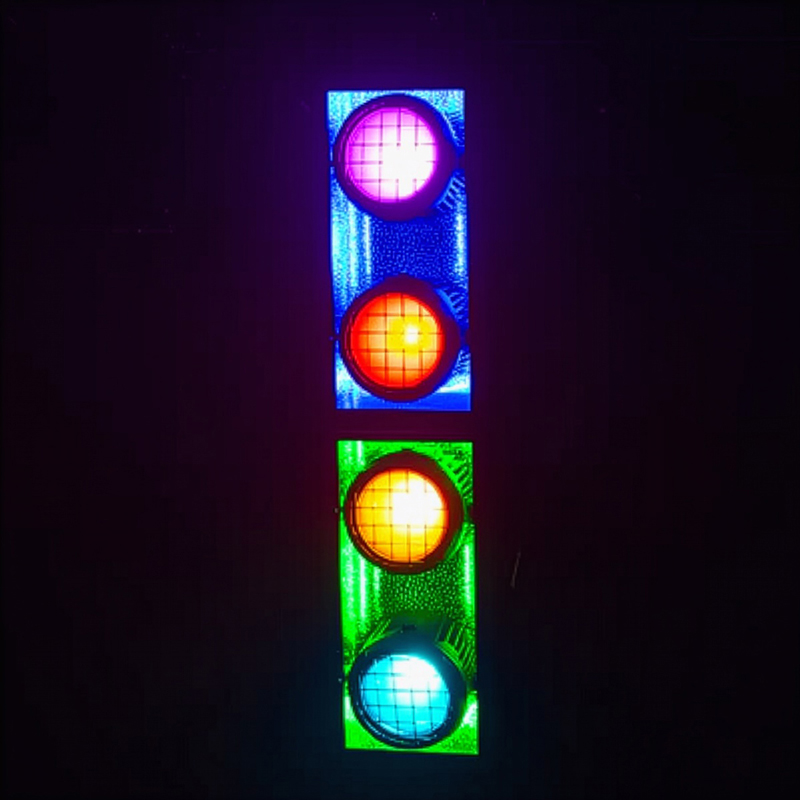

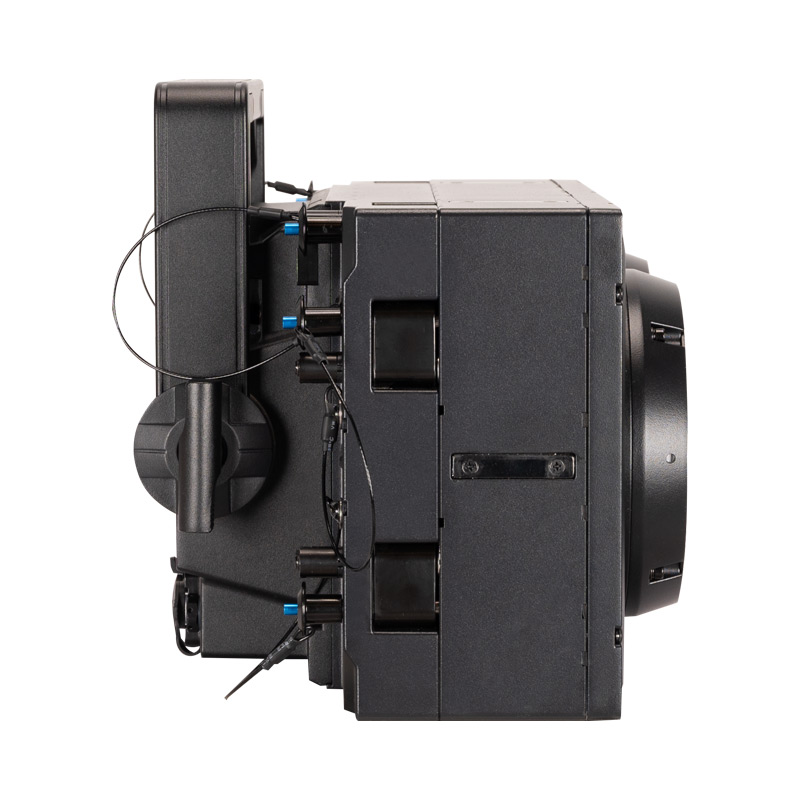

Multiple Encore DBX fixtures can be seamlessly connected in an array pattern, either horizontally or vertically, using the custom locking pin system. Up to eight units can be suspended in a vertical configuration.
Gallery
<div class="carousselLinks my-0 my-md
Specifications
Source:
- 2x 150W RGBAW LEDs
- RGB Background LEDs
- 50,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Features:
- 2 Cell, Five Color (RGBAW) LED Blinder
- Background RGB LEDs
- Individually Controllable Cells
- Built-In Cell Programs
- Built-In Background LED Programs
- Tungsten Control Mode
- Variable White Color Temperature Control (2,700K ~ 6,500K)
- User Selectable LED Refresh Rates (900Hz ~ 25K)
- 6 User Selectable Dim Modes
- 4 User Selectable Dim Curves
- Electronic Strobe (1 ~ 20Hz)
- Electronic Dimming
- Aria X2 Wireless Management System
- Seamless array connection (horizontal or vertical) via custom locking pin system, supporting up to 8 vertically suspended units
Photometrics:
- Total Lumen Output: 11,465
- CRI: 89
Optical:
- Beam Angle: ?
- Field Angle: ?
Effects:
- Variable Strobe Rate: 1- 20Hz
- Variable 16-bit Dimming Modes and Curves
- RGB Background Reflector Effect
Color:
- RGBAW Color Array
- RGB Background
- Variable CCT 2700K - 6500K
- Five Preset CCTs
Physical:
- IP65 Housing
- OLED Digital display
- Custom locking pin system for horizontal/vertical array connection, allowing suspension of up to 8 units vertically

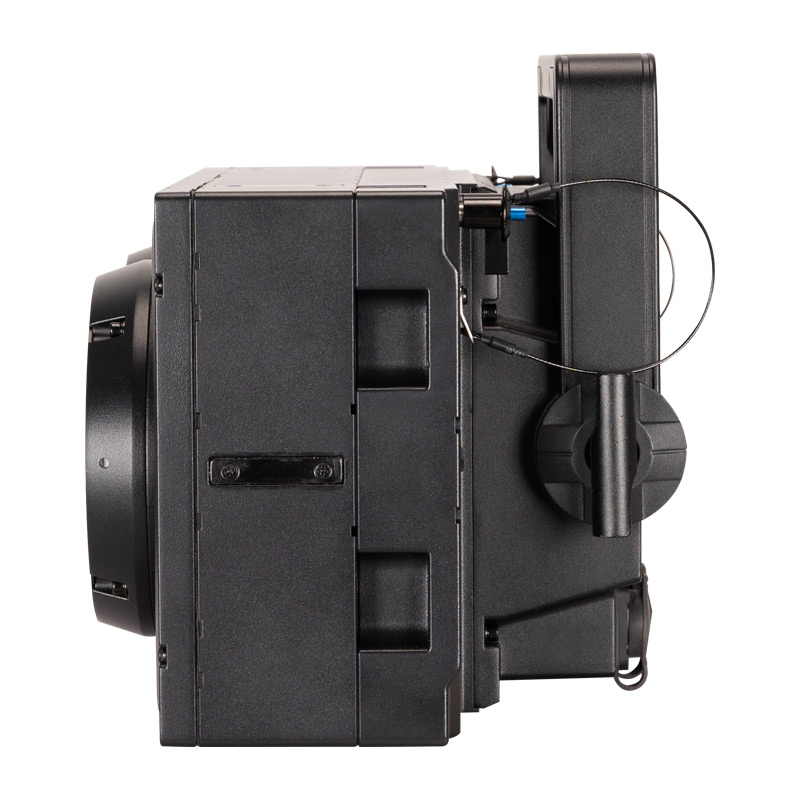

- Adjustable Mounting Yoke with Omega Receivers
- Second Set of Omega Receivers on Rear
Control:
- DMX512
- Aria X2 Wireless Management / DMX System
- Bluetooth
- RDM (Remote Device Management)
- (17) DMX Channel Modes (1CH / 2CH-A / 2CH-B / 4CH / 5CH / 8CH / 10CH / 11CH / 12CH-A / 12CH-B / 16CH / 18CH / 19CH / 21CH / 22CH / 25CH / 26CH / 29CH / 31CH / 35CH / 41CH modes)
- On-board Manual Control Mode
- Primary / Secondary Mode

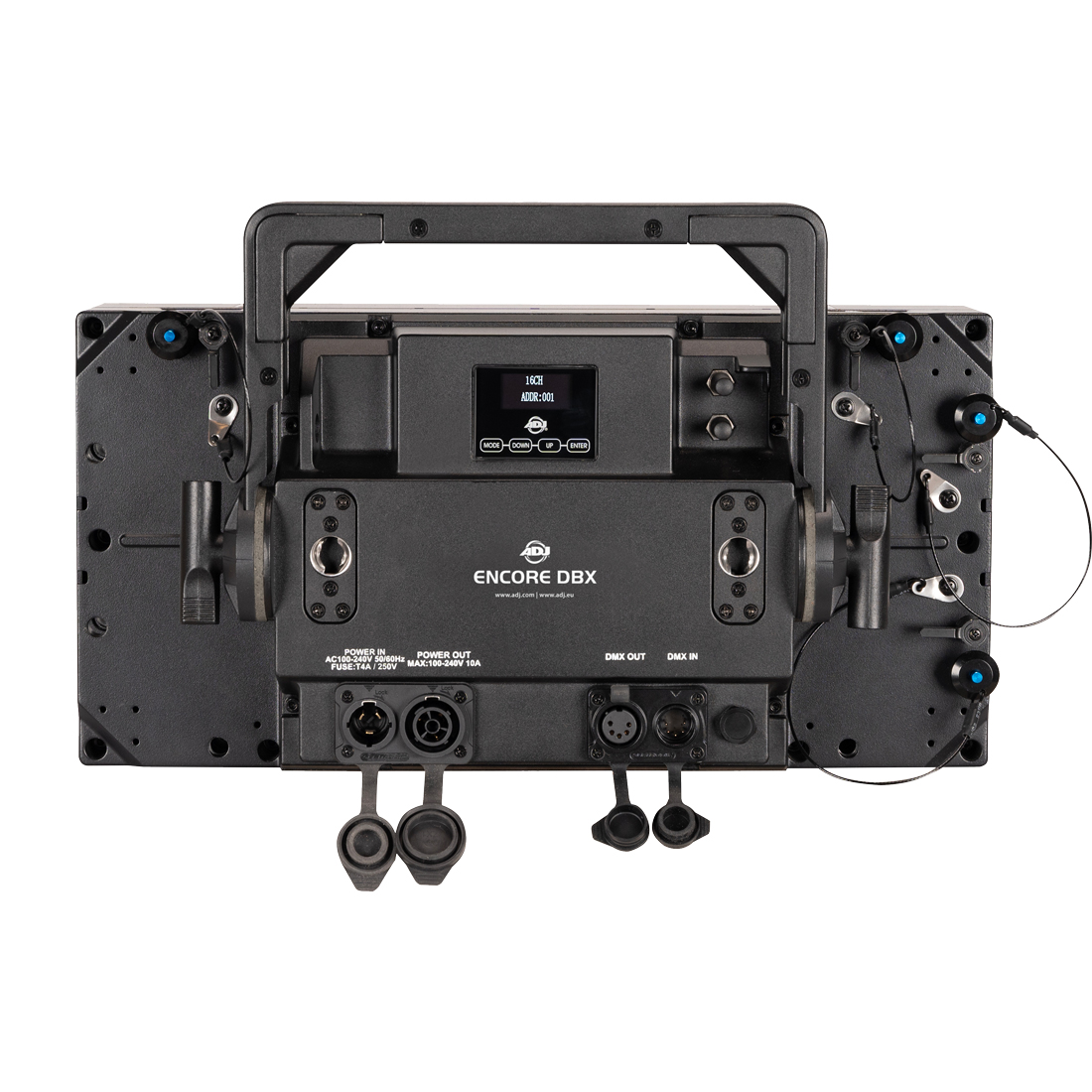

Connections:
- 5-pin XLR IP65 DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
- IP65 Locking Power Sockets
Dimensions & Weight:
- Length: 420mm Width: 261mm height: 231.3mm
- Weight: 11.85 kg
Power:
- AC100-240V/50Hz-60Hz Input
- 347W Power Consumption
- Link 2 pieces @120VAC or 6 pieces @ 230VAC
Thermal:
- Ambient Operational Temperature: -20°C to 45°C
- Storage Temperature: -30°C to 45°C
Certifications & IP Rating:
- IP65
