Encore FR Pro Color

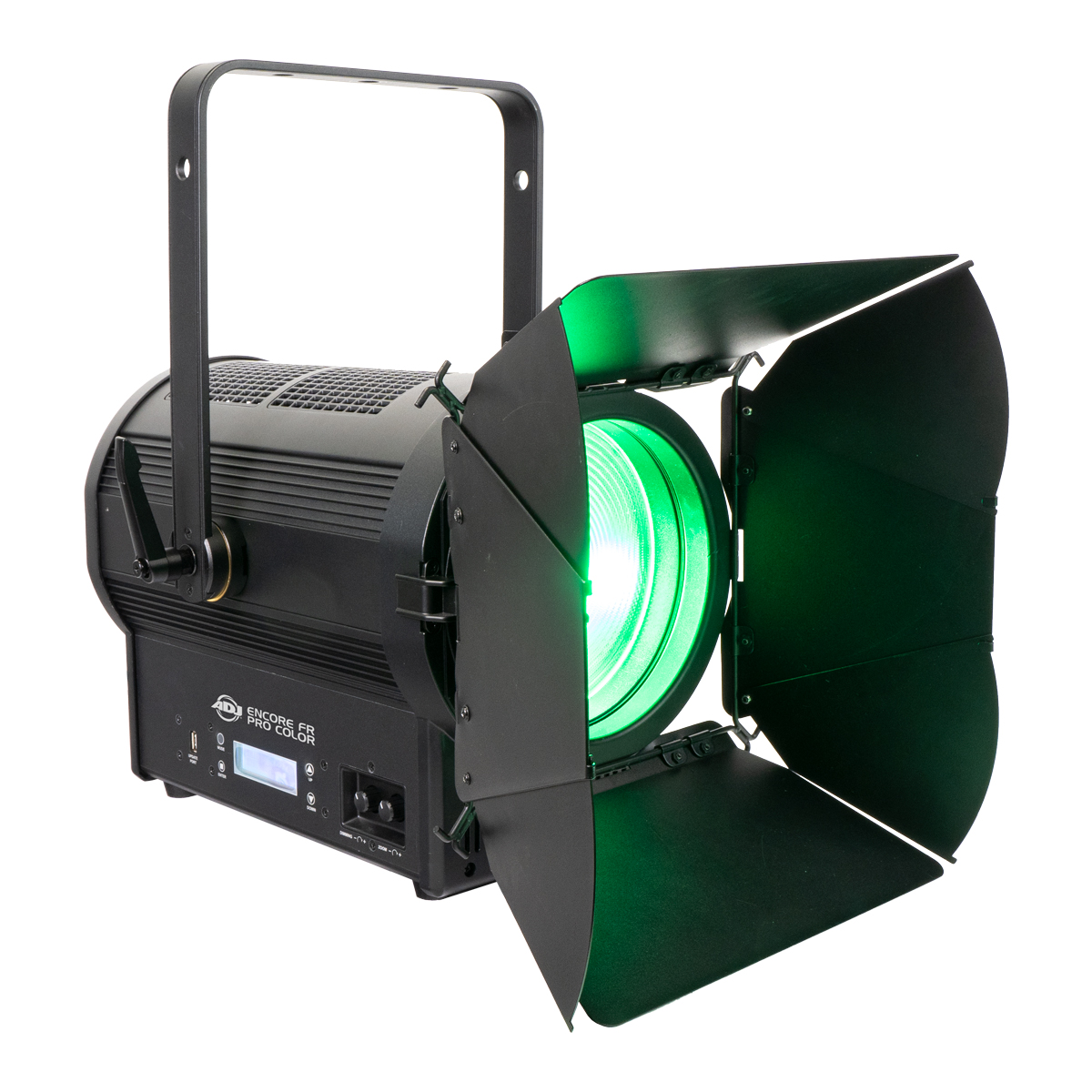

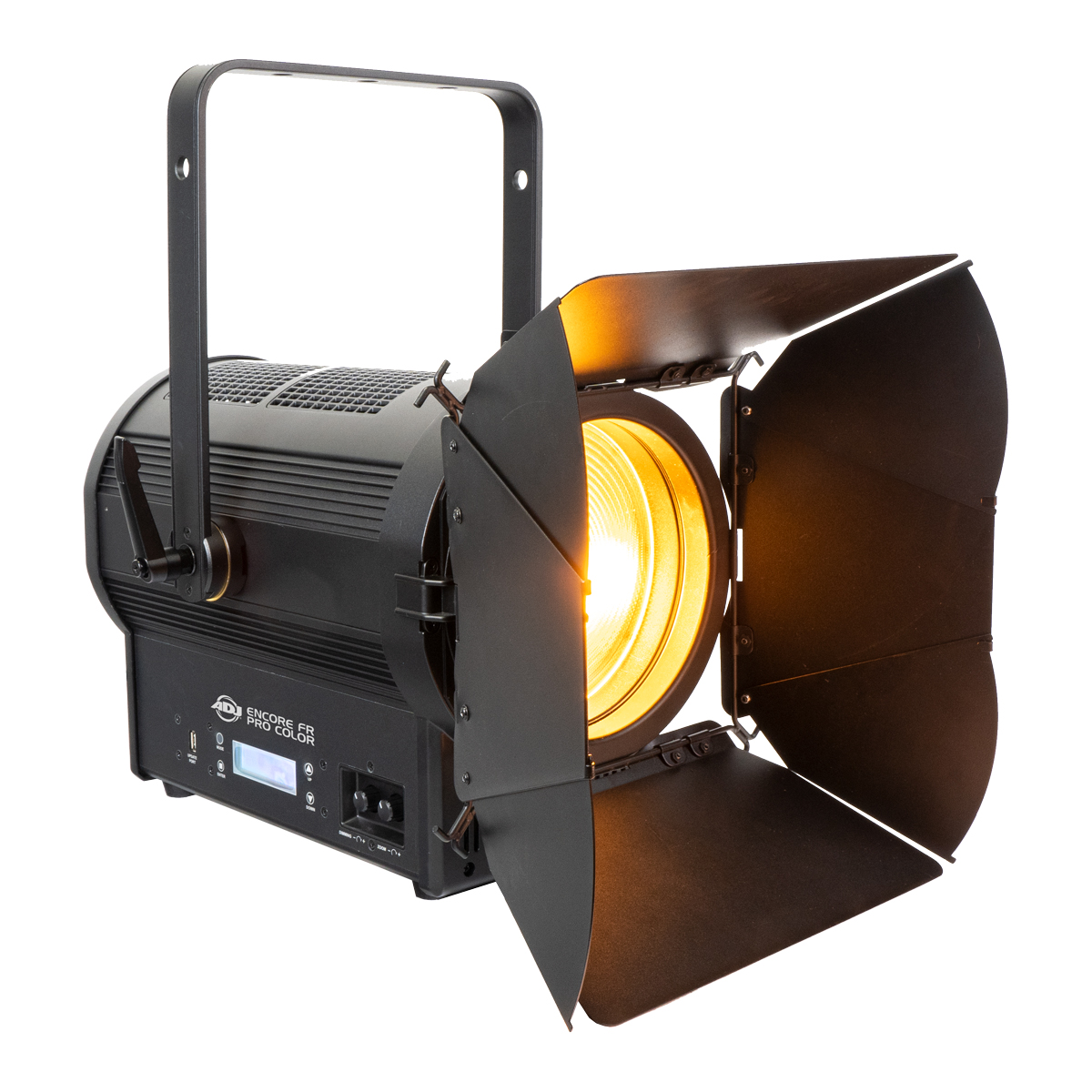

The ADJ Lighting Encore FR Pro Color is a professional grade Fresnel fixture with a 7-inch lens designed for key light, as a fill light and as a back light.
View on ADJ siteOverview
The ADJ Lighting Encore FR Pro Color is a professional grade Fresnel fixture with a 7-inch lens designed for key light, as a fill light and as a back light. It offers a full spectrum of colors with (virtual) CMY Color Mixing DMX modes, and tunable white color temperatures from 2400K to 8500K. It’s powered by a 400W 6-IN-1 LED engine with red, green, blue, amber, lime and cyan LEDs.
The Encore FR Pro Color has a motorized zoom range of 9~37°, a high CRI rating with an output of more than 9,000 Lumens. There are an abundant of on-board features such as 5 DMX control modes, 6 Dim Curves, preset color macros, and adjustable refresh rates.
The fixture has DMX-512 and RDM protocols, a USB service port, a 4-Button control panel LCD menu display, 3 & 5-pin DMX In/Out sockets and locking power In/Out to daisy chain power from one fixture to another.
A rotating 8-leaf barn door, gel frame and power cord are included with the fixture.
Gallery
<img src="https://www.adj.eu/media/catalog/product/cache/2d30
Video
Specifications
Source:
- 1X400W 6-IN-1 LED (Red, Green, Blue, Amber, Lime and Cyan)
- 50,000 Hour Average LED Life
Photometric data:
- 9.237 Total Lumen Output (Full ON, Zoomed Out to Full)
- 23.179 LUX/2.153 FC @2m (Zoomed In / Full ON)
- 2.860 LUX/266 FC @2m (Zoom Out / Full ON)
- Beam Angle 9° - 37°
- Max Field Angle 50°
- Color Temperature: Tunable, 2400K to 8500K
- CRI: 94+
Effects:
- Motorized zoom
- Electronic Dimmer and Strobe (1-20Hz)
- Variable 16-bit Dimming Modes and Curves
- Virtual CMY Color Mixing DMX Control Modes

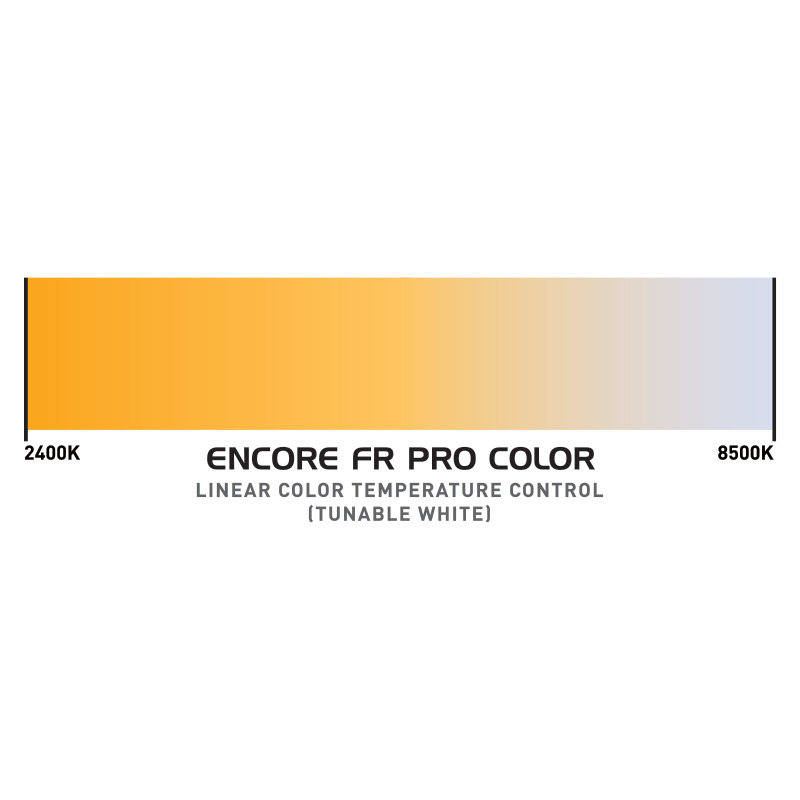

- Tunable White Color Temperature from 2400K to 8500K
- 62 Preset White Color Temp Macros (2400K to 8500K)
- Virtual Color Swatch Book with 60 preset colors
- 64 Preset RGBA Color macro's
Control/Connections
- Dimmer and Zoom Rotary Dials
- 5 DMX Channel Modes (14 / 17 / 19 / 13 CMY / 19 CMY)
- 4 Button Control Panel LCD Menu Display
- Adjustable Refresh Rate (68 presets from 900 – 25,000Hz)
- 6 Preset Dim Modes (Standard, Stage, TV, Architectural, Theatre and Stage 2)
- Dim Speed Options (0.1s to 10s)
- 4 Dim Curves (Square, Linear, Inv. Squa and S. Curve)
- RDM (Remote Device Management)
- 3/5pin DMX and IP65 Locking Power Cable In/Out
- Locking Power Input and Output
- USB Service Port
Noise Level:
- -36dB @ 1m
Dimensions & weight:
- Length: 414.5mm
- Width: 360.1mm
- Vertical Height: 490mm
- Weight: 9.45kg
Electrical/Thermal:
- AC 100-240V - 47/63Hz
- 450W Max Power Consumption
- -15°C to 45°C
- Power Linking: 5 Pcs @ 240V
