Encore FR150Z
Part of the Encore stage lighting series, the Encore FR150Z lighting fixture is equipped with an 8-inch Fresnel lens and powered by a 130W LED engine.
View on ADJ siteOverview

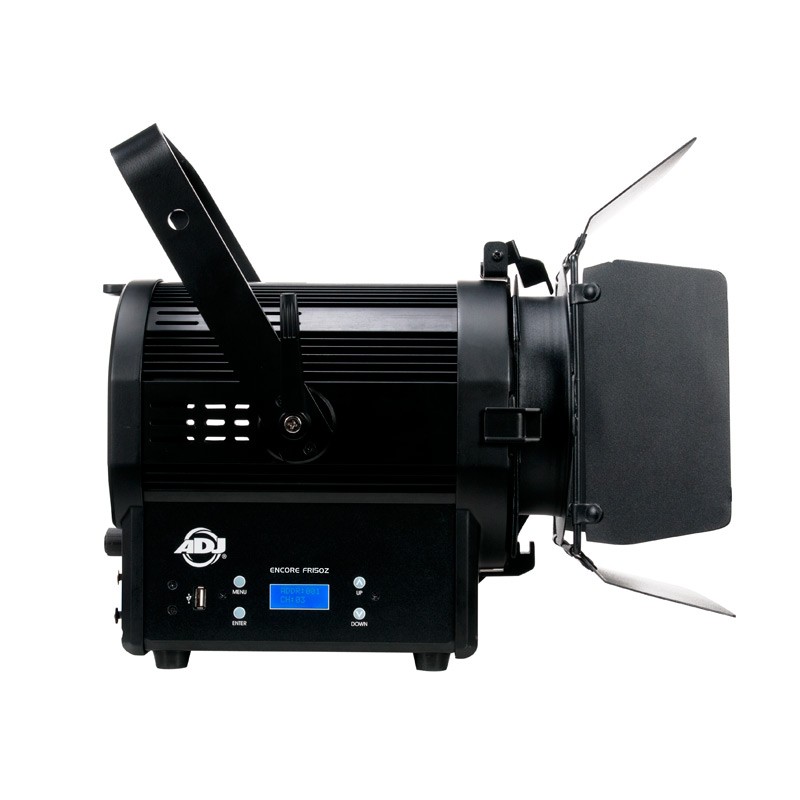

Part of the Encore stage lighting series, the Encore FR150Z lighting fixture is equipped with an 8-inch Fresnel lens and powered by a 130W LED engine. It produces a white wide, soft-edged beam for stage and theatre use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual know to change the beam angle from 15 to 38 degrees.
The Encore FR150Z has a 4-button LCD operational menu, 3-pin and 5-pin DMX In/Out and Locking Power In/Out to daisy chain the power from one fixture to another.
Gallery
<div clas
Video
Specifications
Source
- Light Source: 1 WW COB-LED
- Individual LED wattage : 130W
- Average LED lifetime : approximately 50,000 hrs.
- Color Temperature: 3000K

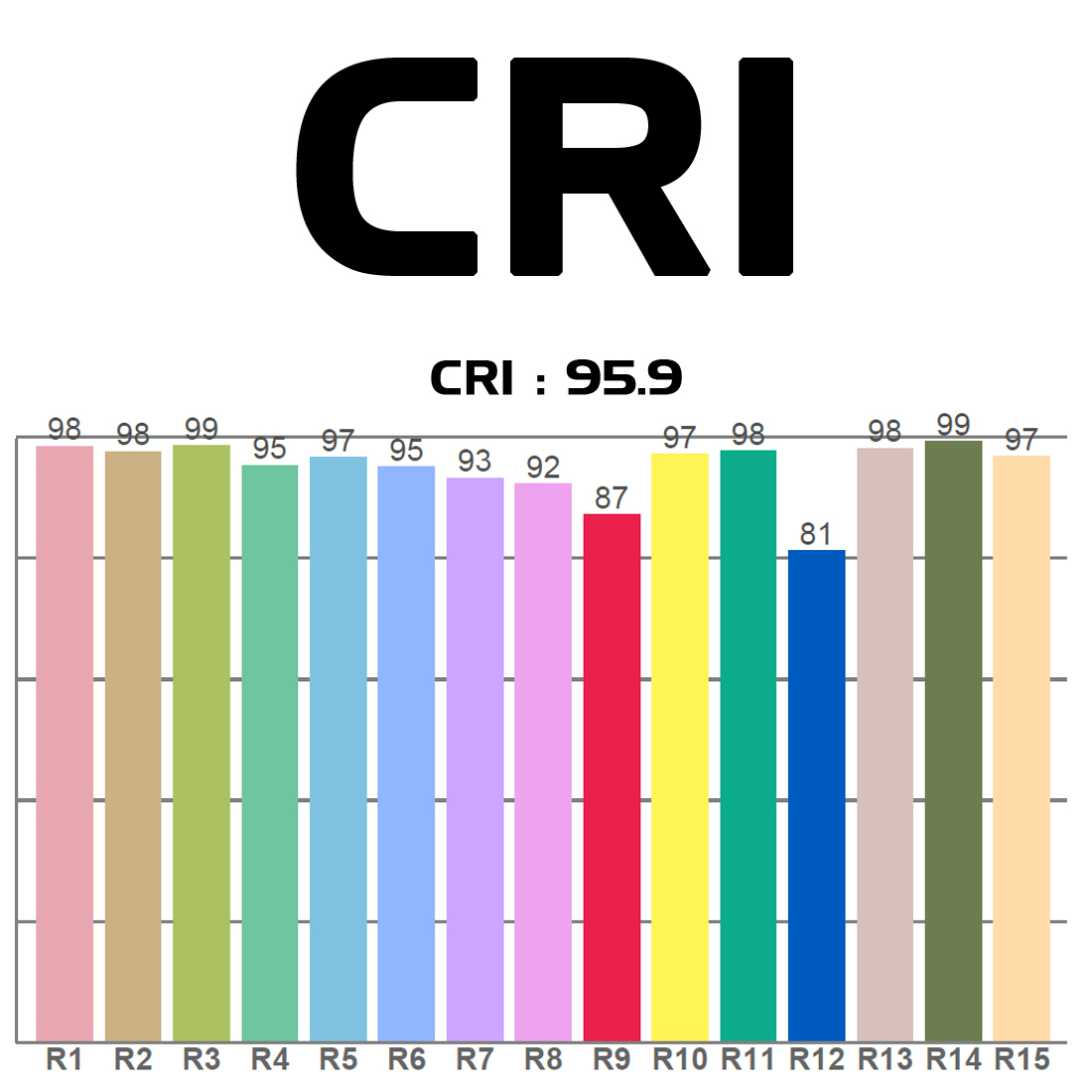

- CRI: 95.9
Optics
- Adjustable Beam Angle: 15-38 degrees
- 8-inch/200mm Fresnel Lens
Control
- 2 operational Modes : Manual WW Dimmer Mode and DMX Control
- 6 DMX Modes: 1, 2, 2-2, 3, 2-3 & 4-channel
- RDM compatible
- 16bit Electronic Dimming: 0 - 100%
- 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
- Adjustable Dim Curves (Linear, Square, Inv. Square and S-Curve)
- Adjustable Fanmodes (Auto, Low, High)
- LED pulse and strobe effect
- 4-button, DMX digital display on rear panel
Colors
- Warm White 3000K
Construction
- Robust extruded aluminium housing
- Manual Zoom Knob
- Barndoors included
Electrical
- Multivoltage 100-240V 50/60Hz
- Power Consumption: 150W

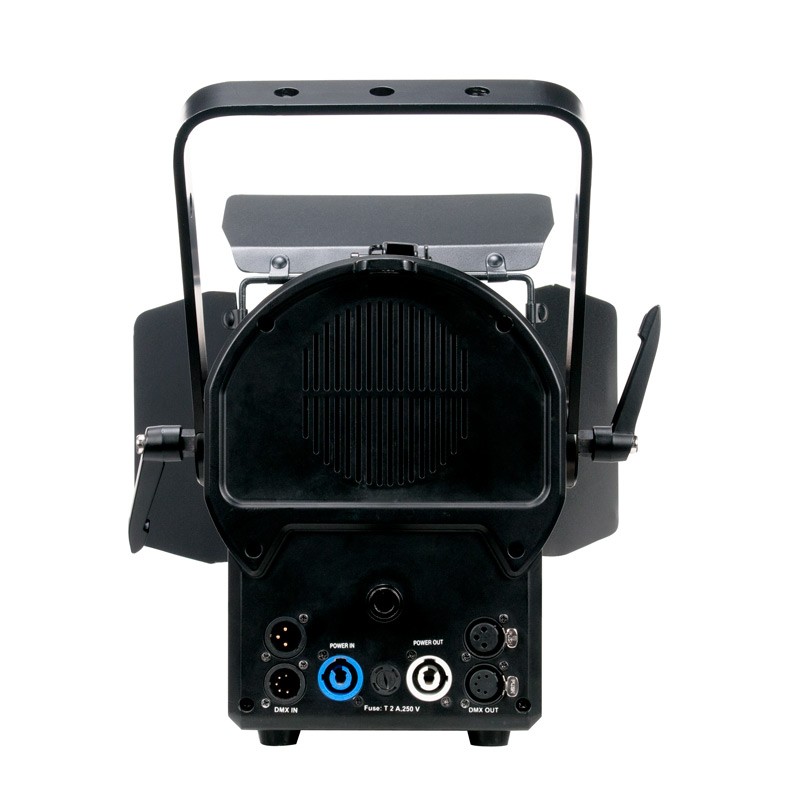

Connections
- 3 & 5-pin Locking DMX In/Out connections
- Locking Power In/Out connections
- USB port for Firmware Update
• Dimensions (LxWxH):
- Without Barndoors: 276 x 298.62 x 416mm
- With Barndoors: 422.23 x 298.62 x 416mm
