Entour Pileus
The Entour Pileus, the latest addition to ADJ’s renowned Entour Series, is a versatile, professional-grade multifunctional fog and faze machine tailored for large-scale…
View on ADJ siteOverview

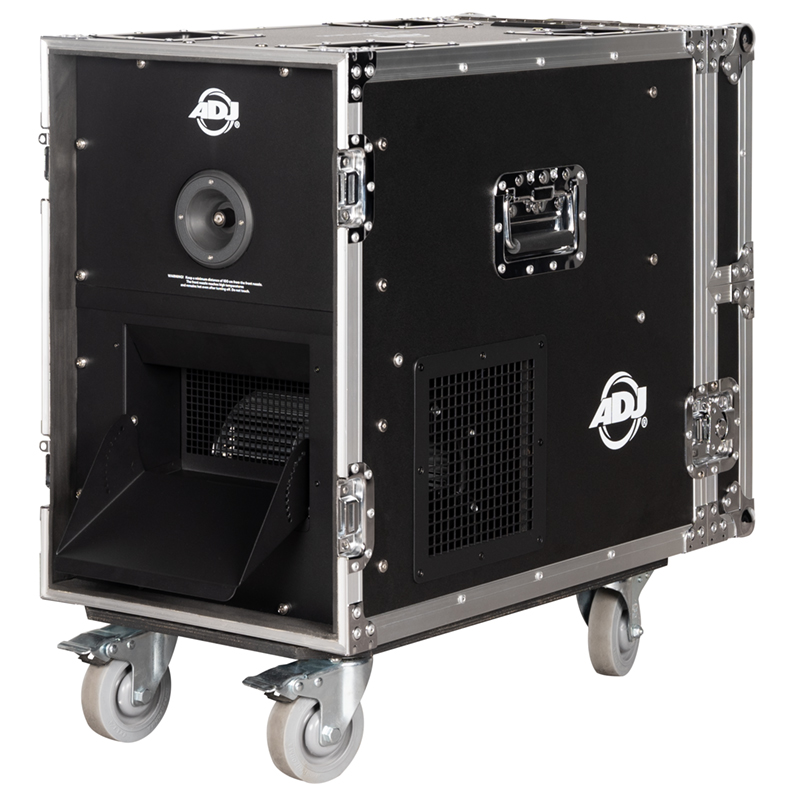

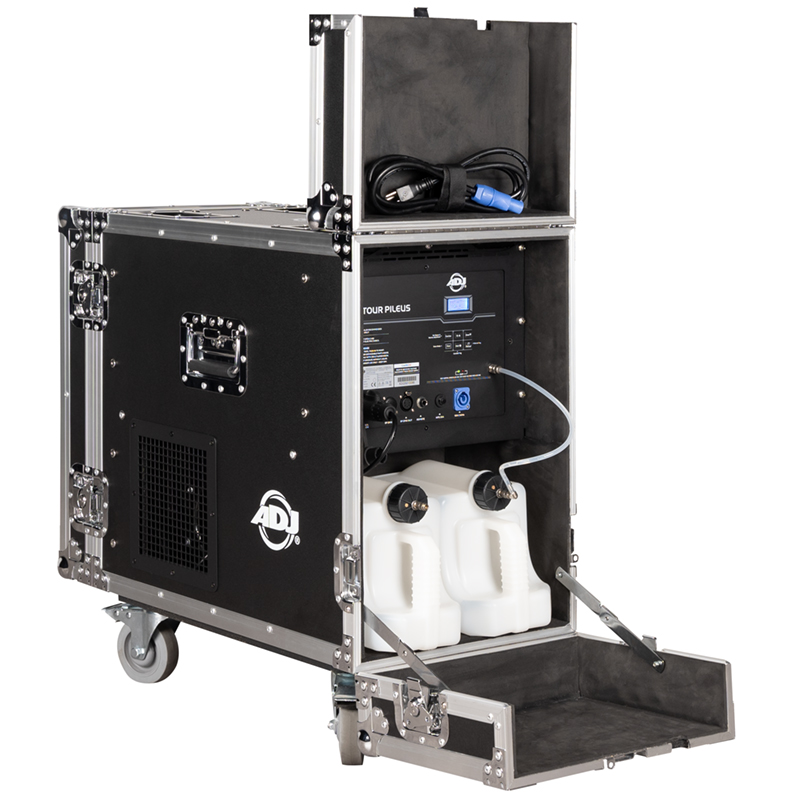

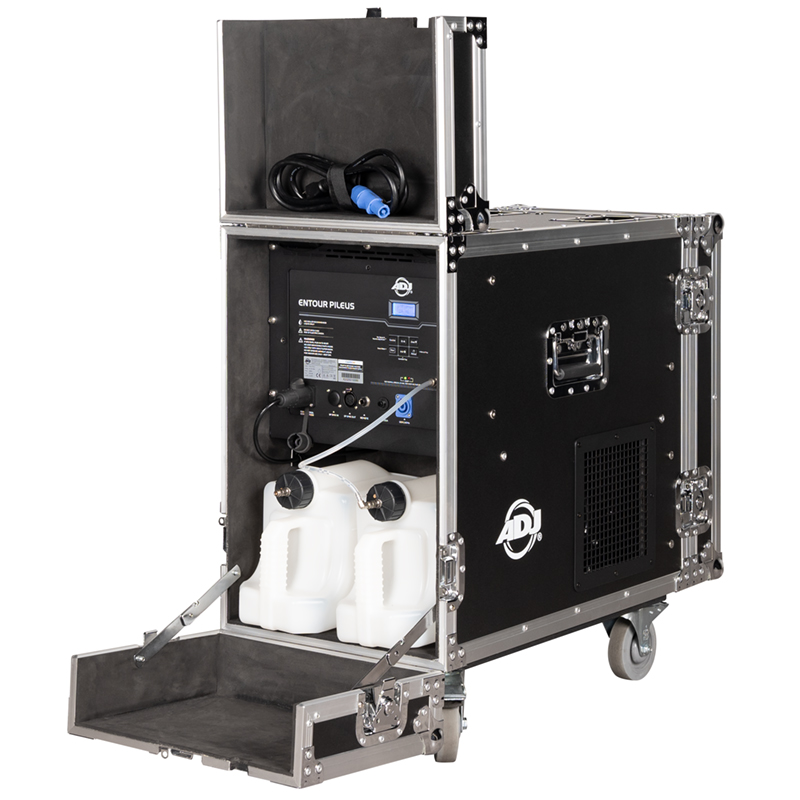

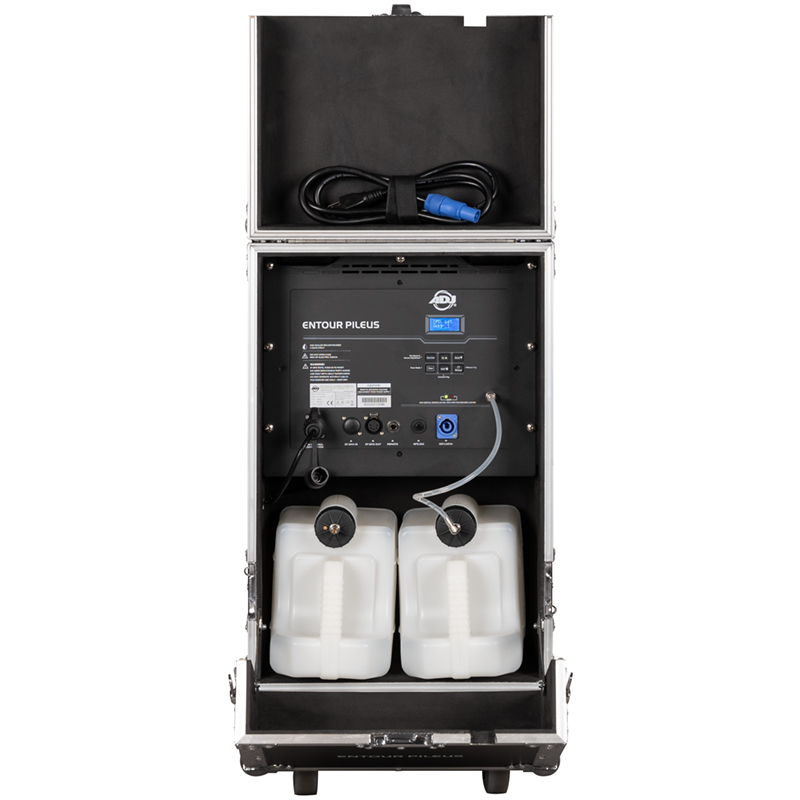

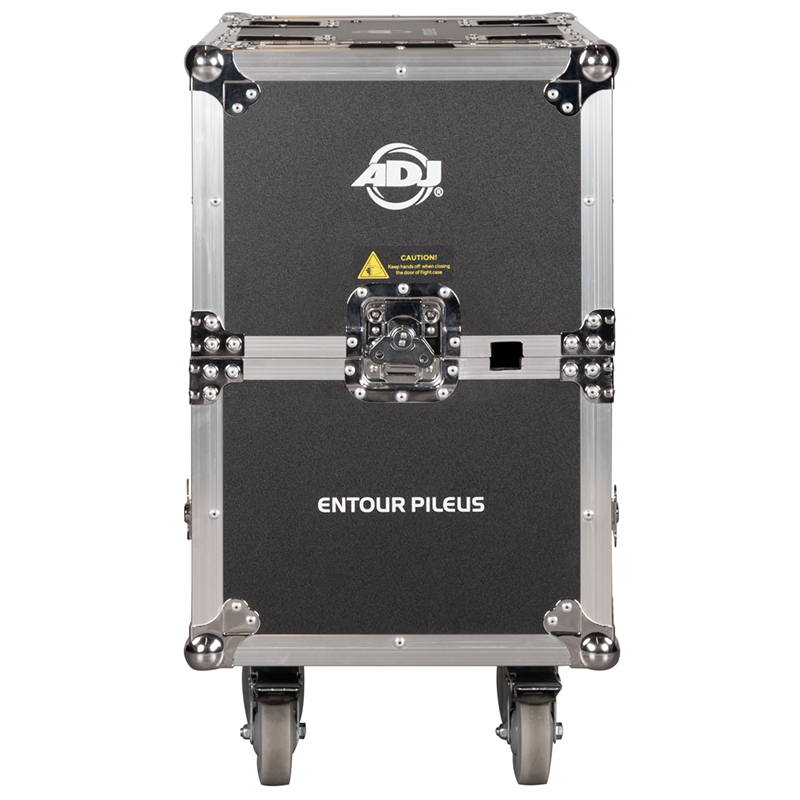

The Entour Pileus, the latest addition to ADJ’s renowned Entour Series, is a versatile, professional-grade multifunctional fog and faze machine tailored for large-scale productions. Encased in a durable flight case with locking castors, this robust machine offers the flexibility to produce either powerful fog bursts or a fine, faze-like mist using standard water-based fog fluid. Equipped with a high-performance 1500W heater, a variable-speed dispersion fan, and advanced fluid consumption management, it ensures precise output control and continuous operation for up to 35 seconds. Capable of delivering a remarkable 60,000 cubic feet of output per minute, the Entour Pileus can easily fill even the largest venues. With dual 5.6L fluid tanks, a 16.5-minutes warmup time, multiple control options, 5-pin DMX In/Out, and a cutting-edge self-cleaning system, it’s the perfect atmospheric generator for tours and large-scale events.
Gallery
Video
Specifications
Features:
- Creates thick Fog or thin Faze Output
- On Board Control Timing Control
- Remote controller connectors 1/4" Jack

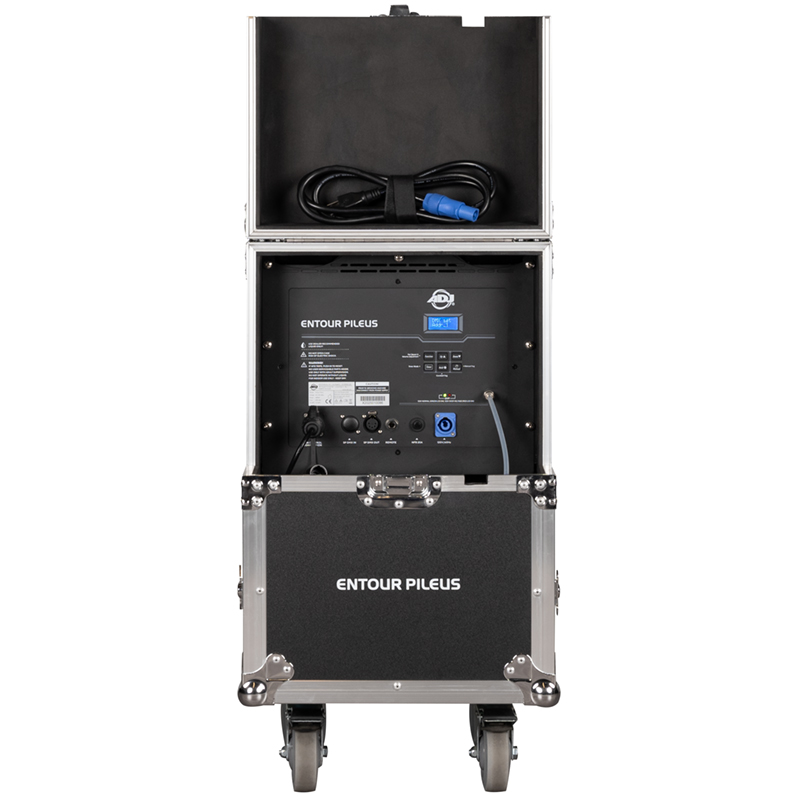

- LCD Display with 4-button Control
- OVP - Over Voltage Protection
- 3 DMX Channel Modes: 1CH, 2CH, 4CH
- Rugged Road Case Housing
- Heavy Duty Locking Casters

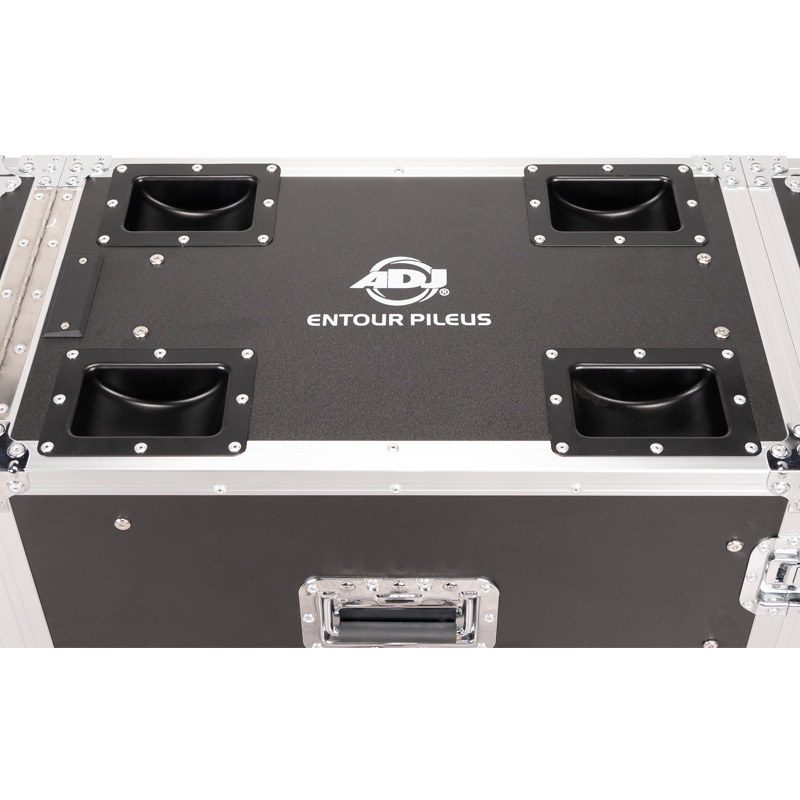

- Stacking Cups on Top of Case
Performance:
- Fog Output (cu.ft/min): 60,000
- Fluid Consumption Rate: Max. 180ml/min., Min. 38ml/min
- Fog Output Adjustment: 5-100%
- Fan Speed Adjustment: 5-100%
- Max Continuous Output Duration (sec.): 35s
- Self-cleaning Duration (sec.): 30s
- Warm-up Time (min): 16.5
