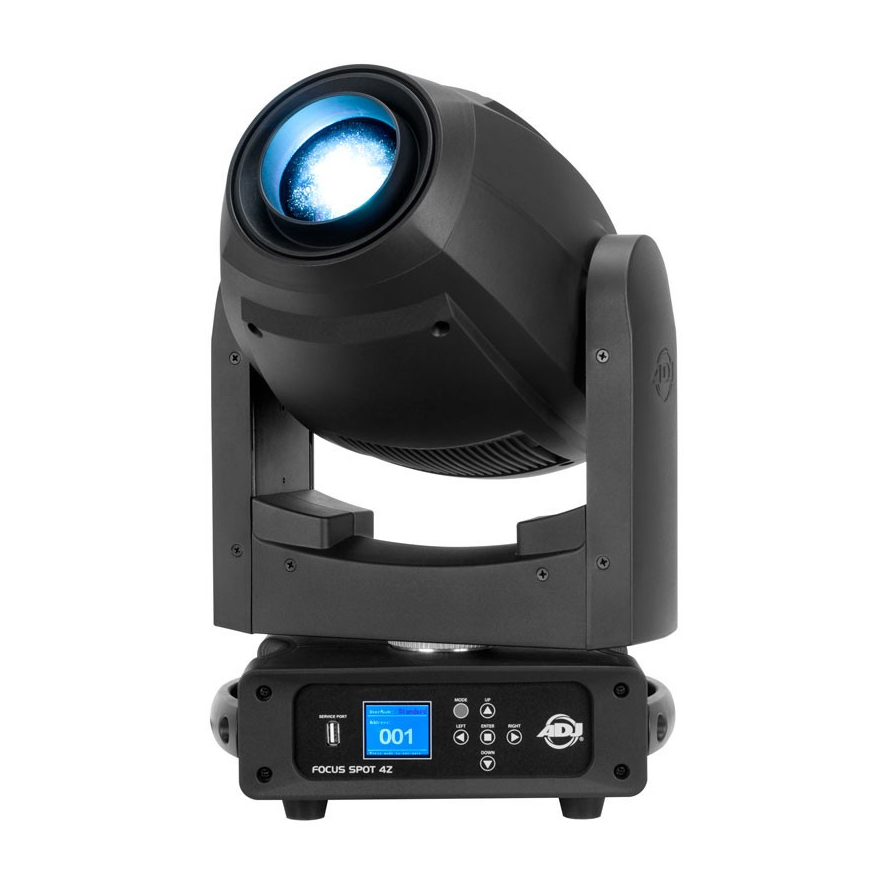

Focus Spot 4Z
The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom).
View on ADJ siteOverview
The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular). The Focus Spot 4Z has Locking Power In and out connectors to daisy chain the power, as well as Locking 3-pin DMX In/Out to transmit a DMX signal from one fixture to the
Video
Specifications
Source
- Source: Cool White LED Engine, 24.000K
- 7000 Lumen
- CRI: 76
- Individual LED wattage : 200W
- Average lifetime: approximately 50,000 hrs
Optics

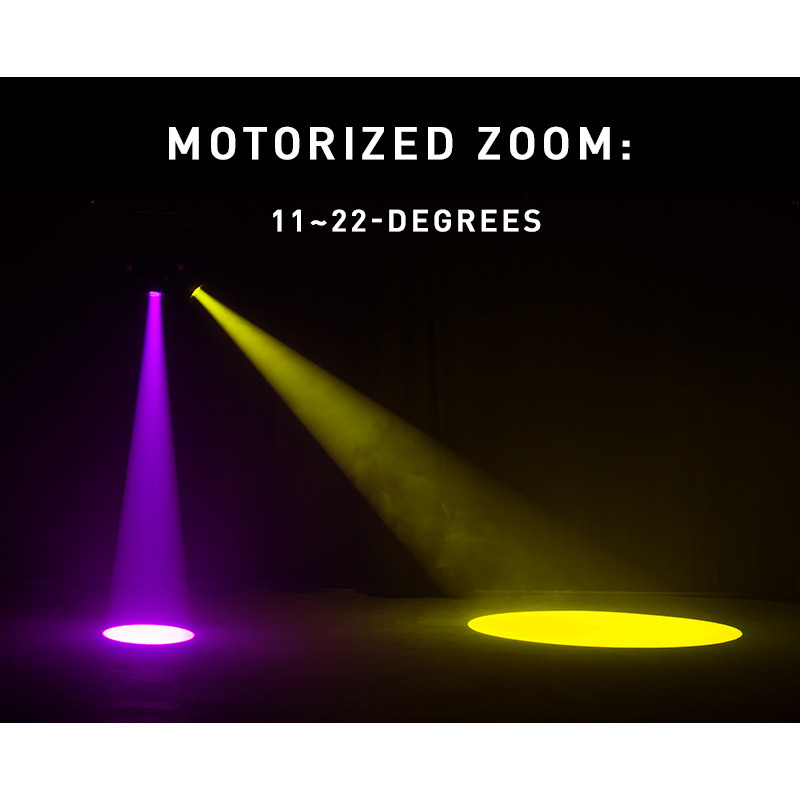

- Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
- Motorized Focus

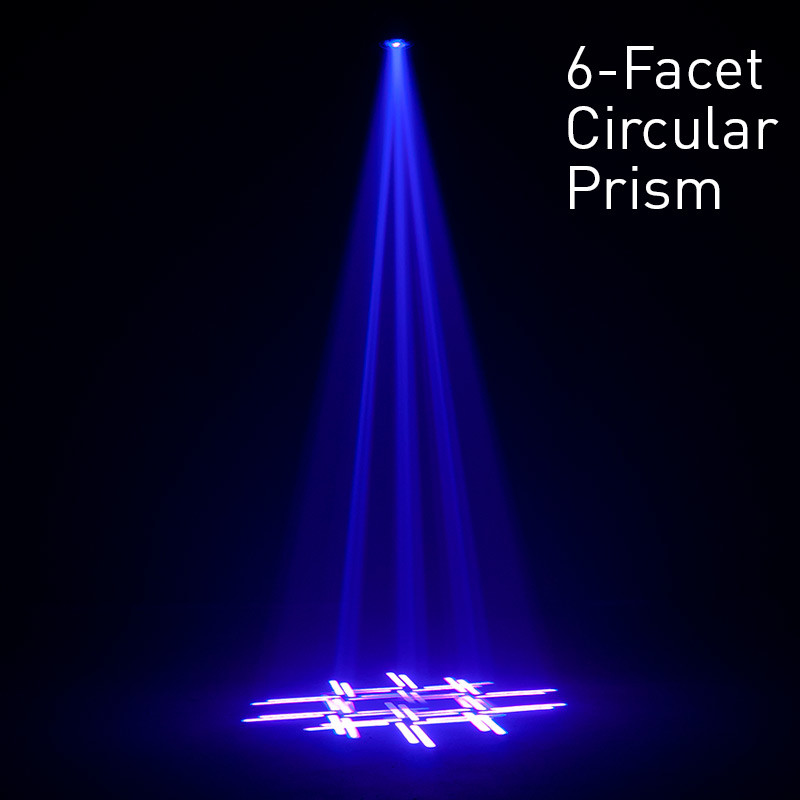

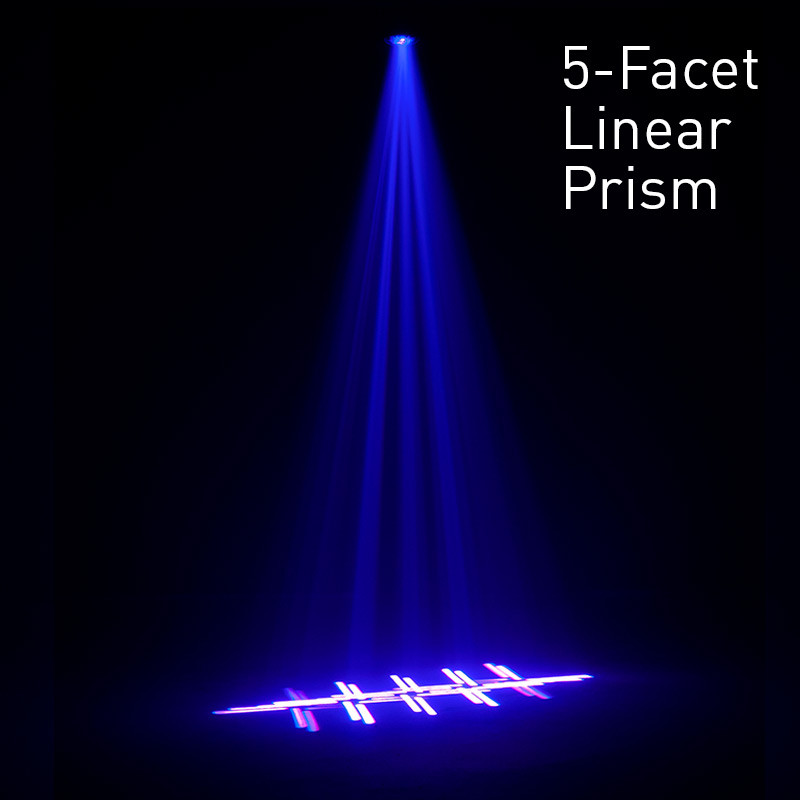

- Rotating 5-facet Linear & rotating 6-facet Circular Prism
Control
- 2 operational modes : Program Mode or DMX control
- 3 DMX Channel Modes: 16/18/22 Channels
- RDM compatible (Remote Device management)
- Internal Programs with built-In DMX Recorder
- 16bit dimming 0-100%
- 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
- Adjustable Gamma Brightness : 2.0 / 2.2 / 2.4 / 2.6 or 2.8
- Adjustable LED Refresh Rate from 900Hz to 25kHz for flickerfree operation
- Various strobe effects
- 6-button Color display
- Battery inside, allowing to access the fixture Menu without power connection
- 16bit Pan: 540 & 630 degrees
- 16 bit Tilt: 270 degrees
- 3 Fan settings : Auto, High and Low Noise
Colors
- 1 color wheel with 8 dichroic colors + white
Gobos

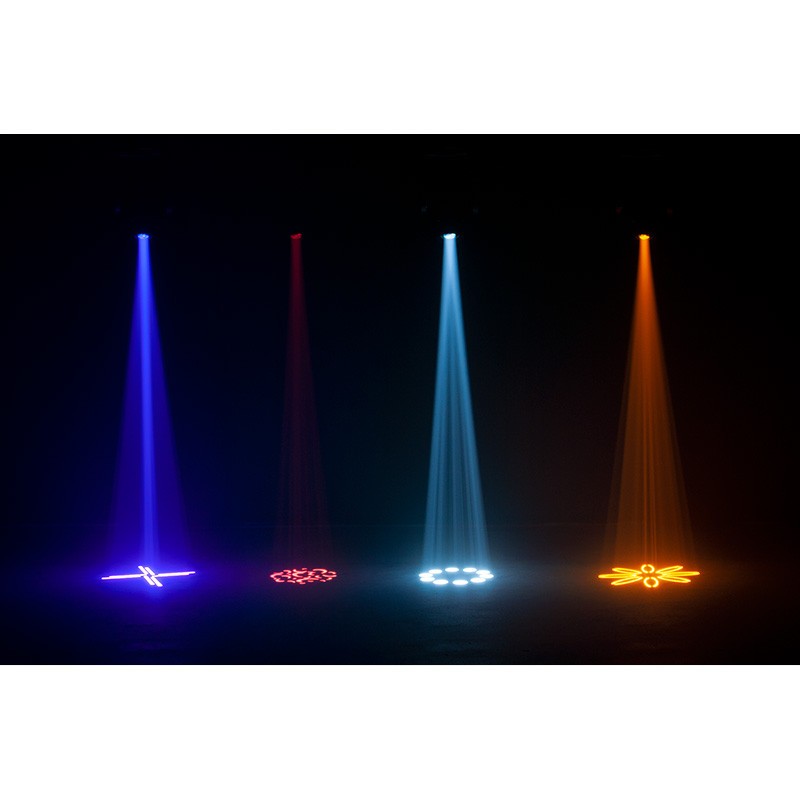

- 1 gobo wheel with 6 aluminum GOBOs + open
- All gobos removable, rotatable and indexable
- Gobo Shake Effect
- Gobo size: 22,5mm (outer); 19mm (viewable); 0.5-2mm (thickness)
Construction
- Plastic housing
- 2 cooling fans
- Omega bracket with quick locks
Electrical
- Multivoltage : 100-240V 50/60Hz
- Power Draw : 256W

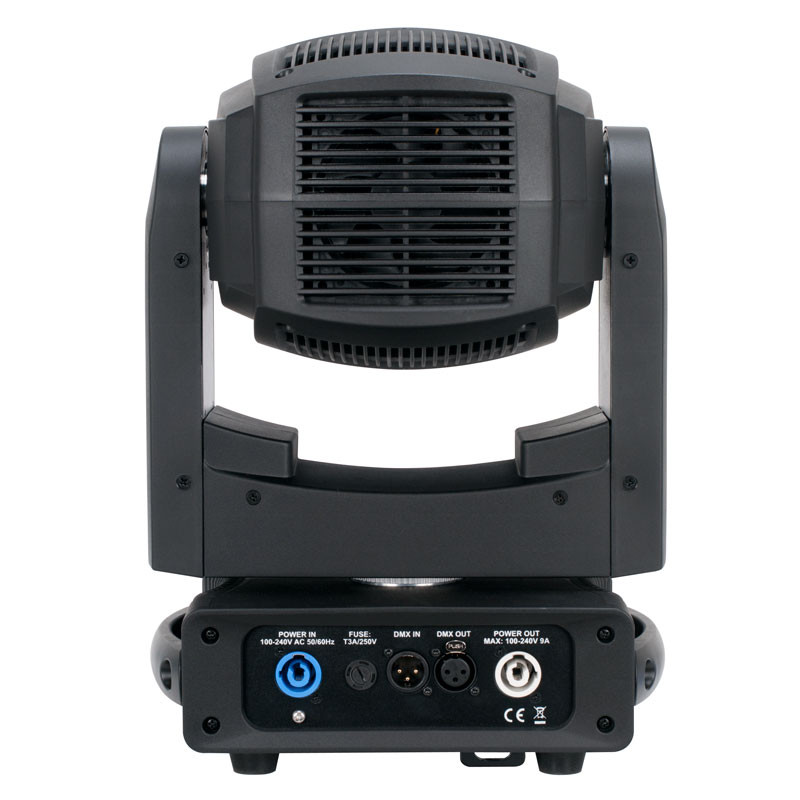

Connections
- Locking 3-pin DMX In/Out
- Locking Power In/Out (Daisy chain 4 units @ 120V; 10 units @ 240V)
- USB firmware update port
