Novastar VX1000 PRO
VX1000 PRO ALL-IN-ONE CONTROLLER The VX1000 Pro is a high-capacity all-in-one video controller for professional LED display systems, combining powerful video processing and LED…
View on ADJ siteOverview
VX1000 PRO ALL-IN-ONE CONTROLLER
The VX1000 Pro is a high-capacity all-in-one video controller for professional LED display systems, combining powerful video processing and LED control in a compact 1U rack-mount unit.
CONTROL UP TO 6.5 MILLION PIXELS
Equipped with ten Gigabit Ethernet outputs, the VX1000 Pro can drive up to 6.5 million pixels with a maximum output width of 10,240 pixels or height of 8,192 pixels. Support for video inputs up to 4K x 2K @ 60Hz, multiple layer resources and flexible scaling makes it ideal for large and demanding LED display applications.
BUILT FOR PROFESSIONAL VIDEO WORKFLOWS
HDMI, 3G-SDI, 10G optical fiber and USB playback provide extensive connectivity, while Genlock IN / LOOP enables precise synchronization within professional video systems. Low-latency operation, advanced backup options and output synchronization provide the reliability required for live events, rental productions and stage applications.
POWERFUL YET FLEXIBLE
SuperView III processing, pixel-level brightness and chroma calibration, up to 256 presets and flexible OSD functionality provide extensive control over the final image. Operation is available directly from the front panel or remotely using NovaLCT, Unico or the VICP app for an efficient workflow from setup through to showtime.

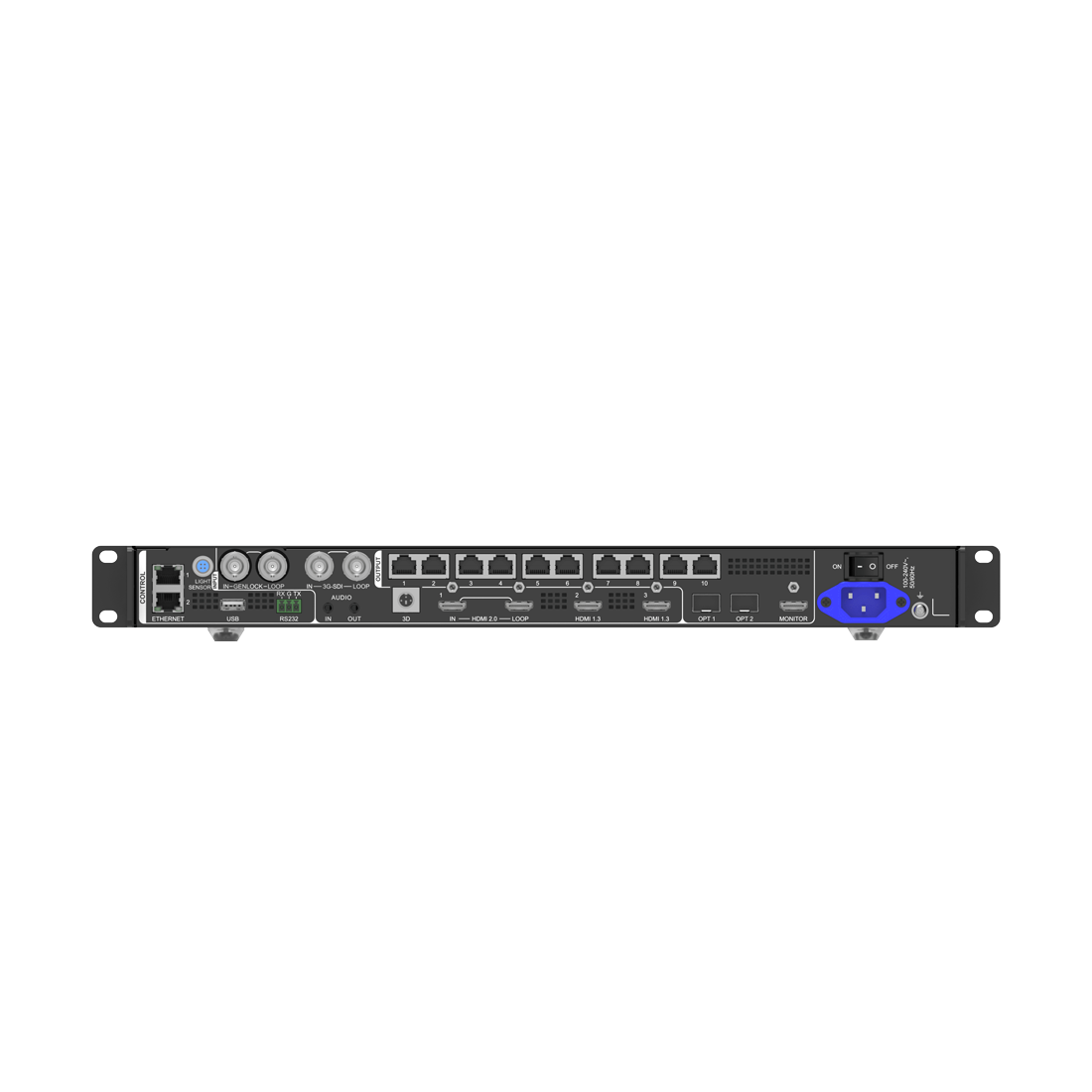

Gallery
<div class="row justify-co
Specifications
Inputs
- 1 x HDMI 2.0 (IN & LOOP)
- HDMI 2.0 Maximum Input Resolution: 4096 x 2160 @ 60Hz
- HDMI 2.0 Custom Maximum Width: 8192 pixels (8192 x 1080 @ 60Hz)
- HDMI 2.0 Custom Maximum Height: 8188 pixels (1080 x 8188 @ 60Hz)
- HDMI 2.0 Supports 8-bit, 10-bit and 12-bit Video Input
- HDMI 2.0 Supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 and YCbCr 4:2:0
- HDMI 2.0 Supports HDCP 1.4 and HDCP 2.2
- HDMI 2.0 Loop Output Supports Up To 6 Devices In One Loop
- 2 x HDMI 1.3
- HDMI 1.3 Maximum Input Resolution: 1920 x 1080 @ 60Hz
- HDMI 1.3 Custom Maximum Width: 2048 pixels (2048 x 1080 @ 60Hz)
- HDMI 1.3 Custom Maximum Height: 2048 pixels (1080 x 2048 @ 60Hz)
- HDMI 1.3 Supports 8-bit Video Input
- HDMI 1.3 Supports HDCP 1.4
- HDMI Inputs Support Frame Rates Up To 240Hz, Resolution Dependent
- 1 x 3G-SDI (IN & LOOP)
- 3G-SDI Maximum Input Resolution: 1920 x 1080 @ 60Hz
- 3G-SDI Supports SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 425M-A and SMPTE 425M-B
- 3G-SDI Supports 10-bit Video Input and Deinterlacing
- 1 x 10G Optical Fiber Port (OPT 1), Self-Adaptive For Video Input Or Output
- 1 x USB 3.0 U-DISK Port For Media Playback
Outputs
- 10 x Gigabit Ethernet Ports
- Maximum Device Load Capacity: 6.5 Million Pixels
- Maximum Output Width: 10,240 Pixels
- Maximum Output Height: 8,192 Pixels
- Maximum Capacity Per Ethernet Port: 650,000 Pixels At 8-bit
- Ethernet Output Frame Rates Up To 240Hz, Resolution Dependent
- 2 x 10G Optical Fiber Ports
- OPT 1: Self-Adaptive For Video Input Or Output
- OPT 2: Copy, Backup Or Loop Output
- Optical Fiber Transmission Distance With Single-Mode Twin-Core Module: ≤10km
- Optical Fiber Transmission Distance With Multi-Mode Twin-Core Module: ≤300m
- Optical Modules Sold Separately
- 1 x HDMI 1.3 Monitoring Output
- HDMI Monitoring Output Resolution: 1920 x 1080 @ 60Hz (Fixed)
- 1 x 3D Connector For Compatible Third-Party 3D Emitter
Audio
- Embedded Audio Input Via HDMI Sources
- 1 x 3.5mm Independent Audio Input
- 1 x 3.5mm Independent Audio Output
- Audio Sampling Rate: Up To 48kHz
- Adjustable Output Volume
Control Connections
- 2 x Ethernet Control Ports For Device Control And Firmware Updates Via Unico
- 1 x USB 2.0 For Firmware Updates, Device Logs And EDID Import / Export
- 1 x RS232 3-Pin Connector (RX, TX, Ground)
- 1 x Genlock IN / LOOP For External Sync Signals
- Genlock Supports Bi-Level And Tri-Level Sync Signals
- Genlock Signal Frame Rate: 24 to 60Hz
- 1 x Light Sensor Connector For Automatic Screen Brightness Adjustment
- Front USB Connection For NovaLCT Device Control And Device Cascading
- Up To 5 Devices Can Be Cascaded Via USB And Ethernet
Video Processing
- SuperView III Image Quality Processing
- Stepless Output Scaling
- One-Click Full Screen Display
- Free Input Cropping
- Full Screen, Pixel-To-Pixel And Custom Image Scaling Modes
- Output Color Management Including Brightness, Saturation, Contrast And Hue
- Pixel-Level Brightness And Chroma Calibration With NovaLCT And NovaStar Calibration Software
- Output Synchronization Using A Connected Video Input Or External Genlock Source
- EDID File Import And Export
- Automatic Screen Brightness Adjustment With External Light Sensor
Topology
- Free Topology Mode Calculates Ethernet Port Load Capacity Based On The Actual Size Of The Loaded Cabinets
- Non-Free Topology Mode Calculates Ethernet Port Load Capacity Based On The Maximum Circumscribed Rectangle Of The Configured Screen
- Free Topology Mode Requires Compatible Receiving Cards
Layers
- 6 x 2K x 1K Layer Resources
- Supports 4K x 2K, 4K x 1K And 2K x 1K Layer Sizes
- 4K x 2K Layer Uses 4 x 2K Layer Resources
- 4K x 1K Layer Uses 2 x 2K Layer Resources
- 2K x 1K Layer Uses 1 x 2K Layer Resource
- Adjustable Layer Size And Position
- Adjustable Layer Priority
- Adjustable Layer Aspect Ratio
- Supports Text And Image OSD
- Up To 10 Static Text OSD Components
- 1 Dynamic Text OSD Component
- Up To 2 Weather OSD Components
- Up To 2 Time OSD Components
- Customizable Text Content, Font, Font Color, Size, Opacity And Background Color
- Adjustable Scrolling Direction, Initial Position And Speed For Dynamic Text OSD
Presets
- Up To 256 User-Defined Presets
- One-Button Preset Loading
