Novastar VX16S

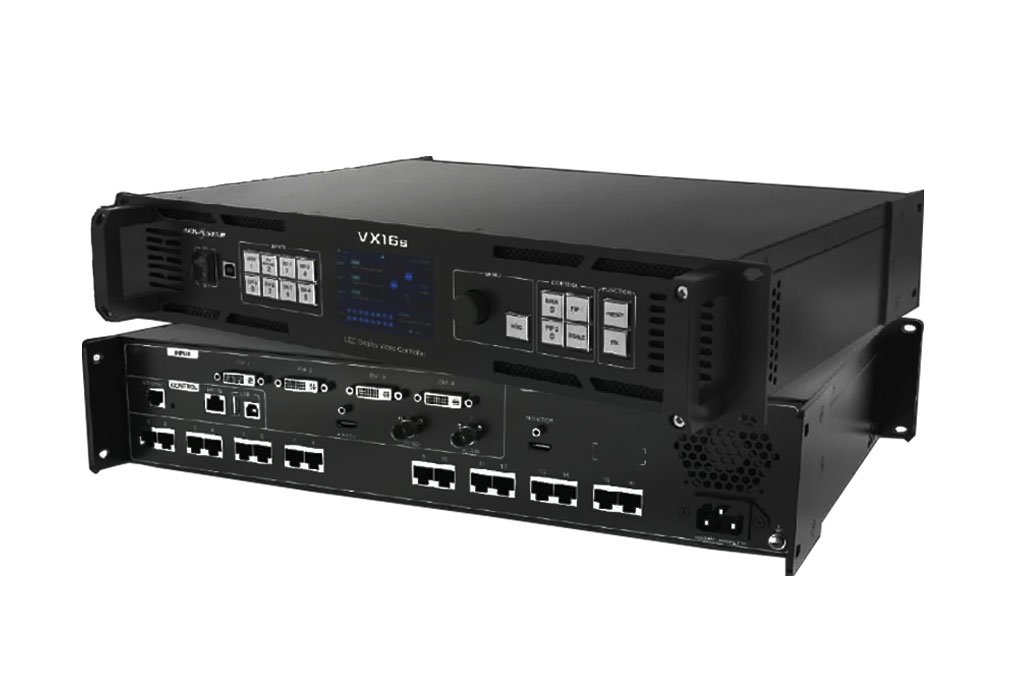

The VX16s is NovaStar’s new all-in-one controller that integrates video processing, video control and LED screen configuration into one unit.
View on ADJ siteOverview
The VX16s is NovaStar’s new all-in-one controller that integrates video processing, video control and LED screen configuration into one unit. Together with NovaStar’s V-Can video control software, it enables richer image mosaic effects and easier operations.
The VX16s supports a variety of video signals, Ultra HD 4K×2K@60Hz image processing and sending capabilities, as well as up to 10,400,000 pixels.
Thanks to its powerful image processing and sending capabilities, the VX16s can be widely used in applications such as stage control systems, conferences, events, exhibitions, high-end rental and fine-pitch displays.
Gallery
<div c
Specifications

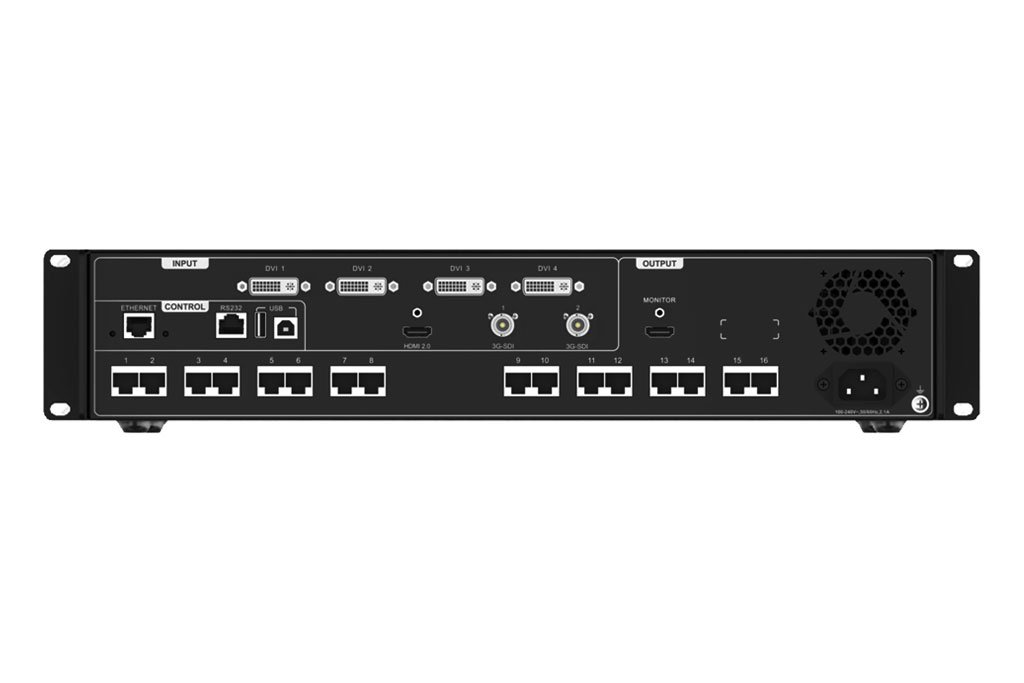

Industry-standard input connectors
- 2x 3G-SDI (Interlaced and Progressive scan supported)
- 1x HDMI 2.0 (Interlaced signal NOT supported)
- 4x SL-DVI (Interlaced signal NOT supported)
Output
- 16 Ethernet output ports load up to 10,400,000 pixels.
- 3 independent layers
- 1x 4K×2K main layer 2x 2K×1K PIPs (PIP 1 and PIP 2)
- Adjustable layer priorities
- Output Frame rates: 23.98 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz, 47.95 Hz, 48 Hz, 50 Hz, 56 Hz, 59.94 Hz, 60 Hz, 70 Hz, 71.93 Hz, 72 Hz, 75 Hz, 85 Hz, 100 Hz, 119.88 Hz and 120 Hz.
DVI mosaic
- Up to 4 DVI inputs can form an independent input source, which is DVI Mosaic.
Personalized image scaling
- Three scaling options are pixel-to-pixel, full screen and custom scaling.
Image mosaic
- Up to 4 devices can be linked to load a super large screen when used together with the video distributor.
- Easy device operation and control through VCan
- Up to 10 presets can be saved for future use.
EDID management
- Custom EDID and standard EDID supported
