VX400 PRO ALL-IN-ONE CONTROLLER
The VX400 Pro is a powerful all-in-one video controller designed for professional LED display applications, combining advanced video processing and LED control in a compact 1U rack-mount format.
POWERFUL VIDEO PROCESSING
Supporting video inputs up to 4K x 2K @ 60Hz, the VX400 Pro offers flexible scaling, cropping, multiple layers, OSD functionality and advanced color adjustment. Its four Gigabit Ethernet outputs can drive up to 2.6 million pixels, with a maximum output width of 10,240 pixels or height of 8,192 pixels.
FLEXIBLE AND RELIABLE
HDMI, 3G-SDI, optical fiber and USB playback provide extensive connectivity for a wide range of applications, while low-latency operation, multiple backup options and output synchronization make the VX400 Pro ideal for live events, rental productions, stage systems and professional LED installations.
INTUITIVE CONTROL
Control is available directly from the front panel or remotely using NovaLCT, Unico or the VICP app, providing a fast and flexible workflow for both setup and day-to-day operation.

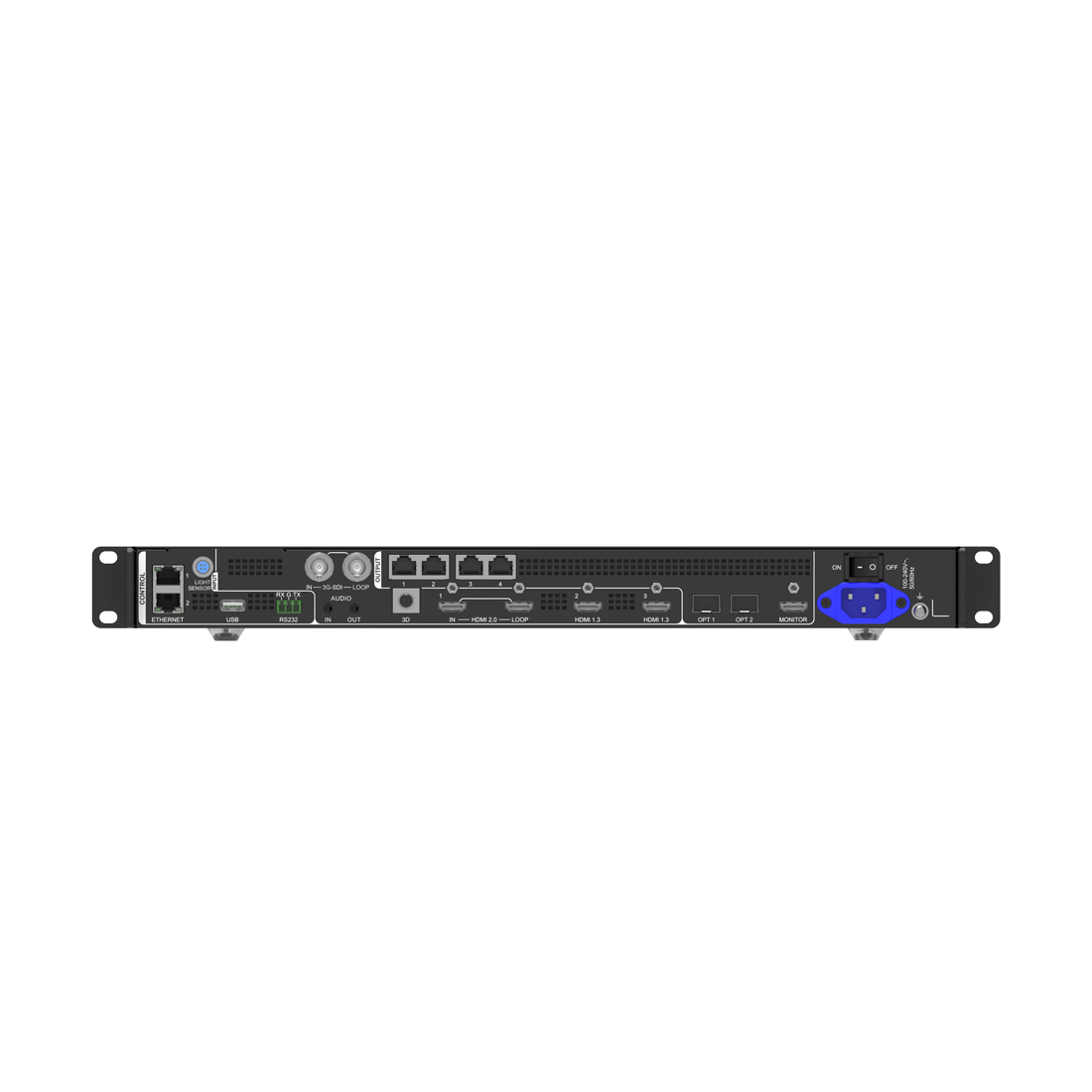

Gallery
<div class="d-flex justify-content-center ga
Specifications
Inputs
- 1 x HDMI 2.0 (IN & LOOP)
- HDMI 2.0 Maximum Input Resolution: 4096 x 2160 @ 60Hz
- HDMI 2.0 Custom Maximum Width: 8192 pixels (8192 x 1080 @ 60Hz)
- HDMI 2.0 Custom Maximum Height: 8188 pixels (1080 x 8188 @ 60Hz)
- HDMI 2.0 Supports 8-bit, 10-bit and 12-bit Video Input
- HDMI 2.0 Supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 and YCbCr 4:2:0
- HDMI 2.0 Supports HDCP 1.4 and HDCP 2.2
- HDMI 2.0 Loop Output Supports Up To 6 Devices In One Loop
- 2 x HDMI 1.3
- HDMI 1.3 Maximum Input Resolution: 1920 x 1080 @ 60Hz
- HDMI 1.3 Custom Maximum Width: 2048 pixels (2048 x 1080 @ 60Hz)
- HDMI 1.3 Custom Maximum Height: 2048 pixels (1080 x 2048 @ 60Hz)
- HDMI 1.3 Supports 8-bit Video Input
- HDMI 1.3 Supports HDCP 1.4
- HDMI Inputs Support Frame Rates Up To 240Hz, Resolution Dependent
- 1 x 3G-SDI (IN & LOOP)
- 3G-SDI Maximum Input Resolution: 1920 x 1080 @ 60Hz
- 3G-SDI Supports SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 425M-A and SMPTE 425M-B
- 3G-SDI Supports 10-bit Video Input and Deinterlacing
- 1 x 10G Optical Fiber Port (OPT 1), Self-Adaptive For Video Input Or Output
- 1 x USB 3.0 U-DISK Port For Media Playback
Outputs
- 4 x Gigabit Ethernet Ports
- Maximum Device Load Capacity: 2.6 Million Pixels
- Maximum Output Width: 10,240 Pixels
- Maximum Output Height: 8,192 Pixels
- Maximum Capacity Per Ethernet Port: 650,000 Pixels At 8-bit
- Ethernet Output Frame Rates Up To 240Hz, Resolution Dependent
- 2 x 10G Optical Fiber Ports
- OPT 1: Self-Adaptive For Video Input Or Output
- OPT 2: Copy, Backup Or Loop Output
- Optical Fiber Transmission Distance With Single-Mode Twin-Core Module: ≤10km
- Optical Fiber Transmission Distance With Multi-Mode Twin-Core Module: ≤300m
- Optical Modules Sold Separately
- 1 x HDMI 1.3 Monitoring Output
- HDMI Monitoring Output Resolution: 1920 x 1080 @ 60Hz (Fixed)
- 1 x 3D Connector For Compatible Third-Party 3D Emitter
Audio
- Embedded Audio Input Via HDMI Sources
- 1 x 3.5mm Independent Audio Input
- 1 x 3.5mm Independent Audio Output
- Audio Sampling Rate: Up To 48kHz
- Adjustable Output Volume
Control Connections
- 2 x Ethernet Control Ports For Device Control And Firmware Updates Via Unico
- 1 x USB 2.0 For Firmware Updates, Device Logs And EDID Import / Export
- 1 x RS232 3-Pin Connector (RX, TX, Ground)
- 1 x Light Sensor Connector For Automatic Screen Brightness Adjustment
- Front USB Connection For NovaLCT Device Control And Device Cascading
- Up To 5 Devices Can Be Cascaded Via USB And Ethernet
Video Processing
- SuperView III Image Quality Processing
- Stepless Output Scaling
- One-Click Full Screen Display
- Free Input Cropping
- Full Screen, Pixel-To-Pixel And Custom Image Scaling Modes
- Output Color Management Including Brightness, Saturation, Contrast And Hue
- Pixel-Level Brightness And Chroma Calibration With NovaLCT And NovaStar Calibration Software
- Output Synchronization Using A Connected Video Input As Sync Source
- EDID File Import And Export
- Automatic Screen Brightness Adjustment With External Light Sensor
Topology
- Free Topology Mode Calculates Ethernet Port Load Capacity Based On The Actual Size Of The Loaded Cabinets
- Non-Free Topology Mode Calculates Ethernet Port Load Capacity Based On The Maximum Circumscribed Rectangle Of The Configured Screen
- Free Topology Mode Requires Compatible Receiving Cards
Layers
- 6 x 2K x 1K Layer Resources
- Supports 4K x 2K, 4K x 1K And 2K x 1K Layer Sizes
- 4K x 2K Layer Uses 4 x 2K Layer Resources
- 4K x 1K Layer Uses 2 x 2K Layer Resources
- 2K x 1K Layer Uses 1 x 2K Layer Resource
- Adjustable Layer Size And Position
- Adjustable Layer Priority
- Adjustable Layer Aspect Ratio
- Supports Text And Image OSD
- Up To 10 Static Text OSD Components
- 1 Dynamic Text OSD Component
- Up To 2 Weather OSD Components
- Up To 2 Time OSD Components
- Customizable Text Content, Font, Font Color, Size, Opacity And Background Color
- Adjustable Scrolling Direction, Initial Position And Speed For Dynamic Text OSD
Presets
- Up To 256 User-Defined Presets
- One-Button Preset Loading
- Save, Overwrite And Delete Presets
- Preview Layer Layout Saved In A Preset
Low Latency
- Automatic Or Manual Low Latency Operation
