ADJ
Pixie Curve 60
The new Pixie Curve 60 helps you expand your creative ideas and makes it possible to make curved Pixie Strip installations.
View on ADJ siteOverview

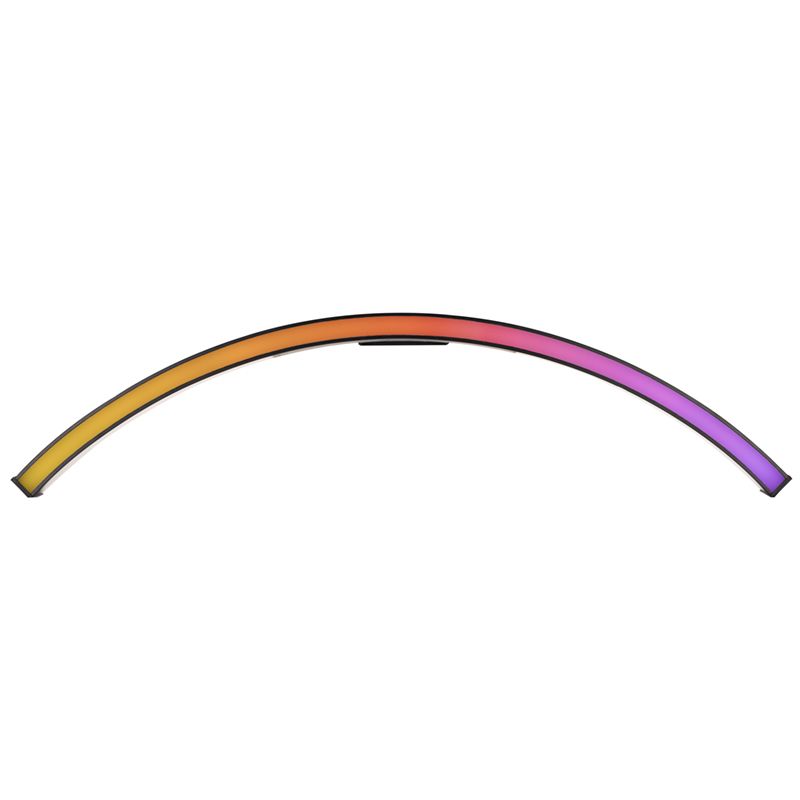

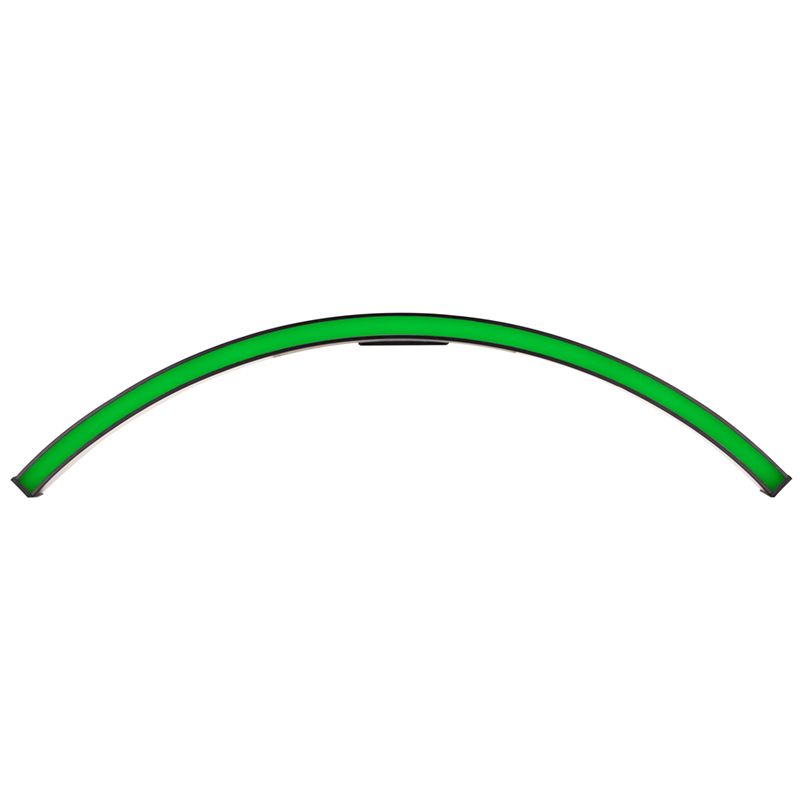

The new Pixie Curve 60 helps you expand your creative ideas and makes it possible to make curved Pixie Strip installations. 1-meter indoor curved LED strip with 60 RGB SMD LEDs with a pixel pitch of 16.5mm (center-to-center).
Specifications
SOURCE:
- SMD RGB 3-in-1, APA-102C LEDs
- Color Resolution: 8 bits per color (24 bit per pixel)
- Viewing Angle: 120 x 120 degrees
- Pixels Per Fixture: 60 pixels
- Pixel Pitch (pixel center-to-center) 16.5mm
- PWM (Pulse Width Modulation): 44,000Hz
- 50,000 Hours Life
CONNECTORS:

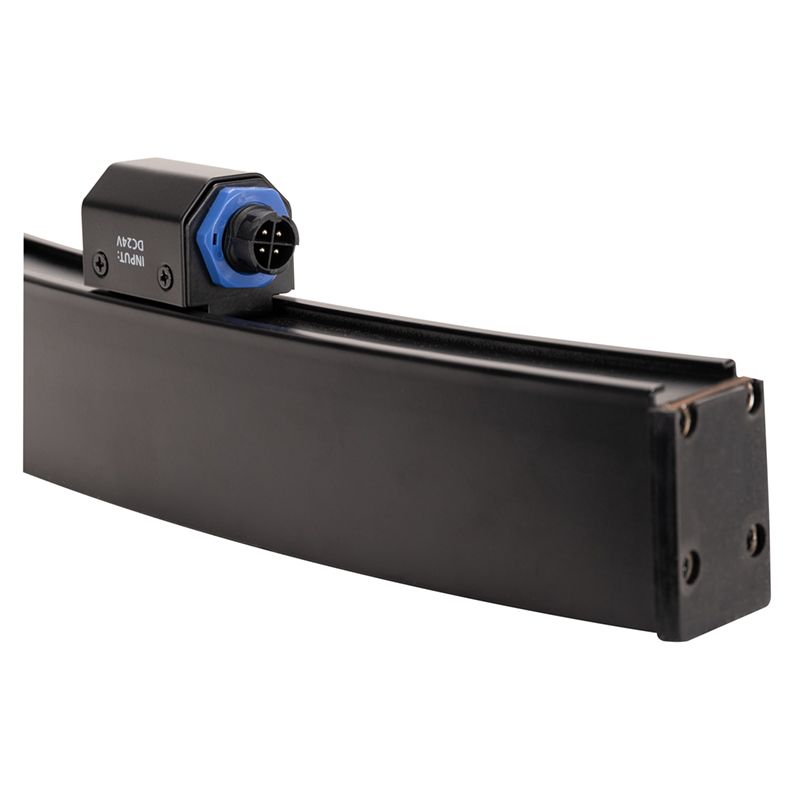

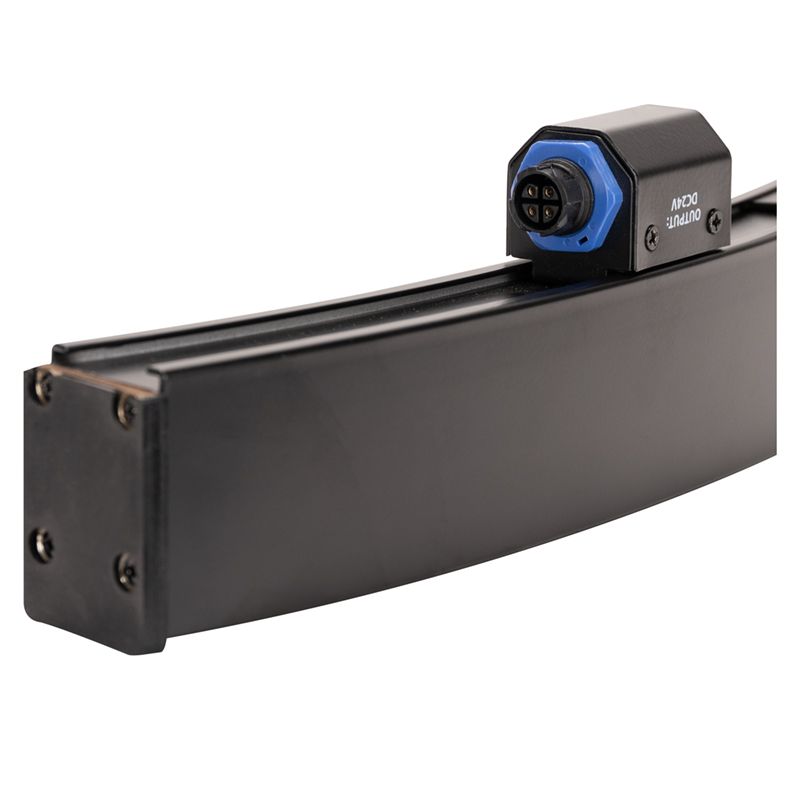

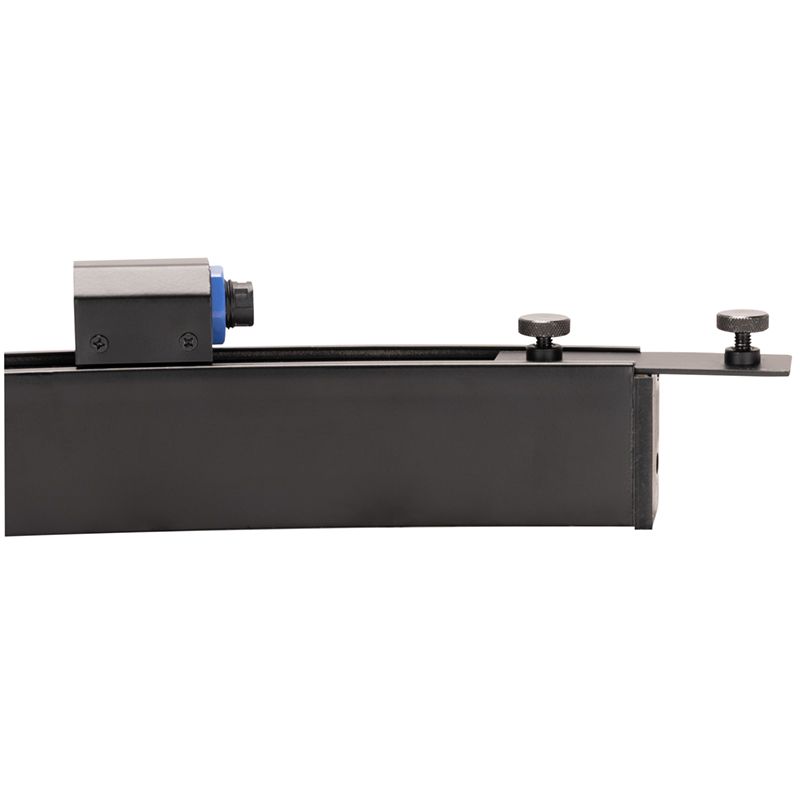

- 4-pin Power/Data Input & Output
DIMENSIONS / WEIGHT:
- Length: 924mm
- Width: 32mm
- Height: 79mm
- Weight: 1.2kg
POWER:
- DC24V
- Max Power Consumption: 12W
THERMAL:
- Ambient Operational Temperature: -20°C to 45°C
- Storage Temperature: -30°C to 45°C
CERTIFICATES & IP RATING:
- CE
- cETLus (Pending)
- FCC
- IP65-Rated
