Seetronic-MK3F2C-B
Seetronic MK3F2C-B is a professional 3-pin XLR female panel socket designed for reliable signal connections in audio, lighting, and control systems.
View on ADJ siteOverview

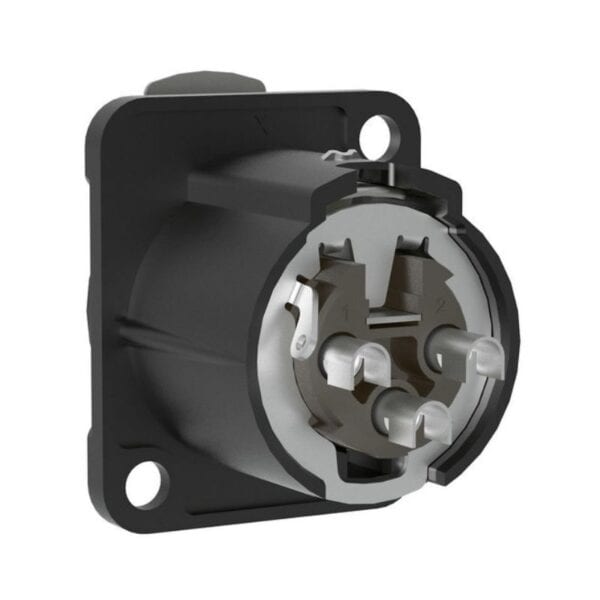

Seetronic MK3F2C-B is a professional 3-pin XLR female panel socket designed for reliable signal connections in audio, lighting, and control systems. Built with a durable zinc alloy housing with black plating and silver-plated contacts, it ensures excellent conductivity and long-term reliability for professional audio and DMX applications.
Featuring standard D-size panel mounting dimensions, the MK3F2C-B allows installation from either the front or rear of a panel for flexible integration into racks, equipment housings, and stage devices. With a compact design and a service life exceeding 1000 mating cycles, it is ideal for touring equipment, stage installations, and professional production environments.
Gallery
Specifications
Product Parameters
- Connection type: XLR
- Gender: Female
Electrical Parameters
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 5 mΩ
- Dielectric strength: 1500 V DC
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50 V
Mechanical Parameters
- Service life: > 1000 mating cycles
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Locking device: Latch lock
- Chassis shape: D
