Seetronic-MK5F2C-B
Seetronic MK5F2C-B is a professional 5-pin XLR female panel socket designed for reliable signal connections in lighting, audio, and control systems.
View on ADJ siteOverview

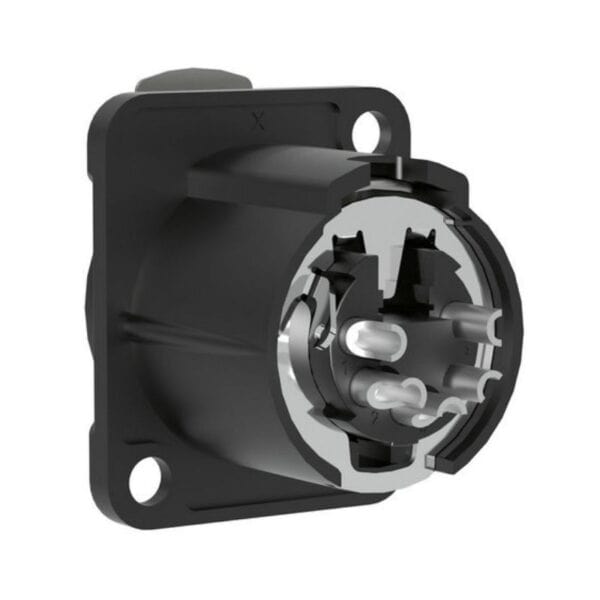

Seetronic MK5F2C-B is a professional 5-pin XLR female panel socket designed for reliable signal connections in lighting, audio, and control systems. Built with a durable zinc alloy housing with black plating, it offers excellent durability and consistent performance for professional DMX and audio applications.
Featuring standard D-size panel mounting dimensions, the MK5F2C-B allows installation from either the front or rear of a panel for flexible integration into racks, enclosures, and lighting fixtures. With a compact design and a service life exceeding 1000 mating cycles, it is ideal for touring equipment, stage installations, and professional production environments.
Gallery
Specifications
Product Parameters
- Connection type: XLR
- Gender: Female
Electrical Parameters
- Capacitance between contacts: ≤ 7 pF
- Contact resistance: ≤ 5 mΩ
- Dielectric strength: 1500 V DC
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 7.5 A
- Rated voltage: < 50 V
Mechanical Parameters
- Service life: > 1000 mating cycles
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Locking device: Latch lock
- Chassis shape: D
