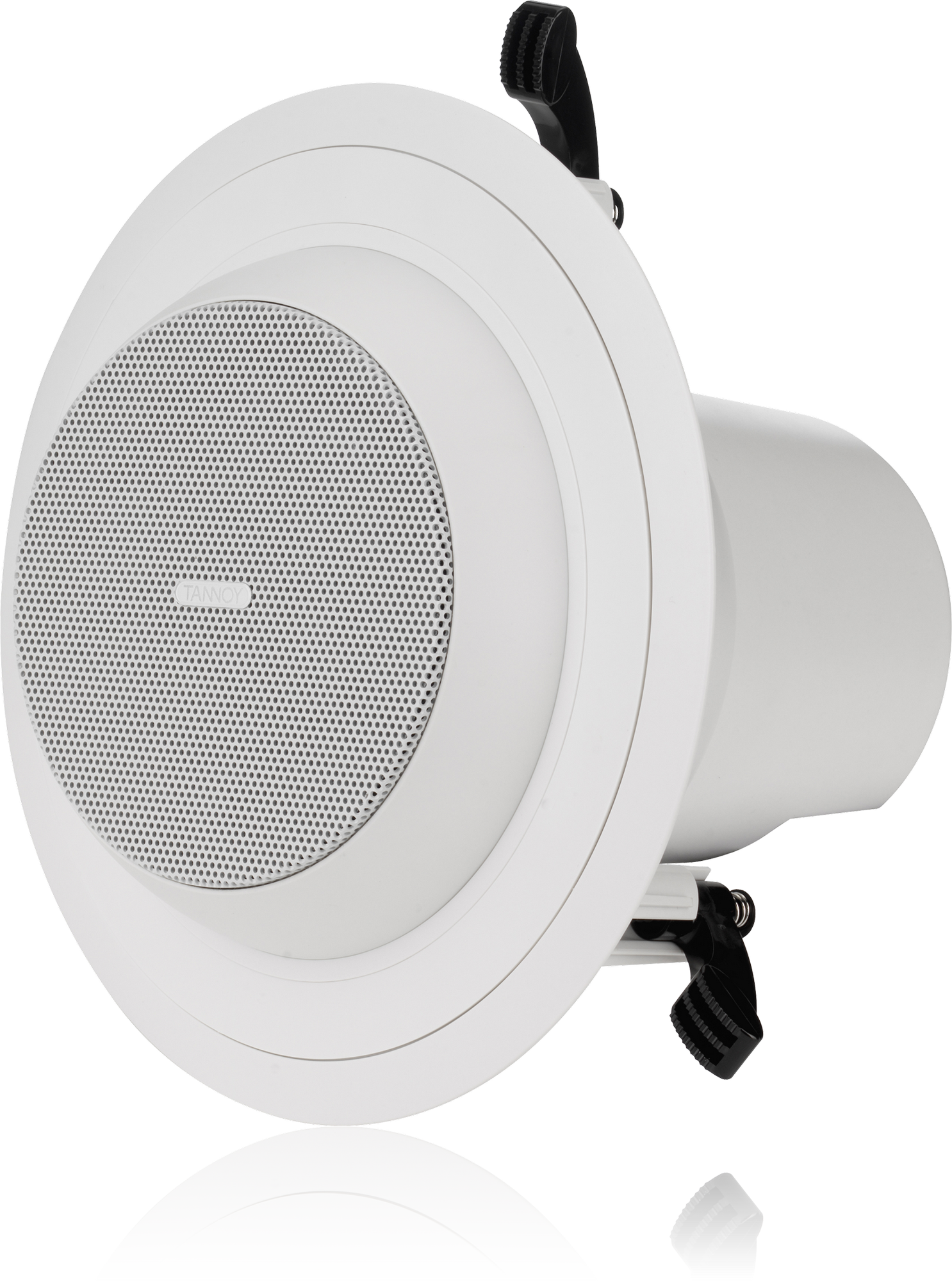

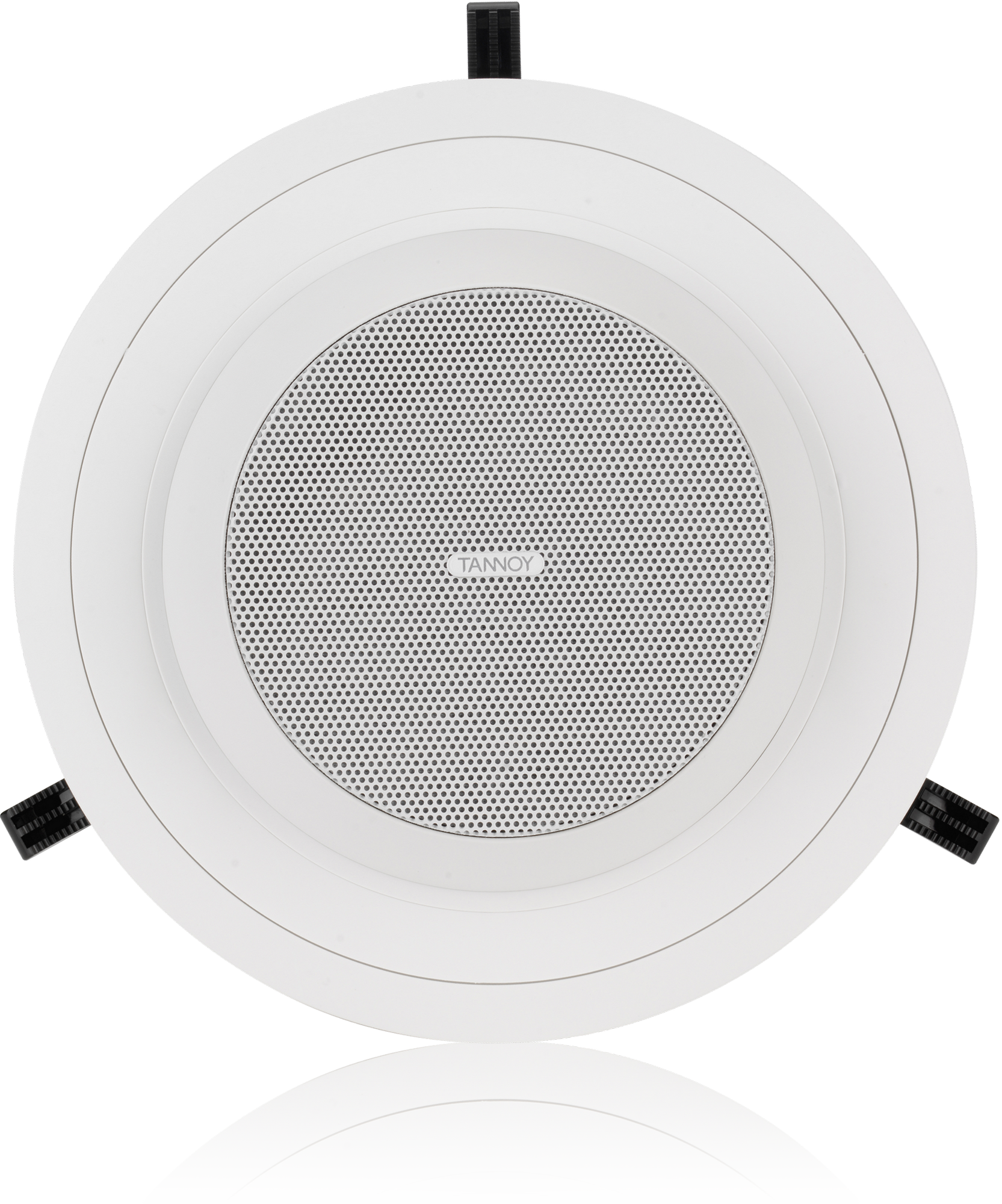

Tannoy CMS 403ICTE
SKU 0301-ABI
Tannoy ceiling loudspeaker for background music and paging in commercial spaces. Available in Dubai from Pure Minds Trading.
View on Tannoy siteOverview
CMS 3.0 CMS 403ICTE
The CMS 403ICTE is a wide bandwidth 160-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 4" ICT (Inductive Coupling Technology) point source driver with extended frequency range, the CMS 403ICTE delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability – and are ideal for constant-usage applications.
Adjustable Tilt Angle
Specifically designed with a self-aligning 3 way clamp system for fast, simple and cost effective installation, the CMS 403ICTE can be angled towards the listener within the fixed ceiling-mounting ring. By discreetly pivoting the loudspeaker towards the desired area of coverage, the challenge of speaker placement in a less than ideal room is easily overcome.
Optimised for Installation
Equipped with a low-insertion loss 30 W transformer with convenient front panel tap switching, CMS 403ICTE features an integral ABS back-can with removable locking screw terminal connector and loop-thru functionality. The paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included.
LAB GRUPPEN Ready
The CMS 403ICTE is finished in semi matt white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.8:
Specifications
Frequency response (-3 dB) <sup>(1)</sup>
- 110 Hz - 22 kHz
Frequency range (-10 dB) <sup>(1)</sup>
- 80 Hz - 24 kHz
System sensitivity (1 W @ 1 m) <sup>(2)</sup>
- 88 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle
- 90 degrees conical
Coverage Angle (1 kHz to 6 kHz)
- 120 degrees
Directivity Factor (Q)
- 5.26 averaged 1 kHz to 6 kHz
Directivity Index (DI)
- 6.30 averaged 1 kHz to 6 kHz
Recommended Amplifier Power
- 80 W @ 16 Ohms
Nominal Impedance (Lo, Z)
- 16 Ohms
Crossover
- 7 kHz inductively coupled
Dual Concentric point source driver
- 100 mm (4.00") mineral loaded polypropylene
Safety Features
- Safety ring located at rear of enclosure for load bearing safety bond
Clamping Design
- Min / Max clamping range: 0.0 mm (0.0") / 20.0 mm (0.79") Recommended clamp torque: 1.5 Nm
Hole cutout diameter
- 187 mm (7.36")
