ADJ UV COB CANNON — image 1
ADJ

UV COB CANNON

The ADJ UV COB Cannon produces a large ultraviolet wash from high output, advanced COB (Chip On Board) UV LEDs–COB LED technology allowing for a powerful LED engine to be placed…

View on ADJ site

Overview

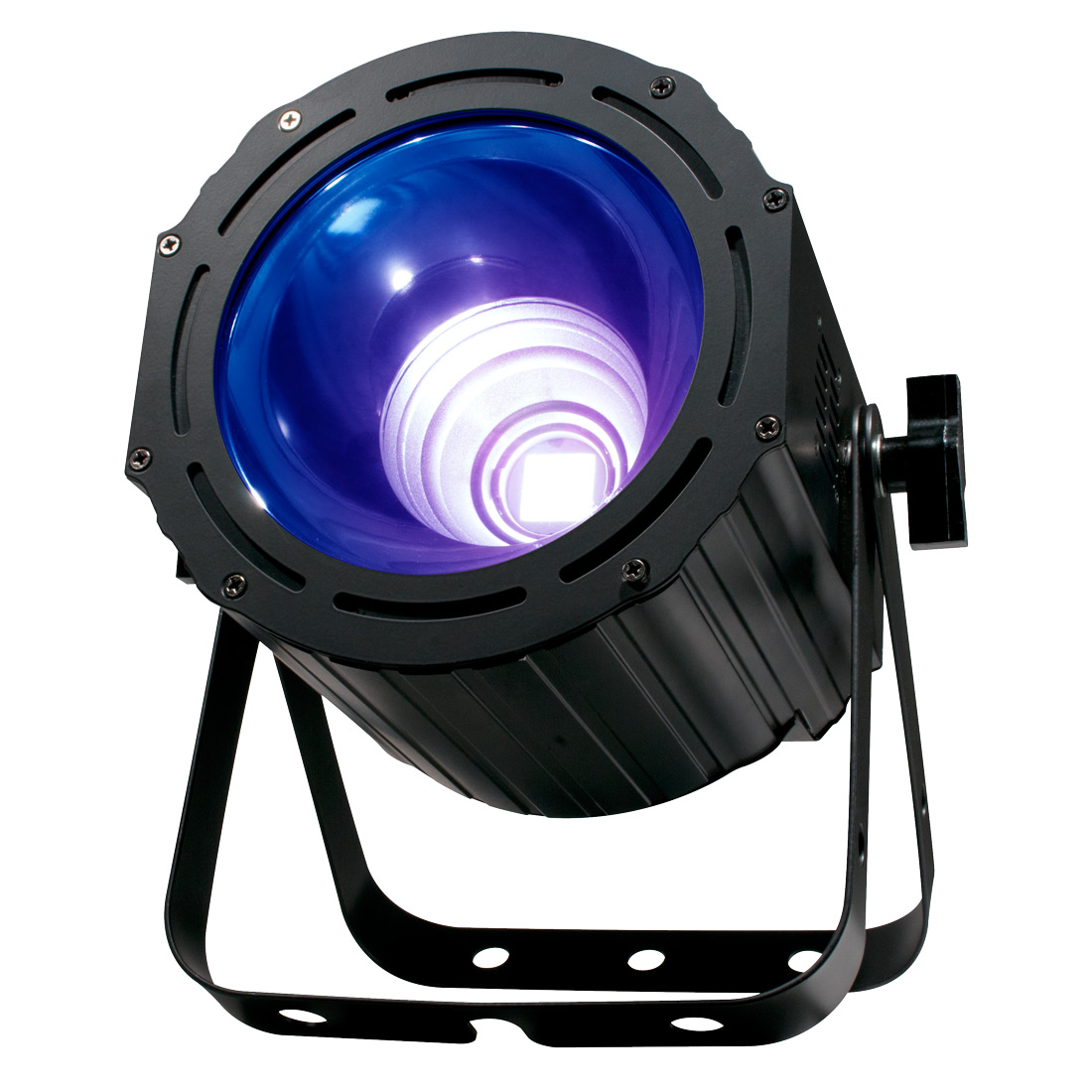

The ADJ UV COB Cannon produces a large ultraviolet wash from high output, advanced COB (Chip On Board) UV LEDs–COB LED technology allowing for a powerful LED engine to be placed in a small amount of space. This professional lighting fixture is designed for washing performance stages, theatrical productions and special effects productions. It requires very little maintenance or service due to its sold state electronics. The UV COB Cannon has 3 operational modes (sound active, manual or DMX), has 3 DMX operational modes, 5 selectable dim curves, a 4-Button DMX Display and is flicker free for film and television. This fixture is DMX linkable via 3-pin DMX, and is power linkable via Locking Power connections. The light source is a 100-Watt COB (Chip On Board) UV LED engine.

Video

Specifications

Source

  • Light Source: 1 UV COB-LED
  • Individual LED wattage : 100W
  • Average LED lifetime : approximately 50,000 hrs.
  • UV wavelength : 395-405nm

Optics

  • Beam Angle: 33 degrees

Control

  • 3 operational Modes : Manual UV Dimmer Mode, Sound Active Mode and DMX Control
  • 3 DMX Modes: 1, 2 & 3-channel
  • RDM compatible
  • Electronic Dimming: 0 - 100%
  • 5 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre)
  • LED pulse and strobe effect

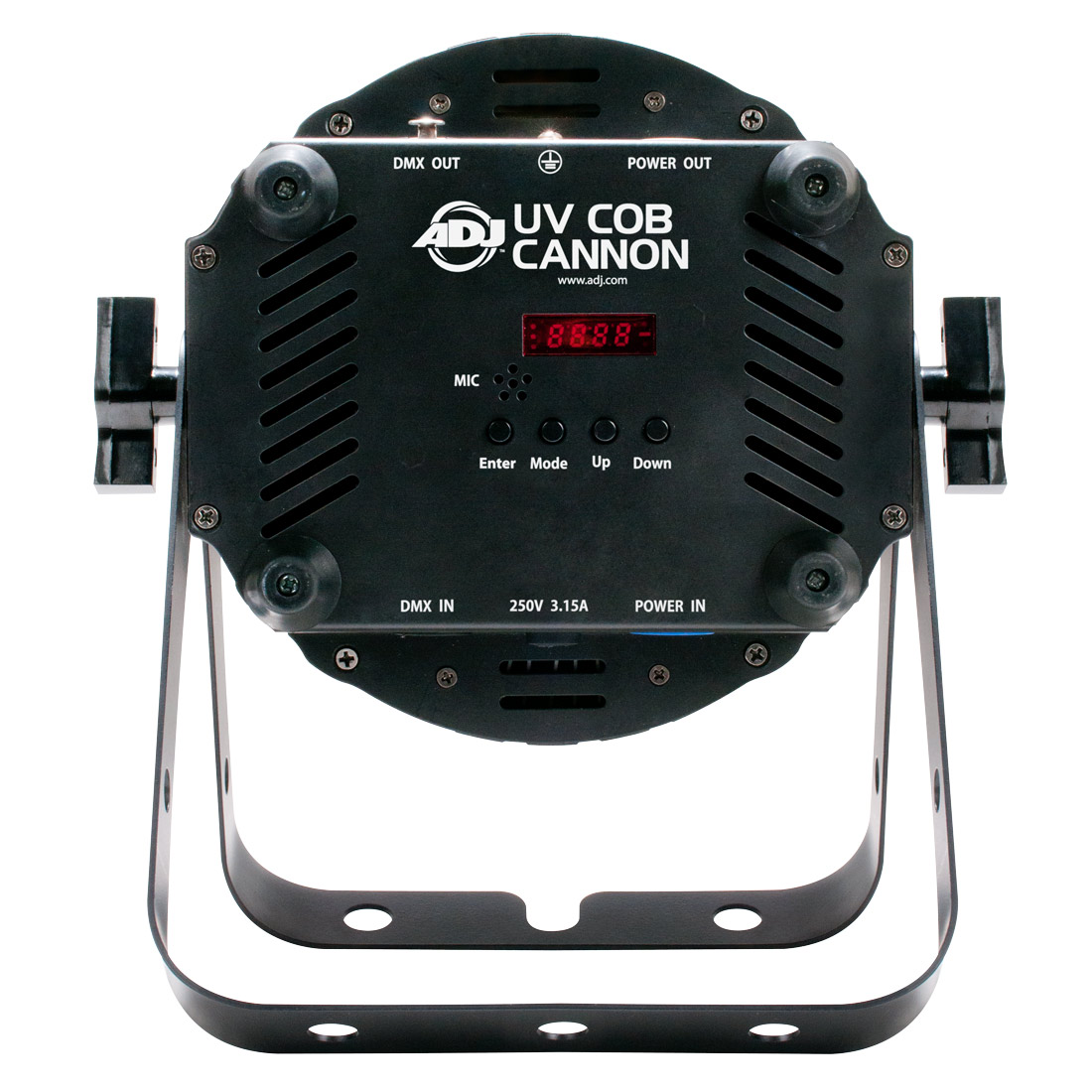

  • 4-button, DMX digital display on rear panel

Colors

  • UV (395-405nm)

Construction

  • Metal Housing
  • Scissor yoke

Electrical

  • Multivoltage 100-240V 50/60Hz
  • Power Consumption: 120W

Connections

  • 3-pin Locking DMX In/Out connections
  • Locking Power In/Out connections
