Vizi Beam RX2
The ADJ Lighting Vizi Beam RX2 is a compact, high-performance moving head beam fixture that features a 100W Osram Sirius HRI discharge lamp, a razor-sharp 2-degree beam, two prism…
View on ADJ siteOverview
Elevate your lighting performance with the ADJ Lighting Vizi Beam RX2, a compact and quick moving head beam fixture designed for the modern lighting designer. Featuring a vigorous 100W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, this potent fixture delivers stunning visuals with a precise 2-degree beam angle, as well as, high speed 3-phase pan/tilt motors for maximum performance. Unlock a wealth of features including on-board wireless DMX, two prism wheels (16-facet circular & 4-facet linear), a frost effect, motorized focus (with 16-bit fine focus), along with a 14-color dichroic wheel that includes CTO (3200K), CTB (9000k) & UV filters) and 15 static GOBOs + open (3 GOBOs are beam reducers). Designed for convenience, it features outdoor-rated In/Out locking connections for power daisy-chaining, 5-pin In/Out DMX sockets and a color LCD display with 4-button function menu. The Vizi Beam RX2 is a versatile and reliable lighting solution for any high-octane event.
Video
Specifications
LIGHT SOURCE:
- OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)
- Color temperature: 9000K (+/- 300K)
FEATURES:
- On-Board Wireless DMX
- Motorized Focus + 16-Bit Fine Focus
- 2-Degree beam angle
- Frost Filter (to create wash effect)
- High Quality Glass Lens
- 2 Rotating Prisms
- 0-100% Smooth Dimming
- Various Strobe Speeds
- OTA, wireless, firmware updates
- Fan cooled
COLOR WHEEL:
- 14 Dichroic Colors + white (Includes CTO (3200K), CTB (9000K) & UV)
- Indexable Color Wheel (for Split Colors)
GOBO WHEEL:
- 15 static GOBOs + open (3 GOBOs are beam reducers)
- GOBO Shake Effect
PRISM WHEEL:
- 2 Rotating prisms
- 16-Facet circular and 4 facet linear prisms
CONTROL:
- Protocols: DMX512 & RDM
- Control Mode: DMX512 & Manual (On-board Controls)
- Aria X2 Wireless Management / DMX System
- 2 DMX Channel Modes: 16/20 Channels
- Color LCD display with 4-button function menu
- 0-100% smooth dimming
- Various strobe speeds
PAN/TILT:
- Pan: 540 Degrees (plus 16-bit fine pan)
- Tilt: 270 degrees (plus 16-bit fine tilt)
- 3-Phase, High Speed, Pan/Tilt Motors
CONNECTIONS:

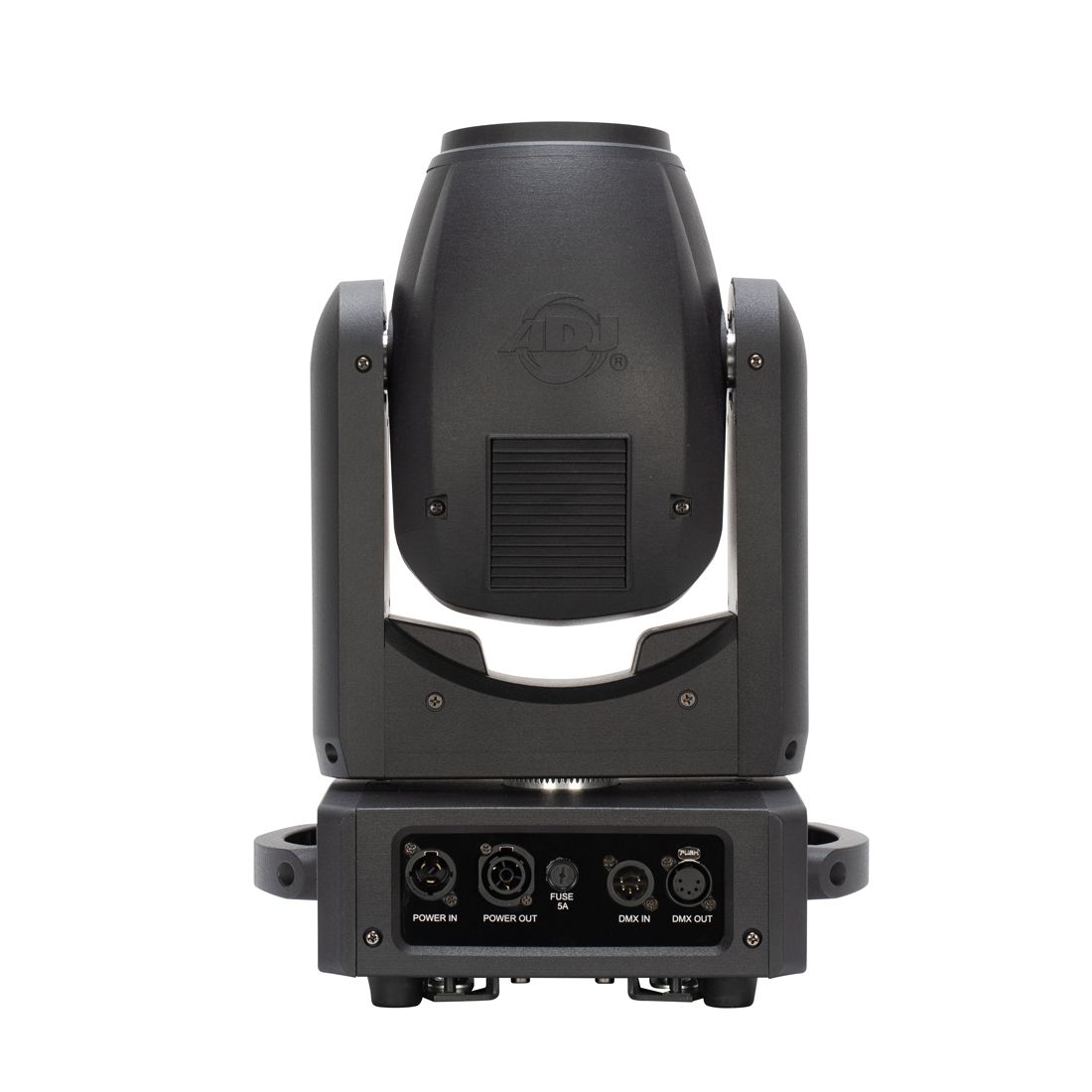

- DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
- Power Connections: Outdoor locking In/Out connections to daisy chain power
ELECTRICAL:
- Multi-voltage Operation: 100-240V, 50/60Hz
- Max power consumption: 157W
DIMENSIONS / WEIGHT:
- Dimension: 230 x 304 x 416mm
- Weight: 7.5 kg.
APPROVALS / RATINGS:
- CE
- cETLus (Pending)
