YME D 24
SKU D 24

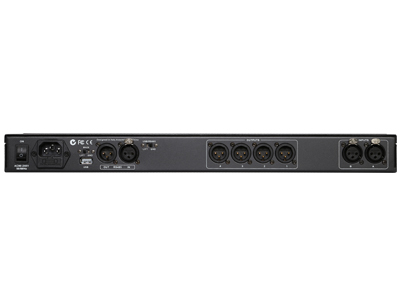

YME D 24: 2 in 4 out digital signal processor from the D Processor Series.
View on YME Systems siteOverview
The YME D 24 is part of the YME D Processor Series — 2 in 4 out digital signal processor. Professional sound reinforcement from YME Systems, supplied and supported in the UAE by Pure Minds Trading, Dubai.
Specifications
Brand
- YME Systems
Model
- D 24
Series
- D Processor Series
Response Input / Output
- Max. SPL: +20dBu; Output Impedance: 50Ω; Input Impedance: >10KΩ
Analog Audio
- Frequency Response: ± 0.5dB(20Hz to 20kHz); SNR:110dB typical (unweighted); CMRR: >40dB(20Hz to 10kHz); Crosstalk: <-100dB; Distortion: 0.001%(1kHz@0dBu )
Digital Audio
- DSP:32 bits (extendable FPU to 40 bits); Sampling Rate: 96kHz; ADC/DC: 24 bits high resolution chip; Transmission Delay: 2ms
Adjustable Parameters
- Master Gain: -12 to 12dB,0.1dB stepping; Channel Gain: -12 to 0dB,0.1dB stepping; Delay: parameter; EQ Types: oaranter, shelv; EQ Gain: -15 to +15dB 0.5dB stepping; EQ Bandwidth: 0.009 to 4.8 octaves(Q=0.3 to 20)
RMS Limiter
- Threshold Value: -10 to +20dBu; Compression Ratio: 1:1 to 32:1; Starting Time: 5 to 200ms; Release Time: 0.1s to 3s
Peak Limiter
- Threshold Value: -10 to +20dBu; Starting Time: 5 to 200ms; Release Time: 0.1s to 3s
General Specification
- Power: 90-265VAC(50/60Hz); Dimension: 483 × 44 × 229mm; Weight: 4.6 kg
Supplied by
- Pure Minds Trading Co. LLC, Dubai, UAE
