YME GT BASS
SKU GT BASS

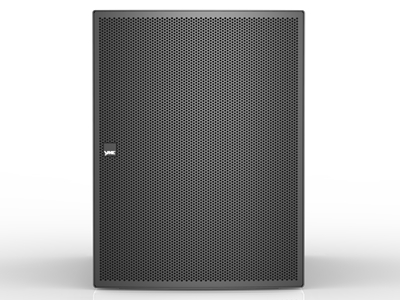

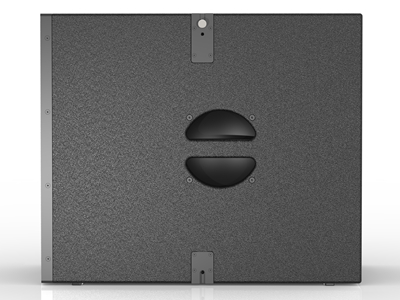

YME GT BASS: single 15” passive subwoofer from the GT Line Array Series.
View on YME Systems siteOverview
The YME GT BASS is part of the YME GT Line Array Series — single 15” passive subwoofer. Professional sound reinforcement from YME Systems, supplied and supported in the UAE by Pure Minds Trading, Dubai.
Specifications
Brand
- YME Systems
Model
- GT BASS
Series
- GT Line Array Series
Frequency Response
- 35Hz ~ 120Hz(±3 dB); 28Hz ~ 200Hz(-10dB)
Sensitivity(@1w / 1m)
- 96dB
Power Rating(AES)
- 500W
Nominal Impedance
- 8Ω
Maximum SPL
- 123dB SPL，129dB SPL peak
Drivers
- 15"(75mm Voice Coil，Ferrite)
Dimensions (H x W x D)
- 560×420×670(mm)
Net Weight
- 34kg
Riggings
- 2 Stacking Locks + Pole Mounts
Connector
- NL4×2
Connection Method
- 1+1-
Enclosure
- 15mm 18mm Multilayer Birch Plywood
Finish
- Black polyurethane paint
Grille
- Black steel mesh + acoustic transparent cloth
Supplied by
- Pure Minds Trading Co. LLC, Dubai, UAE
