YME VS 10-8 / VS 10-4
SKU VS 10-8 / VS 10-4
Single 10" Passive Full Range Speaker. VS 10-8 is single 10” passive two way full range at 8Ω.
View on YME Systems siteOverview

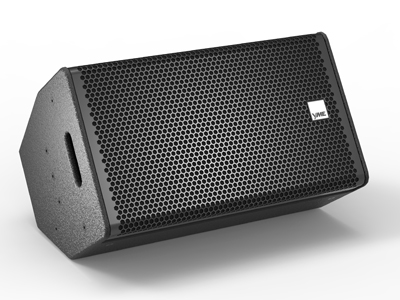

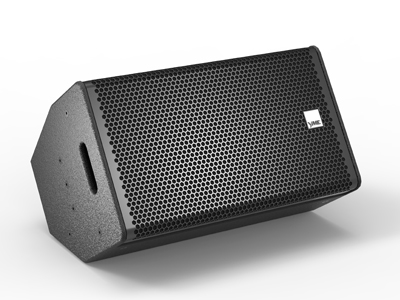

VS 10-8 is single 10” passive two way full range at 8Ω. Rather than a normal coaxial driver, utilizing a creative design of coaxial structure – a 1.4”（44MM voice coil ）with 80° x 80° horn is placed onto a 8” （75MM voice coil）symmetrically, which makes VS 10-8 perform perfectly with not only accurate sound image and high fidelity but also powerful dispersion.

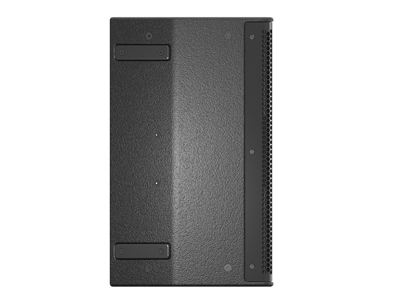

Thanks the multi-angle enclosure, VS 10-8 is suitable for use as stage monitor.The 4 nylon strips offer protection to the enclosure away from scratches.
Meanwhile， VS 10-8 comes up with various rigging and mounting options to meet the needs of most kinds of touring and installation applications.VS 10-8 Can be pole-mounted on bass speakers (VS 15B) as PA or satellite system.
VS 10-4 is 4Ω version which normally works with active bass speaker VS 15BA as satellite system.
Specifications
Brand
- YME Systems
Model
- VS 10-8 / VS 10-4
Series
- Versa Multipurpose Series
Model No.
- VS 10-8 VS 10-4
Frequency Response
- 70Hz--18KHz(±3dB); 55Hz--20KHz(-10dB)
LF Driver
- 1 x 10" woofer(75mm voice coil), Ferrite
HF Driver
- 1 x 1.75"(1" throat) Neodymium compression diver(44mm voice coil)
Nominal Coverage
- 80 ° x 80 °
Impedance
- 8 Ω 4 Ω
Sensitivity(@1w/1m)
- 94dB
Power Rating
- HF:50W, LF:400W
Max. SPL
- 120dB SPL , 126dB peak
Dimensions (H x W x D)
- 545 x 297 x 330 mm
Weight
- 20 kg
Riggings

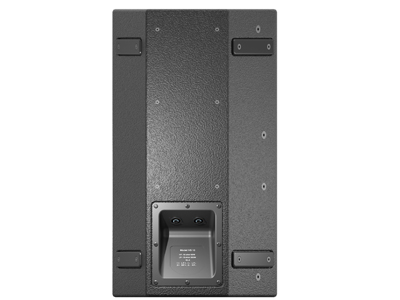

- 17 x M8 points, 4 x φ8 PIN + dual pole mount
Connection
- 2 x Neutrik NL4MP, 1+1-
Enclosure
- 15mm, 18mm multilayer plywood
Finish
- Black water-based paint
Grille

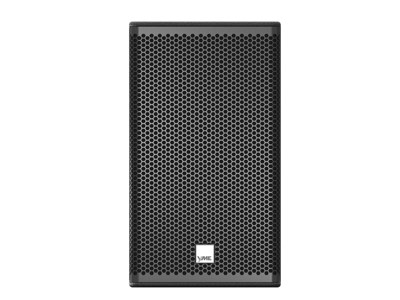

- Black steel mesh + acoustic transparent cloth
Supplied by
- Pure Minds Trading Co. LLC, Dubai, UAE
