YME VS 18B
SKU VS 18B
Single 18" Passive Subwoofer Speaker. VS 18B is a single 18” bass passive bass speaker which is specially designed for small touring or install application where need high quality low frequency output.
View on YME Systems siteOverview
VS 18B is a single 18” bass passive bass speaker which is specially designed for small touring or install application where need high quality low frequency output.
A 18” (75 mm voice coil ) high performance woofer with special rubber-edged paper cone delivers ultra low frequency down to 45Hz (± 3dB) with more deepness and dynamics.
Ultra compact and solid enclosure made from18mm high quality plywood and finished with durable water paint. Further more, the optional 4 lockable-wheel design offers easy movement.
Specifications
Brand
- YME Systems
Model
- VS 18B
Series
- Versa Multipurpose Series
Frequency Response
- 45Hz--120Hz(±3dB); 35Hz--150Hz(-10dB)
Sensitivity（@1w/1m）
- 98dB
Nominal Impedance
- 8Ω
Power Rating（AES）
- 800W
LF
- 1 x 18" woofer(100mm voice coil), Ferrite
MAX SPL
- 1 27dB SPL, 133dB SPL Peak
Dimension（HxWxD）
- 534x622x650(mm)

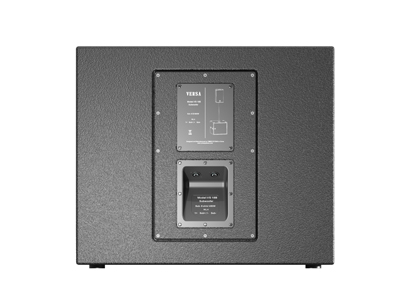

Connection
- 2 x Neutrik NL4MP, LF: 1+1-
Enclosure
- 15mm, 18mm multilayer plywood
Riggings
- M8 x 12 + M20 Pole mount
Finishing
- Black water-based paint
Grille
- Black steel mesh + acoustic transparent cloth
Supplied by
- Pure Minds Trading Co. LLC, Dubai, UAE
