YME Systems
YME VS 18BA
SKU VS 18BA
Singel 18" Avtive Subwoofer Speaker. VS 18BA is the active version of VS 18B.
View on YME Systems siteOverview
VS 18BA is the active version of VS 18B.
Thanks to the superpower and multi-channels of the amplifier module of
YME
SYSTEMS（2X1000@4Ω + 1X2500@4Ω）, 1 active VS 18BA can drive 2 2 pieces full range speakers (VS 12-4 or VS 15-4) and another passive bass speaker VS 15B. Better than the ordinary satellite system (one 1 sub only amplifying 2 passive full range speakers), VERSA active satellite system delivers more powerful low frequency in more affordable price.
Specifications
Brand
- YME Systems
Model
- VS 18BA
Series
- Versa Multipurpose Series
Frequency Response
- 45Hz--100Hz (±3dB); 35Hz--150Hz(-10dB)
Power Rating（AES）
- 800W
LF Driver
- 1x18" (100mm voice coil, ferrite)
Max. SPL
- 127dB SPL, 133dB SPL Peak
Dimensions （HxWxD）
- 468x545x600(mm)

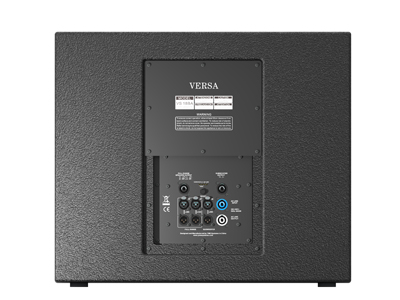

Connection
- XLR+POWERCON+SPEAKON
Enclosure
- 15mm, 18mm M ultilayer Plywood
Riggings
- M8 x 12 + M20 Mount
Finishing
- B lack water-based paint
Grille
- B lack steel mesh + acoustic transparent cloth; 3 Channels D Class Switching Power Amplifier Module
4Ω
- 1000W 1000W 2500W
THD(1kHz, Full Power 4 Ω)
- ≤ 1% ≤ 1% ≤ 1%
SNR
- 102.5dB 103dB 103dB
Gain (1Khz,8Ω)
- 20dB 32dB 32dB
Input Method
- N eutrik & XLR male & XLR Female
I nput Impedance
- 20K Ω Banlanced/10k Ω Unbalanced
Input Connection (Full Range)
- Neutrik NL4MP ( LF: 1+1-, HF: 2+2-)
Input Connection (Subwoofer)
- Neutrik NL4MP (SUB: 1+1- )
O utput Circuit Type
- Class D
Cooling
- T he airflow direction is from the back to the front of the equipment
Voltage
- 200-240V ~ 50-60Hz
Supplied by
- Pure Minds Trading Co. LLC, Dubai, UAE
