YME VS 8
SKU VS 8
Single 8" Passive Full Range Speaker. VS 8 is single 8” passive two way full range at 8Ω.
View on YME Systems siteOverview
VS 8 is single 8” passive two way full range at 8Ω. Rather than a normal coaxial driver, utilizing a creative design of coaxial structure – a 1.4”（36MM voice coil ）with 80° x 80° horn is placed onto a 8” （50MM voice coil）symmetrically, which makes VS 8 perform perfectly with not only accurate sound image and high fidelity but also powerful dispersion.
Thanks the multi-angle enclosure, VS 8 is suitable for use as stage monitor.The 4 nylon strips offer protection to the enclosure away from scratches.
Meanwhile,VS 8 comes up with various rigging and mounting options to meet the needs of most kinds of touring and installation applications.
VS 8 Can be pole-mounted on bass speakers (VS 15B | VS 15BA) as PA or satellite system.
Specifications
Brand
- YME Systems
Model
- VS 8
Series
- Versa Multipurpose Series
Frequency Response
- 90Hz--20kHz(±3dB); 70Hz--20KHz(-10dB)
LF Driver
- 1 x 8" woofer(75mm voice coil), Ferrite
HF Driver
- 1 x 1.75"(1" throat) Ferrite compression diver(36mm voice coil)
Nominal Coverage
- 80 ° x 80 °
Impedance
- 8 Ω
Sensitivity(@1w/1m)
- 93dB
Power Rating
- HF:40W, LF:250W
Max. SPL
- 117dB SPL , 123dB peak
Dimensions (H x W x D)
- 430 x 240 x 256 mm
Weight
- 11 kg
Riggings
- 7 x M8 points, dual pole mount

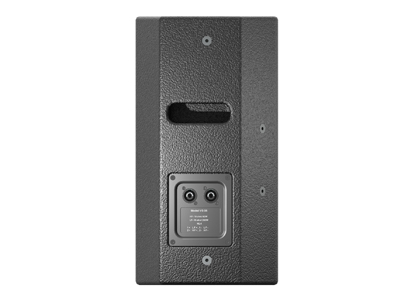

Connection
- 2 x Neutrik NL4MP, 1+1-
Enclosure
- 15mm, 18mm multilayer plywood
Finish
- Black water-based paint
Grille
- Black steel mesh + acoustic transparent cloth
Supplied by
- Pure Minds Trading Co. LLC, Dubai, UAE
