YME Systems
YME YG 12MA
SKU YG 12MA

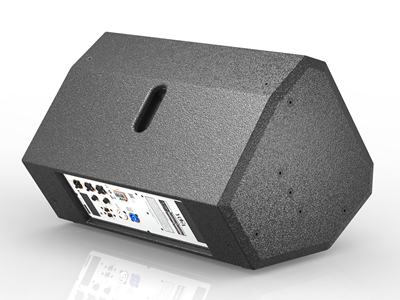

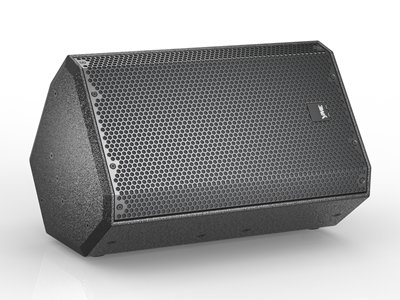

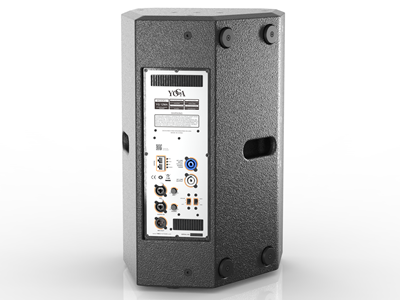

YME YG 12MA: single 12" multifunctional active fullrange speaker from the YOGA Line Array Series.
View on YME Systems siteOverview
The YME YG 12MA is part of the YME YOGA Line Array Series — single 12" multifunctional active fullrange speaker. Professional sound reinforcement from YME Systems, supplied and supported in the UAE by Pure Minds Trading, Dubai.
Specifications
Brand
- YME Systems
Model
- YG 12MA
Series
- YOGA Line Array Series
Frequency Response
- 75 Hz ~ 20kHz (±3 dB ); 50Hz ~ 20kHz (-10dB )
Power Rating
- HF:60W，Fullrange:450W
Impedance
- Hi:8Ω, Fullrange:4Ω
Max. SPL
- 122dB SPL，128dB SPL peak
Drivers
- HF:1.75" Ferrite compression diver; LF:12" woofer(75mm voice coil), Ferrite
Dimensions (H x W x D)
- 586×360×370(mm)
Weight
- 25kg
Riggings
- M8 points
Enclosure
- 15mm，18mm multilayer plywood
Finish
- Black polyurethane paint
Grille
- black steel mesh + acoustic transparent cloth
Single Channel Class D Switching Power Amplifier Module@4Ω
- 700W
Total Harmonic Distortion (1Khz, Full Power 4Ω)
- ≤0.5%
SNR
- 101.5dB
AUDIO IN Gain（1KHz 8Ω
- 30dB
MIC IN Gain（1KHz 8Ω）
- 52dB
Input
- XLR Input (Audio in/Mic in)
Input Impedance
- 20K Ω balanced / 10K Ω unbalanced
Output Circuit Type
- Class D
DSP
- Built-in DSP
Voltage Requirements
- 100V-120VAC/200-240VAC～50-60Hz
Supplied by
- Pure Minds Trading Co. LLC, Dubai, UAE
