YME Systems
YME YG 15MA
SKU YG 15MA

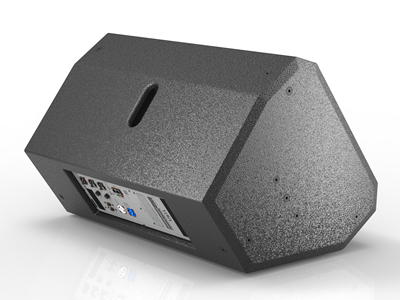

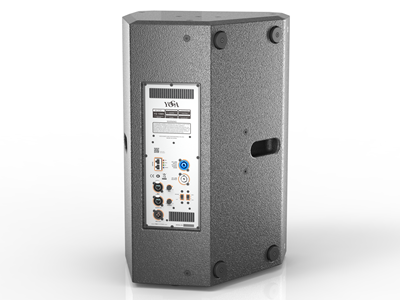

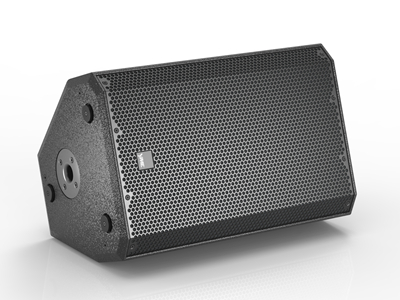

YME YG 15MA: single 15" multifunctional active fullrange speaker from the YOGA Line Array Series.
View on YME Systems siteOverview
The YME YG 15MA is part of the YME YOGA Line Array Series — single 15" multifunctional active fullrange speaker. Professional sound reinforcement from YME Systems, supplied and supported in the UAE by Pure Minds Trading, Dubai.
Specifications
Brand
- YME Systems
Model
- YG 15MA
Series
- YOGA Line Array Series
Frequency Response
- 65 Hz ~ 20kHz (±3 dB ); 45Hz ~ 20kHz (-10dB )
Power Rating
- Hi:60W, Fullrange:500W
Impedance
- Hi:8Ω, Fullrange:3Ω
Max. SPL
- 124dB SPL，130dB SPL peak
Drivers
- Hi:1.75"Ferrite compression diver; Low:15" (75mm voice coil), Ferrite
Dimensions (H x W x D)
- 666×426×380(mm)
Weight
- 30kg
Riggings
- M8 points
Enclosure
- 15mm，18mm multilayer plywood
Finish
- Black polyurethane paint
Grille
- black steel mesh + acoustic transparent cloth
Single Channel Class D Switching Power Amplifier Module@4Ω
- 700W
Total Harmonic Distortion (1Khz, Full Power 4Ω)
- ≤0.5%
SNR
- 101.5dB
AUDIO IN Gain（1KHz 8Ω
- 30dB
MIC IN Gain（1KHz 8Ω）
- 52dB
Input
- XLR Input (Audio in/Mic in)
Input Impedance
- 20K Ω balanced / 10K Ω unbalanced
Output Circuit Type
- Class D
DSP
- Built-in DSP
Voltage Requirements
- 100V-120VAC/200-240VAC～50-60Hz
Supplied by
- Pure Minds Trading Co. LLC, Dubai, UAE
