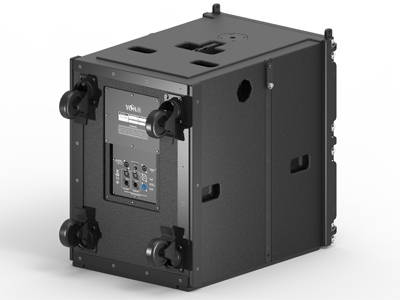

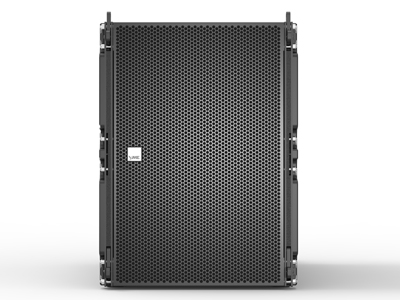

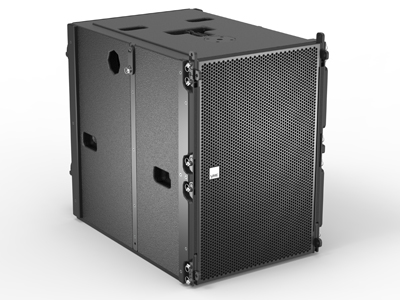

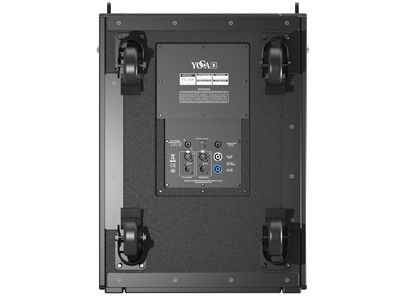

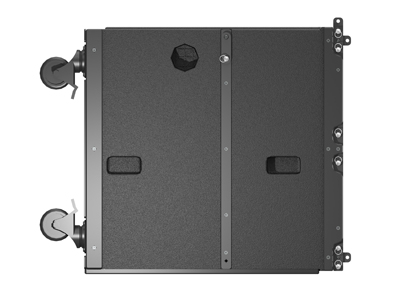

YME YG 30AD
SKU YG 30AD
Dual 15" Active Bass Speaker. YG 30AD is the active version of YG 30.
View on YME Systems siteOverview
YG 30AD is the active version of YG 30.
Thanks to the highly powerful multi-channels D class switching power amplifier module (1 X 1000W@4Ω + 2 X 2500W@4Ω), one active YG 30AD can drive maximum 4 pieces passive YG 75 line array speakers. The amplifier module is developed by exceptional analog circuit technology which is without unwanted DSP treatment. It delivers widely open and crystal clear sound. The built-in analog crossover and limiter make the system well-protected and truly plug and play.
Specifications
Brand
- YME Systems
Model
- YG 30AD
Series
- YOGA Line Array Series
Frequency Response
- 45Hz - 100Hz (± 3dB); 35Hz - 150Hz (-10dB)
Power Rating (AES)
- 1000W
LF Driver
- 2x15 "(100mm voice coil), Neodymium
Maximum SPL
- 129dB SPL, 135dB SPL peak
Dimensions (H x W x D)
- 747x556x785(mm)
Weight
- 71kg
Connection
- XLR+POWERCON+SPEAKON
Enclosure
- 15mm, 18mm, 24mm Multilayer birch plywood
Rigging
- Four fly points + pole mount
Finish
- Black polyurethane paintwork
Grille
- Black steel mesh + acoustic transparent cloth; Three- Channel Class D Switching Power Amplifier Module:
4Ω
- 1000W 2500W 2500W
Total Harmonic Distortion (1Khz, Full Power 4Ω)
- ≤ 1% ≤ 1% ≤ 1%
SNR
- 102.5dB 103dB 103dB
Active Gain (1KHz, 8Ω)
- 20dB 32dB 32dB
Input
- Neutrik & male XLR & female XLR
Input Impedance
- 20K Ω balanced / 10K Ω unbalanced
Input Connection (Full-Range)
- Neutrik NL4 (1+/1-: LF / 2+/2-: HF)
Input Connection (Sub)
- Neutrik NL4 (1+/1-: SUB)
Output Circuit Type
- Class D
Cooling
- The airflow direction is from the back to the front of the equipment
Voltage Requirements
- 200-240V ~ 50-60Hz
Supplied by
- Pure Minds Trading Co. LLC, Dubai, UAE
